Power Quality Meter Model 8220 (DISCONTINUED replaced by PEL102 Cat # 2137.51, PEL103 Cat #2137.52, PEL105 Cat # 2137.55/2137.59)

PowerPad® Jr. Model 8220 (DISCONTINUED replaced by PEL102 Cat # 2137.51 , PEL103 Cat #2137.52 , PEL105 Cat # 2137.55/2137.59)



The Model 8220 is a single-phase AC + DC power meter with an electroluminescent backlit digital display. It is a measurement tool for electrical parameters and distribution network disturbances, enabling the user to obtain instant measurements of the main characteristics of a single-phase network (voltage, current, power, voltage and current harmonics, etc.) and to monitor machinery in operation (temperature, inrush current and duration of operation, distance of windings and rotational speed).

The Model 8220’s accuracy is better than 1% (excluding current sensors). It has a great flexibility due to AEMC’s range of current sensors, measuring from a few hundred milliamps to several thousand amps. Rated to 600V CAT III.

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
8220 2130.90 Power Quality Meter Model 8220 (No Probe) (DISCONTINUED replaced by PEL102 Cat # 2137.51 , PEL103 Cat #2137.52 , PEL105 Cat # 2137.55/2137.59) $0.00 Discontinued
8220 2130.93 Power Quality Meter Model 8220 w/193-24-BK (DISCONTINUED replaced by PEL102 Cat # 2137.51 , PEL103 Cat #2137.52 , PEL105 Cat # 2137.55/2137.59) $0.00 Discontinued
8220 2130.96 Power Quality Meter Model 8220 w/MN193-BK (DISCONTINUED replaced by PEL102 Cat # 2137.51 , PEL103 Cat #2137.52 , PEL105 Cat # 2137.55/2137.59) $0.00 Discontinued
Model8220
Cat. #2130.90
DescriptionPower Quality Meter Model 8220 (No Probe) (DISCONTINUED replaced by PEL102 Cat # 2137.51 , PEL103 Cat #2137.52 , PEL105 Cat # 2137.55/2137.59)
List Price$0.00
Discontinued
Model8220
Cat. #2130.93
DescriptionPower Quality Meter Model 8220 w/193-24-BK (DISCONTINUED replaced by PEL102 Cat # 2137.51 , PEL103 Cat #2137.52 , PEL105 Cat # 2137.55/2137.59)
List Price$0.00
Discontinued
Model8220
Cat. #2130.96
DescriptionPower Quality Meter Model 8220 w/MN193-BK (DISCONTINUED replaced by PEL102 Cat # 2137.51 , PEL103 Cat #2137.52 , PEL105 Cat # 2137.55/2137.59)
List Price$0.00
Discontinued
Print

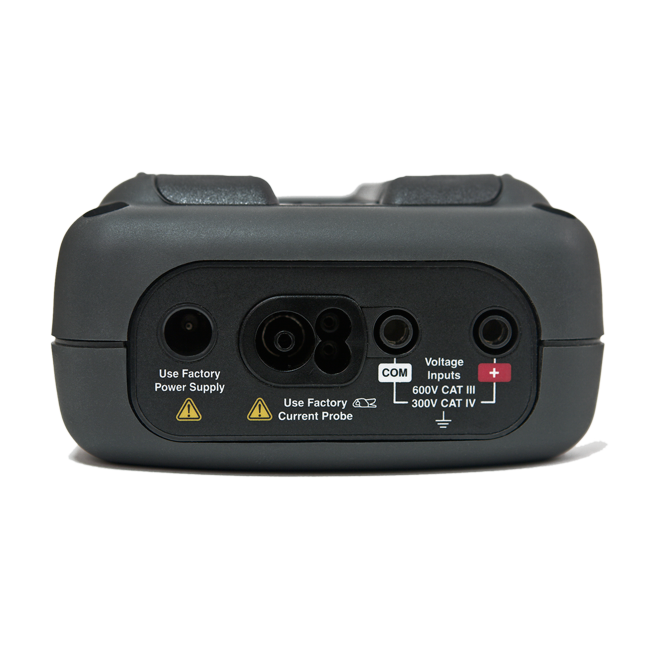

Inputs  1 Voltage / 1 Current
Sample Rate 256 per Cycle 12.8kHz at 50Hz 15.36kHz at 60Hz
Specification Range Measurement Range Resolution Accuracy (Typical)
Volt
Vrms (AC + DC) 600V 6 to 600V 0.1V ±0.5% Rdg + 2cts
Vpk 850V 6 to 850V 0.1V ±1% Rdg + 5cts
Vrms Half Cycle 600V 6 to 600V 0.1V ±0.8% Rdg + 5cts
Volt DC 600V 6 to 600V 0.1V ±1% Rdg + 5cts
Amps (accuracy excluding clamp accuracy)
Amps (AC + DC) Current probes 1.2 x Inom 0.1A & 1A ±0.5% Rdg + 2cts
AmpFLEX & MiniFlex  Range 6500A 10 to 9190A 0.1A & 1A ±1% Rdg  + 1A
Apk Current probes 1.7 x Inom 0.1A & 1A ±1% Rdg + 1A
AmpFLEX & MiniFlex  Range 6500A 10 to 9190A 0.1A & 1A ±1% Rdg  + 1A
A Half Cycle Current probes 1.2 x Inom 0.1A & 1A ±1% Rdg + 5cts
AmpFLEX & MiniFlex  Range 6500A 10 to 6500A 0.1A & 1A ±1.5% Rdg + 4A
DC current  MR193 probe 1 to 1700A 0.1A & 1A ±1% Rdg + 1A
Frequency 40 to 69Hz   0.01Hz ±1ct
Power
Watts (VA, var) P-Q-S 0W to 9999kW (kVA, kvar) 4 digits minimum ±1% Rdg cosΦ ≥ 0.8
Power Factor (Cos Φ/DPF) -1  to 1 0.001 ±1.5% Rdg  cosΦ ≥ 0.5
Energy
kWh (kVAh, kvarh) P-Q-S 0.1Wh to 9999MWh  (kVAh, kvarh) ±1% Rdg
Harmonics DC, 1 to 50
Volts >50V & Amps Inom ÷ 10

f

 0.0 to 999.9% 0.1% ±1% Rdg + 5cts
Volts >50V & Amps Inom ÷ 10

r

 0.0 to 99.9% 0.1% ±1% Rdg + 5cts
K Factor   1 to 99.99 0.01 ±1% Rdg + 5cts
Displacement  Factor (DPF) -1 to +1 0.001 ±1° Rdg + 5cts
Rotation Speed 6 to 120kRPM 0.1 to 100RPM ±0.5% Rdg
Temperature -328.0 to 1562°F
(-200.0 to 850°C)  		 0.1 to 1°F
(0.1°C)		 ±1.8% Rdg + 2°F (±1% Rdg + 1°C )
Resistance 0 to 2000Ω 1Ω ±1.5% Rdg + 2cts
General Features
Phase rotation Yes
Inrush Current Yes
Snapshot Up to 9 photographs (screen BMP + all channels data)
Interface Isolated USB, for direct transfer to PC. Dataview software for real time data, configuration and reporting included
Memory Flash memory for screen captures and Inrush current
Display Large LCD
Power Supply 6 x AA alkaline batteries ≥40Hrs
Dimensions (L x W x H) 8.3 x 4.3 x 2.4” (211 x 108 x 60mm)
Weight 1.94 lbs (880g)
Altitude Operating 2000m (6560ft)
Operating Temperature 32° to 122°F (0°C to 50°C) ≤75% RH
Storage Temperature -4° to 158°F (20°C to +50°C) ≤85% RH
IP Rating IP54 per IEC 60529
Safety IEC/EN 61010-1 (600V CAT III), IEC 1326-1

User Manuals

Model 8220

Model 8220 - Español (CA France version)

Model 8220 - French (CA France version)

Datasheets

Model 8220 - English

Modelo 8220 - Español

Brochures

Power Quality

Comparison Charts

Power Analyzer - Current Probe Selection Chart

Power Quality Analyzer Comparison Chart - English

Power Quality Analyzer Comparison Chart - Español

Power Quality Analyzers and Loggers Sensor Compatibility

Software

DataView® Software

White Papers

For Electrical Power, Quality Matters

Firmware

Power Meter Model 8220 - Firmware

Videos

What's New in DataView 3.50

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
SL261 1201.51 AC/DC Current Probe Model SL261 $494.00
2119.48 Multi-purpose Canvas Pouch for Clamp-on Meters, Clamp-on Ground Testers, Power Meters Model 8220 & 8230
Dimensions: 11 x 5 x 2.25") 		$39.00
2133.72 Small Classic Tool Bag for field use.
12 Exterior and 14 Interior pockets
Dimensions: 13.0 x 9.8 x 9.5" 		$36.00
2135.41 Optical USB Cable – Replacement for Models 6240, 6470/6470-B, 6471, 6472, 6550 ,6555, 8220, 8230 & MTX 328x Series $69.25
MR193-BK 2140.28 AC/DC Current Probe Model MR193-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435 & PEL Series $489.00
MN93-BK 2140.32 AC Current Probe Model MN93-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 $240.00

193-24-BK 		2140.34 AmpFlex® Sensor 24" Model 193-24-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $320.00

193-36-BK 		2140.35 AmpFlex® Sensor 36" Model 193-36-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435 & PEL Series $370.00
MN193-BK 2140.36 AC Current Probe Model MN193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 $329.00
2140.40 Adapter - BNC Adapter for use with AC/DC Current Probe Model SL261, 8220, 8333, 8335, 8336 & 8436 $145.00
2140.43 Set of 5, Black 10 ft (3M) with 5 Black Alligator Clips, Replacement for Models 8333, 8335, 8336 & 8345 {Leads rated 600 V CAT IV 10 A, Clips rated 1000 V CAT IV 15 A, UL} $128.00
MA193-10-BK 2140.48 MiniFlex® Sensor 10" Model MA193-10-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $275.00
2140.50 2140.50 MiniFlex® Sensor 14" Model MA193-14-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $299.00
MA194-24-BK 2140.80 MiniFlex® Sensor Model MA194-24-BK (Replaces Cat. #2140.78) for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $330.00
5000.43 Probe - set of 2, color-coded (red/black) magnetized voltage probes (Rated 600V CAT IV, 1000V CAT III) for models 3945-B, 8220, 8230, 8333, 8335, 8336, 8435, 8436, and PEL series (or any lead that accepts a 4mm safety banana plug) $36.75
