Data Loggers

Why Choose AEMC^® Instruments Data Loggers?

AEMC^® Instruments data loggers are versatile, powerful and cost-effective.
We offer single, dual, four, and eight channel data loggers to address a wide range of applications, both for general and special-purposes such as temperature, humidity, voltage, thermocouple, and events.
Simple to use, operation in a few minutes
Includes software for analyzing and reporting the recorded data
Models available with remote access via the internet

Cost Effective & Quick Ship

Our data loggers are built with exceptional quality for a great value and we offer a fast delivery of one week (in-stock).

Key Features (model specific)

Programmable storage modes and rates
Accurate representation of measured signals for AC models
Stores over 240,000 measurements ensuring no valuable data is missed with more than 8 hours at 8 samples per second
Easily installed anywhere quickly – operational in seconds
Compact and runs on alkaline batteries
Wireless (Bluetooth) or USB communication
Comprehensive DataView graphing, analysis and report generation software
Display and analyze real-time data on your PC
and more...

AEMC Dataloggers Measure a Wide Variety of Applications

Assists electricians and engineers in finding problems that occur randomly in fault/intermittent current detection
Neutral current monitoring finds unwanted leakage currents
Harmonic real-time current monitoring
Load profiling which size loads for proper transformer and meter selection
Process loops monitoring – finds troubled sensors and controls
HVAC and general temperature
and more...

Compatible Current Probes and Accessories

There are many compatible current probes available as accessories for select models.

Tech Support

AEMC provides complete technical support through our technical hot line 800-945-2362 (ext.351). Speak directly to one of our tech support team members or e-mail your questions to our tech team techsupport@aemc.com

Data Loggers

NOTE: Select the product below to see which Cat. #'s within the Product's Family have been discontinued.

Data Logger Model DL-1081

Cat. #2134.62
8 Analog & 8 Digital Channel, Display
Eight channel data logger for measuring analog, digital and other types of data with high resolution and speed. Up to 128 math channels can be used to perform operations on the measured values. Up to 32 alarm events can be detected, allowing output activations, e-mails, and SNMP trap sending. RS485 interface can operate as a Modbus RTU master or slave. A 10/100Mbps Ethernet interface allows access through a browser HTTP, FTP client and server, e-mails sending SMTP, SNMP, and Modbus TCP.

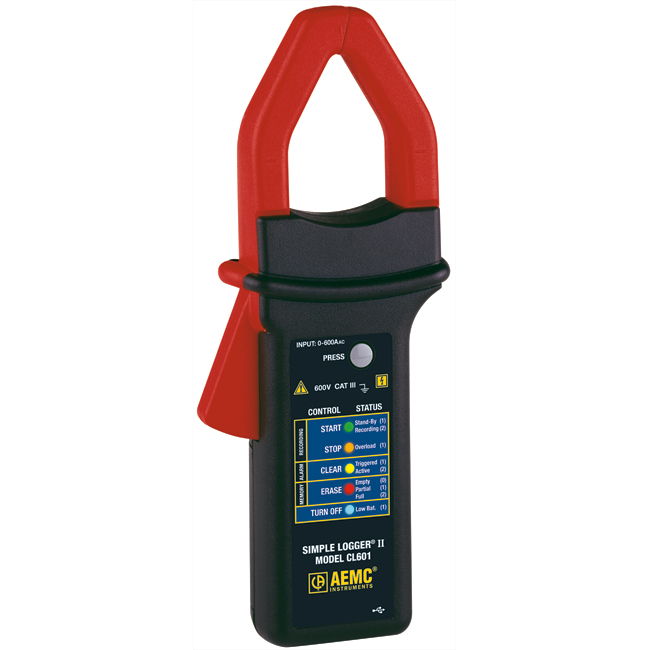

Simple Logger^® II Model CL601

Cat. #2126.01
1-Channel, TRMS, Clamp-on, 0 to 600A_AC, DataView^® Software
One channel recording device that performs line tracking by taking 64 samples over one line cycle. Performs frequency tracking over the range of ±2Hz around the nominal line frequency 50 or 60Hz. Records TRMS at a rate of up to eight times per second. Performs a variety of recording tasks with easy and intuitive setup from a computer using the free DataView^® software (included).
Simple Logger^® II Model L562 (Discontinued)

Cat. #2126.35
2-Channel, TRMS, Voltage & Current, DataView^® Software
Two channel voltage/current data logger. Features include Extended Recording Mode (XRM^®) and delayed start time. Records TRMS at a rate of up to eight times per second. TRMS calculations are performed on a single line cycle. Includes easy and intuitive setup from a computer using DataView^® software.
Simple Logger^® II Model L101

Cat. #2126.02
1-Channel, TRMS, 0 to 1V_AC, DataView^® Software
One channel recording device that performs line tracking by taking 64 samples over one line cycle. Harmonic measurements are calculated from these 64 samples. Records TRMS at a rate of up to eight times per second. TRMS calculations are performed on a single line cycle.
Simple Logger^® II Model L102

Cat. #2126.03
2-Channel, TRMS, 0 to 1V_AC, DataView^® Software
Two channel recording device that performs line tracking by taking 64 samples over one line cycle. Harmonic measurements are calculated from these 64 samples. Frequency tracking is performed over the range of ±2Hz around the nominal line frequency 50 or 60Hz. Records TRMS at a rate of up to eight times per second. TRMS calculations are performed on a single line cycle. Features easy and intuitive setup from a computer using DataView^® software.

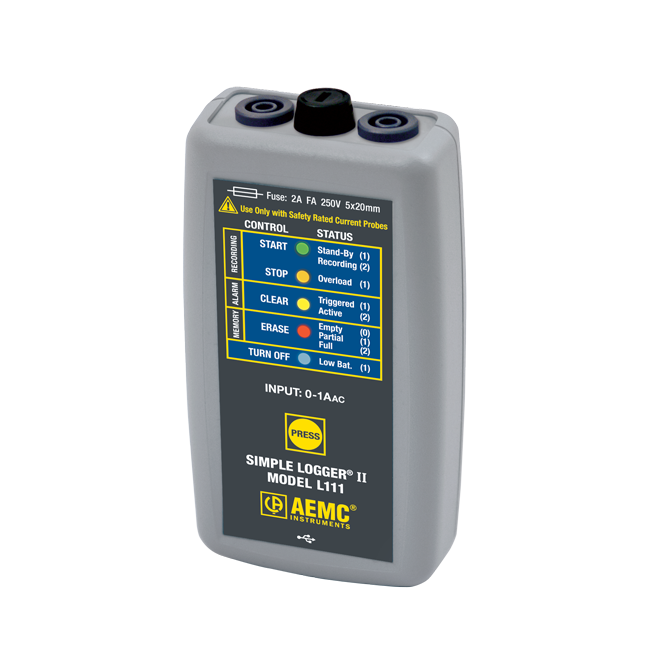

Simple Logger^® II Model L111

Cat. #2126.04
1-Channel, TRMS, 0 to 1AAC, DataView Software (Discontinued)
Simple Logger^® II Model AL834

Cat. #2126.14
4-Channel, TRMS, Bluetooth, AmpFlex^® 300/3000A_AC, DataView^® Software
Four channel AC current data logger with four integral flexible 24” current sensors. Two measurement ranges of up to 300A and 3000A. Data logger housing and current sensors are rated IP 65 for water resistance. Up to 1,000,000 measurements can be stored in internal nonvolatile memory. Includes easy and intuitive setup from a computer using DataView software.
Simple Logger^® Model SL01

Cat. #2156.01
Simple Logger^® Model SL01 (Low voltage, 5VAC)

Simple Logger^® II Model L264

Cat. #2126.23
4-Channel, TRMS, Bluetooth, 600V_AC/DC, DataView^® Software
Four channel AC/DC voltage logger for directly measuring up to 600V_AC/DC. Harmonic measurements are calculated from 64 samples taken on each AC cycle measured. Stores TRMS measurements at user programmable rates from eight times per second to one per day; TRMS calculations are performed on a single line cycle. Includes easy and intuitive setup from a computer using DataView software.

Simple Logger^® II Model L481

Cat. #2126.25
1-Channel, DC, ±850V, DataView^® Software
Single channel bipolar DC logger for measuring voltage –850 to +850V_DC. Features include Extended Recording Mode (XRM^®) and delayed start time. Up to 240,000 measurements can be stored in internal memory. User programmable scale and engineering units are available. Includes easy and intuitive setup from a computer using DataView software.

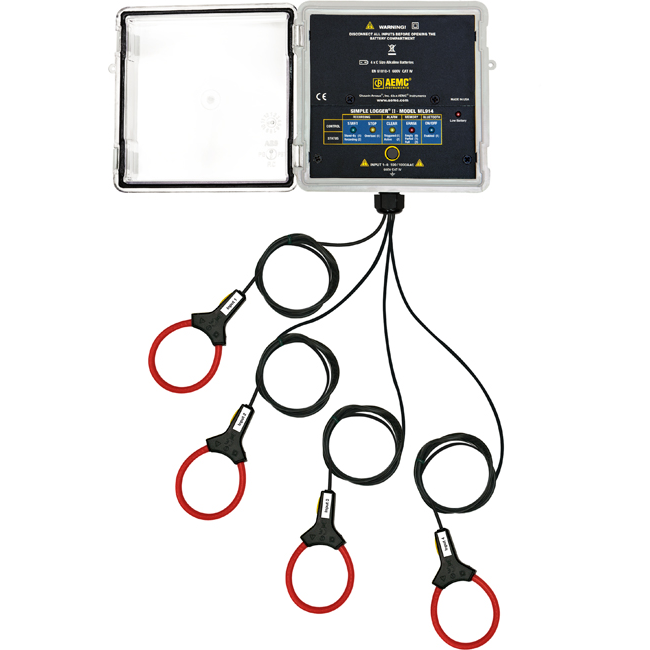

Simple Logger^® II Model ML914

Cat. #2126.40
4-Channel, TRMS, Bluetooth, MiniFlex^®, 100/1000A_AC, DataView^® Software
Four channel AC current logger that measures in two user selectable ranges (100A and 1000A). Line tracking takes 64 samples over one line cycle; harmonic measurements are calculated from these 64 samples. Frequency tracking is performed around the nominal line frequency 50 or 60Hz. Stores TRMS at user programmable rates of up to eight times per second. TRMS calculations are performed on a single line cycle. Includes four integral 6" MiniFlex^® flexible current probes. Includes easy and intuitive setup from a computer using DataView^® software.

Simple Logger^® II Model L564

Cat. #2126.36
4-Channel, TRMS, Bluetooth, Voltage & Current, DataView^® Software
(Discontinued)

Simple Logger II Model L404

Cat. #2126.29
4-Channel, TRMS, 0 to 1VAC, DataView^® Software
(Discontinued, replaced by Model L452)

Simple Logger^® II Model L104

Cat. #2126.10
4-Channel, TRMS, Bluetooth, 0 to 1VAC, DataView^® Software
(Discontinued)

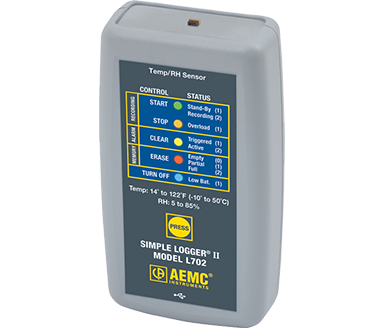

Simple Logger^® II Model L702

Cat. #2126.09
2-Channel, Temp/RH, DataView^® Software
(Discontinued)

Data Logger Model DL-1080 (Discontinued - no replacement)

Cat. #2134.61 - Model DL-1080 (Discontinued - no replacement)

Simple Logger^® II Model ML912 (Discontinued replaced by Cat.#2153.61)

Cat. #2126.37Simple Logger^® II Model ML912 (Discontinued replaced by Cat.#2153.61)

Hide Discontinued Products
