Model | Cat. # | Description | List Price | Quantity/Status |
---|---|---|---|---|

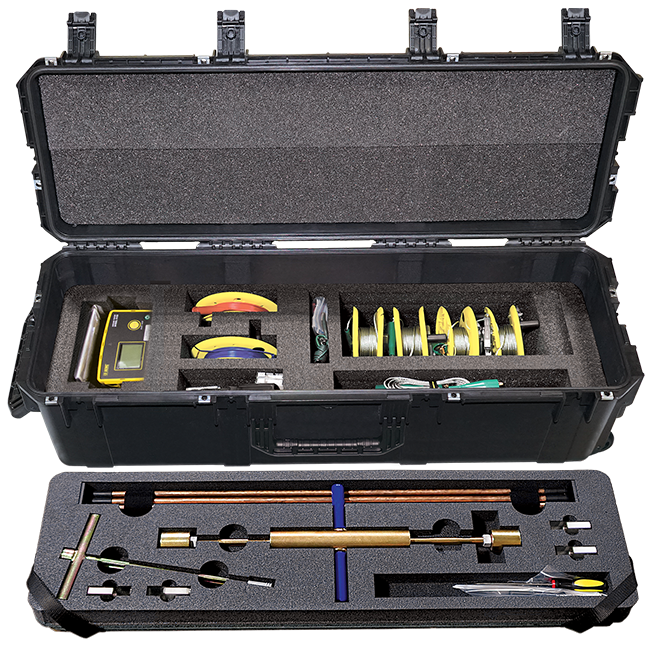

Static Ground and Bond Test System Kit | 2155.01 | Static Ground and Bond Test System Kit | $0.00 | Consult Factory for Availability |
|
Ground Resistance (2P Mode) | ||||
Measurement Range | 0.05-99.99Ω | 80.0-999.9Ω | 0.800-9.999kΩ | 8.00-50.00kΩ |
Resolution | 0.01Ω | 0.1Ω | 1Ω | 0Ω |
Intrinsic Uncertainty | ± (2%R + 10 ct) | ± (2%R + 2 ct) | ±(2%R + 1 ct) | ±(2%R + 1 ct) |
Ground Resistance (3P Mode) | ||||
Measurement Range | 0.50-99.99Ω | 80.00-999.99Ω | 0.800-2.000kΩ | – |
Resolution | 0.01Ω | 0.1Ω | 1Ω | – |
Intrinsic Uncertainty | ± (1%R + 10ct) | ± (1%R + 2ct) | ± (1%R + 1ct) | – |
Measurement Frequency | 128Hz or 256Hz (automatically selected) | |||
No-load Voltage | ±10 V peak | |||
Maximum Test Current | 20mA | |||
Measurement Mode | One shot or continuous | |||
GENERAL | ||||
Display | Backlit LCD | |||
Measurement Mode | 2P (Ω), 3P (Ω) | |||
Power Supply | (6) AA Alkaline batteries | |||
Battery Life | > 2,000 x 3P earth measurements at 100 Ω | |||
Dimensions | 8.78 x 4.96 x 2.75" (223 x 126 x 70mm) | |||
SAFETY | ||||
Safety Ratings | EMC: IEC 61326-1; IEC 61010-2-030 / 600 V CAT IV |
