• Product meets ETL established electrical standards.

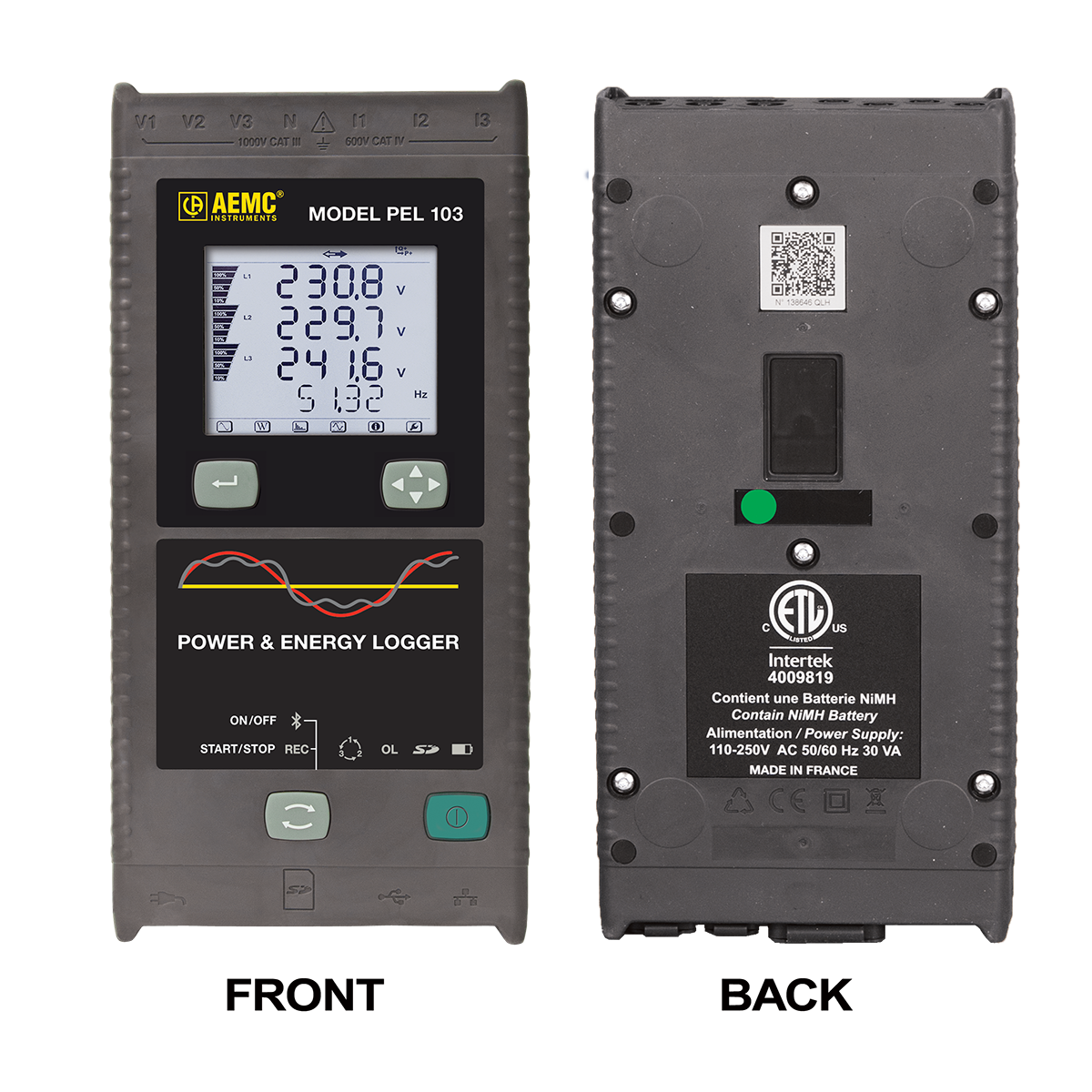

Power & Energy Logger Model PEL 103

The PEL 103 is a low cost, simple to use, single-, split-, and three- phase power/energy data logger. This product is ideal for electricians, engineers and contractors doing work in the area of building and system monitoring and upgrades, as well as residential and overall energy audits. All vital energy data is easily measured, recorded, and analyzed. Reports can be generated with confidence with minimal configuration time and effort (Standard and Customizable Reports supplied).

The instrument’s design enables it to be installed inside a load center panel (including the current sensors) allowing the door to close on most panels. The PEL 100 series offers all the essential functions for logging power/energy data from most electrical power networks in use today across the world (17 network set-ups provided). The PEL 100 series energy loggers measure and record three True RMS voltage inputs and current inputs, Watts, VARS, VA and Energy (kWh and kVA). Power Factor (PF), Displacement Power Factor (DPF), Crest Factor, Frequency and THD are calculated and recorded as well. Individual harmonic % information from 1 to the 50th harmonic are recorded at the operator’s choice. All variables are recorded and stored at a one second interval and on user selectable demand intervals from 1 to 60 minutes.

The PEL 103 comes either with or without sensors, see model options and descriptions below.

The PEL Family of Loggers Android Application

Download the Chauvin Arnoux® PEL Android application to remotely configure and see measurements of your PEL instruments in real time on an Android device.



360° View with Hotspots

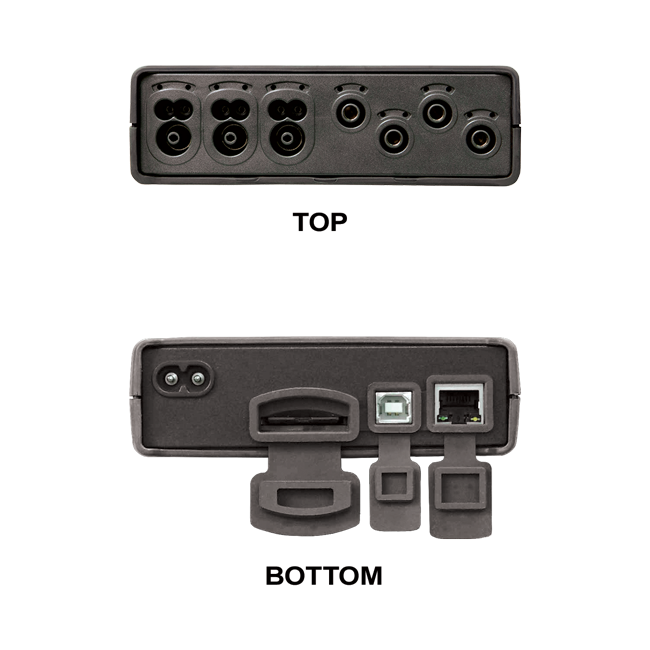

Check out the PEL 103 instrument in a 360° rotation showing the top and bottom inputs terminals and ports.

360° View with Hotspots



NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
PEL 103 2137.52 Power & Energy Logger Model PEL 103 (includes LCD, and three MA193-10-BK Sensors) $2,495.00 In stock at factory. Find a Distributor
PEL 103 2137.62 Power & Energy Logger Model PEL 103 (Includes LCD. Does not include sensors) $1,975.00 Consult Factory for Availability
ModelPEL 103
Cat. #2137.52
DescriptionPower & Energy Logger Model PEL 103 (includes LCD, and three MA193-10-BK Sensors)
List Price$2,495.00
In stock at factory. Find a Distributor
ModelPEL 103
Cat. #2137.62
DescriptionPower & Energy Logger Model PEL 103 (Includes LCD. Does not include sensors)
List Price$1,975.00
Consult Factory for Availability

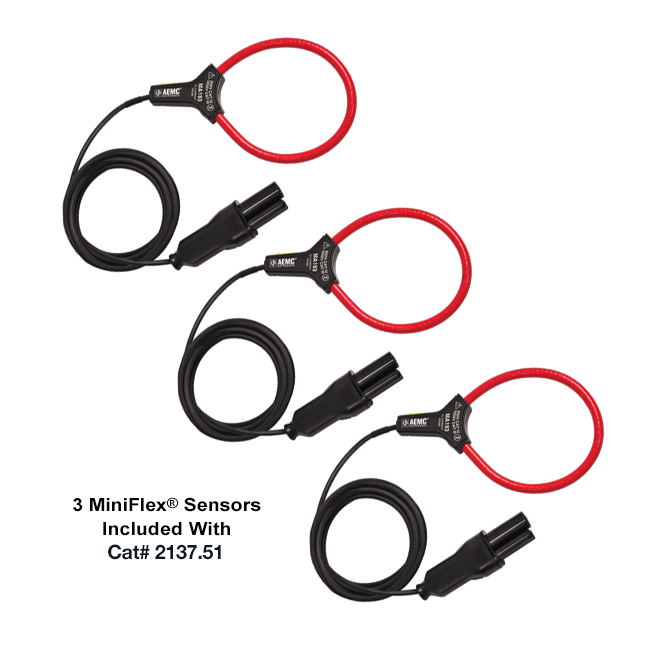

Model PEL 103 - Cat. #2137.52 (LCD, with sensors): Includes small classic tool bag, (3) MiniFlex® MA193-10-BK sensors, 5 ft USB cable, (4) black test leads and alligator clips, 5 ft 115 V power cord, (12) color-coded ID markers, safety and compliance sheets, 8 GB SD-Card with USB-SD-Card reader, printed Quick Start Guide, and USB drive with DataView® software and a user manual.

Model PEL 103 - Cat. #2137.62 (LCD, without sensors): Includes small classic tool bag, 5 ft USB cable, (4) black test leads and alligator clips, 5 ft 115 V power cord, (12) color-coded ID markers, safety and compliance sheets, 8 GB SD-Card with USB-SD-Card reader, printed Quick Start Guide, and USB drive with DataView® software and a user manual.

Print
Inputs  3 Voltage / 3 Current: calculation of neutral current
Sample Rate 128 per Cycle 6.4 kHz at 50 Hz 7.68 kHz at 60 Hz
Specification Range Measurement Range Resolution Accuracy (Typical)
Volt
Vrms 1000 V P to N (10 to 1000) V 0.1 V ± 0.2 % Rdg + 0.2 V
Urms 1000 V P to P (17 to 1700) V 0.1 V ± 0.2 % Rdg + 0.4 V
Amps @ 50 and 60Hz
Amps (1V nominal)
(excluding clamp accuracy
Probe dependent 0.2 %< I < 120 % Inom Probe dependent ±0.2 % Rdg + 0.02 % Inom
AmpFLEX & MiniFlex
(including sensor accuracy)
Range 100 A
Range 400 A
Range 2 kA
Range 10 kA
200 mA to 120 A
(5 to 440) A
(50 to 2400) A
400 A to 12 kA
1 mA
0.1 A
(0.1 and 1 A)
1 A
± 1.2 % Rdg + 50 mA
± 1.2 % Rdg + 0.2 A
± 1.2 % Rdg + 1 A
± 1.2 % Rdg + 5 A
Frequency   (42.5 to 69) Hz 0.01 Hz ±0.1 Hz
Power
Watts (VA, var) P-Q-S 10 W to 10 GW / 10 var to 10 Gvar / 10 VA to 10 GVA 4 digits min ± 0.5 % Rdg + 0.005 % Pnom
Power Factor (Cos Φ/DPF) -1  to 1 0.001 ±0.05
Energy
kWh (kVAh, kvarh) P-Q-S Up to 4 EWh / 4 Evarh / 4 EVAh (E = 1018 ) ± 0.5 % Rdg
Harmonics DC, 1 to 50
Volts & Amp %   (0.01 to 655.0) % 0.01 % ± 1 % Rdg from 1 to 25
THD   (0.00 to 655.0) % 0.01 % ± 1 % Rdg
General Features
Case Design Rugged, shock proof with integrated protective holster, IP54 not included terminals. Shock and vibration IEC61010
Interface Isolated USB, Bluetooth, and Ethernet, SD card for direct transfer to PC. Dataview software for real time data, configuration and reporting included
Memory 8 GB SD card (SDHC compliant, FAT32 formatted)  32 GB max
Display LCD with backlight
Real-Time Clock Time and date stamp for Trend mode
Power AC (110/230) V (50/60) Hz 15 VA; Battery backup when power OFF, 60 mintypical
Dimensions (L x W x H) (10.08 x 4.92 x 1.46) in (256 x 125 x 37) mm
Weight 2.2 lbs (1 kg)
Altitude Operating 2000 m (6560 ft)
Operating Temperature (32 to 108.5) °F; (0 to 42.5) °C from (10 to 85) % RH
Storage Temperature (-4 to 122) °F; (-20°C to 50) °C from (0 to 75) % RH with battery pack
Electro-Magnetic-Compatibility (EMC) EN 61326-1 for emission and immunity
IP Rating IP54 per IEC 60529
Safety IEC/EN 61010-1 (1000 V CAT III-600 V CAT IV), IEC 1326-1
