Power & Energy Logger Model PEL 105

AEMC’s Model PEL 105 is a simple to use, power and energy data logger that monitors both traditional and renewable energy sources. It monitors and records True RMS voltage and current, power, energy, cost and harmonics locally or from anywhere in the world. The PEL 105 is built into a waterproof case with an IP67 rating designed for outdoor use and is ideal for pole mounting and can be powered from a phase being monitored. This product is perfect for electricians, engineers and contractors doing work in the areas of building and system monitoring and upgrades, including compliance to article 220.87 of the NEC, as well as overall energy audits and incoming power monitoring. It is available with an Android™ App to configure, view and capture data wirelessly. Bluetooth and Wi-Fi wireless communication provides the operator with the ability to work from a safe distance away from dangerous voltages and currents.

The PEL Family of Loggers Android Application

Download the Chauvin Arnoux® PEL Android application to remotely configure and see measurements of your PEL instruments in real time on an Android device.


NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
PEL 105 2137.57 Power & Energy Logger Model PEL 105 (No Sensors - Waterproof IP67) $4,090.00 In stock at factory. Find a Distributor
PEL 105 2137.59 Power & Energy Logger Model PEL 105 w/4 196A-24-BK AmpFlex® Sensors (Waterproof IP67) $5,245.00 Consult Factory for Availability
ModelPEL 105
Cat. #2137.57
DescriptionPower & Energy Logger Model PEL 105 (No Sensors - Waterproof IP67)
List Price$4,090.00
In stock at factory. Find a Distributor
ModelPEL 105
Cat. #2137.59

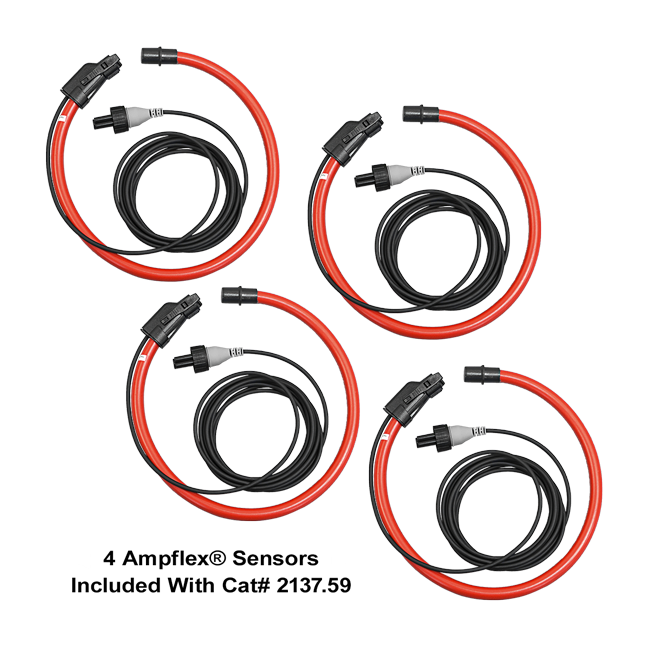

DescriptionPower & Energy Logger Model PEL 105 w/4 196A-24-BK AmpFlex® Sensors (Waterproof IP67)
List Price$5,245.00
Consult Factory for Availability

Model PEL 105 - Cat. #2137.57 (no sensors): Includes large classic tool bag, 5 ft USB cable, (5) black voltage test leads (with watertight cap) and alligator clips, power adapter 110/240V w/ US power cord, (12) color-coded ID markers, 8 GB SD-Card installed, USB-SD-Card adapter, 9.6V NiMH battery installed, printed quick start guide, high-voltage safety card, and USB drive with DataView® software and user manual.

Model PEL 105 - Cat. #2137.59 (with sensors): Includes large classic tool bag, (4) water-tight 24" AmpFlex® A196-24-BK sensors, 5 ft USB cable, (5) black voltage test leads (with watertight cap) and alligator clips, power adapter 110/240V w/ US power cord, (12) color-coded ID markers, 8 GB SD-Card installed, USB-SD-Card adapter, 9.6V NiMH battery installed, printed quick start guide, high-voltage safety card, and USB drive with DataView® software and user manual.

Print

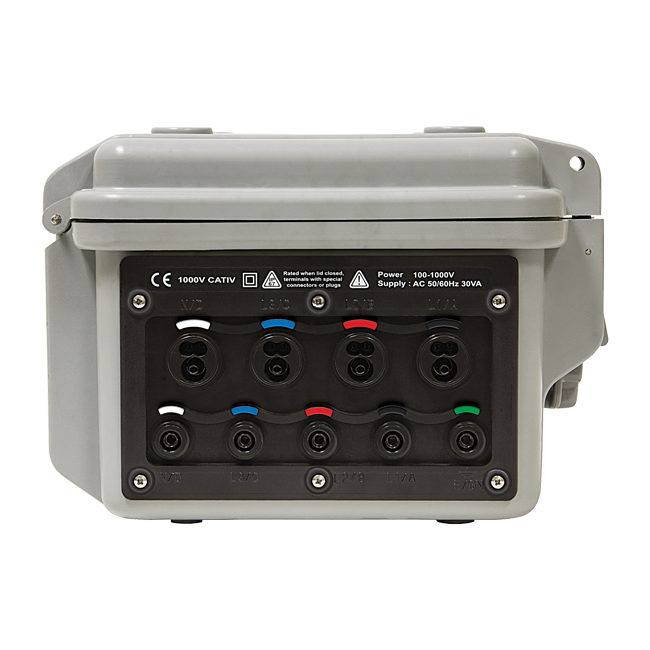

Inputs  5 Voltage / 4 Current
Sample Rate 128 per Cycle 6.4kHz at 50Hz 7.68kHz at 60Hz
Specification Range Measurement Range Resolution Accuracy (Typical)
Volt
Vrms 1000V P to N 10 to 1000V 0.1V ±0.2% Rdg +0.2V
Vrms 1000V E to N 10 to 1000V 0.1V ±0.2% Rdg +0.2V
Urms 1000V P to P 17 to 1000V 0.1V ±0.2% Rdg + 0.4V
Amps @ 50 and 60Hz
Amps (1V nominal)
(excluding clamp accuracy
Probe dependent 0.2%< I < 120% Inom Probe dependent ±0.2% Rdg + 0.02% Inom
AmpFLEX & MiniFlex
(including sensor accuracy)
Range 100A
Range 400A
Range 2kA
Range 10kA
200mA to 120A
5 to 440A
50 to 2400A
400A to 12kA
1mA
0.1A
0.1A & 1A
1A
±1.2% Rdg + 50mA
±1.2% Rdg + 0.2A
±1.2% Rdg + 1A
±1.2% Rdg + 5A
Frequency   42.5 to 69Hz 0.01Hz ±0.1Hz
Power
Watts (VA, var) P-Q-S 20W to 20GW / 20var to 10Gvar / 20VA to 10GVA 4 digits min ±0.5% Rdg + 0.005% Pnom
Power Factor (Cos Φ/DPF) -1  to 1 0.001 ±0.05
Energy
kWh (kVAh, kvarh) P-Q-S Up to 4EWh / 4Evarh / 4 EVAh (E = 1018 ) ±0.5% Rdg
Harmonics DC, 1 to 50
Volts & Amp %   0.01 to 655.0% 0.01% ±1% Rdg from 1 to 25
THD   0.00 to 655.0% 0.01% ±1% Rdg
General Features
Case Design Rugged field case
Interface Isolated USB, Bluetooth, and Ethernet, Wi-Fi, SD card for direct transfer to PC. Dataview software for real time data, configuration and reporting included
Memory 8GB SD card (SDHC compliant, FAT32 formatted)  32GB max
Display LCD with backlight 4.2 x 3.3” (107 x 84mm)
Real-Time Clock Time and date stamp for Trend mode
Power Phase to phase or phase to neutral 100 to 1000VAC or external power pack 110V/230V 50/60Hz 15VA; Battery backup when power OFF, 60 minutes typical
Dimensions (L x W x H) 9.65  x 10.6 x 7.1” (245 x 270 x 180mm)
Weight 8.9 lbs (4kg)
Altitude Operating 2000m (6560ft)
Operating Temperature 32° to 108.5°F; (0° to +42.5°C) from 10 to 85% RH
Storage Temperature -4° to 122°F; (-20° to +50°C) from 0 to 75% RH with battery pack
Electro-Magnetic-Compatibility (EMC) EN 61326-1 for emission and immunity
IP Rating IP 67 per IEC 60529
Safety IEC/EN 61010-1 (1000V CAT IV Pol 4)
