Fault Mapper Pro® Model CA7027

The Fault Mapper Pro® Model CA7027 is a hand-held graphical TDR Time Domain Reflectometer designed for identifying and locating faults on power and communication cables, given access to one end only.

The Fault Mapper Pro® measures cable length and indicates the length and distance to cable faults to a range of 9 to 19,000' (3 to 6000m) on virtually any type of cable. It injects a series of pulses into the cable under test. The velocity at which the pulses travel is determined by the type of cable, which is known as the velocity of propagation (Vp) of the cable. The Velocity of Propagation is adjustable between 1% and 99%, enabling accurate calibration to the cable under test.

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
CA7027 2127.84 Fault Mapper Pro® Model CA7027 $999.00 In stock at factory. Find a Distributor
ModelCA7027
Cat. #2127.84
DescriptionFault Mapper Pro® Model CA7027
List Price$999.00
In stock at factory. Find a Distributor

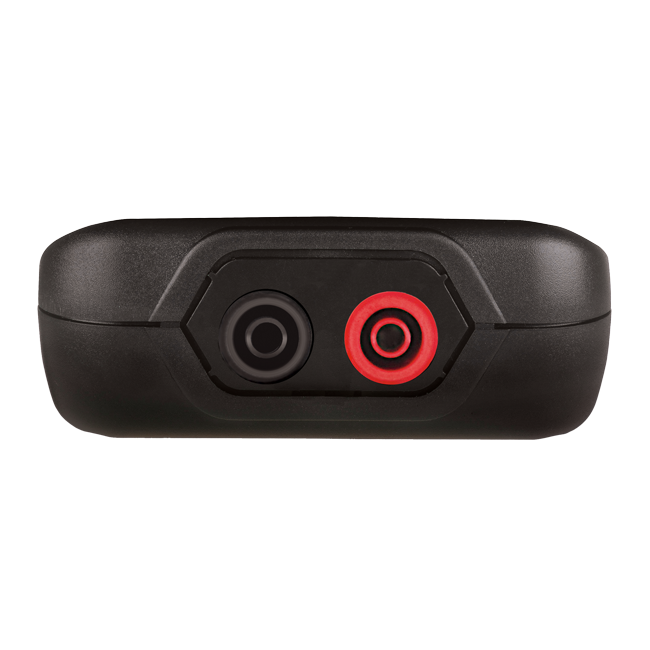

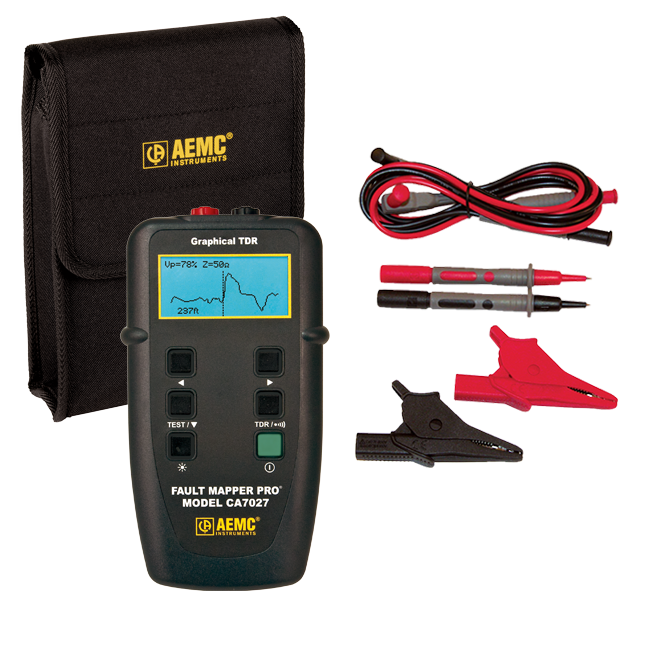

Model CA7027 - Cat. #2127.84: Includes a soft carrying case, set of (2) color-coded 4 ft (red/black) leads, test probes, alligator clips, (4) 1.5V AA batteries and a user manual.

Print
Range (@ Vp=70%) 23, 49, 98, 197, 394, 820, 1640, 3280, 6560, 9850, 19000 ft
(manual range control)
Accuracy 1% ± of Range
Resolution Approximately 1% of selected range
Minimum Cable Length 1.5 ft (0.5m)
Velocity of Propagation (Vp) Adjustable from 1 to 99%
Output Pulse 5V (peak to peak) into open circuit
Output Impedance 25, 50, 75, 100Ω (selectable)
Scan Rate 2 scans/second or scan held
Display Resolution 128x64 pixel graphical LCD
Backlight Blue electroluminescent
Tone Generator Oscillating 810 to 1110Hz
Tone Receiver/Cable Tracer Model TR03- Available as an accessory (not included)
Voltage Protection 250VAC
Power Source 4 x 1.5V AA alkaline batteries (included)
Auto Power Off Selectable 1 ,2 ,3, 4 minutes or disabled
Dimensions 6.5 x 3.5 x 1.5” (165 x 90 x 37mm)
Weight 12 oz (350g)
Operation Temperature                14 to 122°F (-10° to 50°C)
Storage Temperature -4 to 158°F (-20 to 70°C)
Ingress Protection (IP) Rating IP54
EMC EN 61326-1
Safety Compliance IEC 61010-1, EN 60950

User Manuals

Model CA7027

Datasheets

Model CA7027 - English

Modelo CA7027 - Español

Brochures

Cable Testers

AEMC® Instruments Product Line Brochure

AEMC® Instruments Product Line Brochure (FR CAN)

Application Notes

The Importance of a Structured Cabling Tester

Velocity of Propagation (Vp)

What is a TDR?

Technical Bulletins

Watts Current Issue 20
Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
2119.02 Soft Carrying Pouch for Models (CA7024, CA7026, CA7027-28, 6522-24, 6526, 6532, 6534, 6536, 6528-29, 5212, 5215, 5217, 5231, 5233, 3290-91, 3292-93B, 3292-93B-BT)
Dimensions: (7.75 x 9.25 x 2.75) in 		$51.90
2133.72 Small Classic Tool Bag for field use. 12 Exterior and 14 Interior pockets. Dimensions: (13.0 x 9.8 x 9.5) in.
For use with PEL Models: PEL 102 and PEL 103, DMM/Oscilloscope/Power Analyzer Model: OX 5042B, Megohmmeters Models: 5050, 5060, 5070 & 6505, 6550 & 6555.Data Loggers Models: DL913 & DL 914. 		$38.00
2133.73 Extra Large Classic Tool Bag Replacement for Models: 3945/3945-B, 6240, 6255, 6292, 6471, 6505, 5050, 5060, 5070, 8333, 8335, 8336, 8435, 8436, 8510 & PEL105
Dimensions: (18 x 9 x 12) in 		$55.00

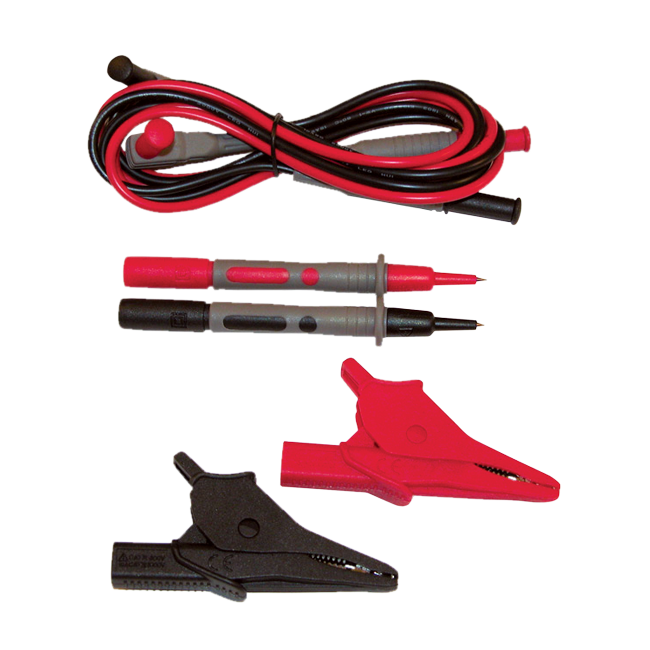

2152.01 Lead – Set of 2, Color-Coded 4 ft (Red/Black) Leads, Test Probes & Alligator Clips (Replacement for Models 1026, CA7027) $30.00

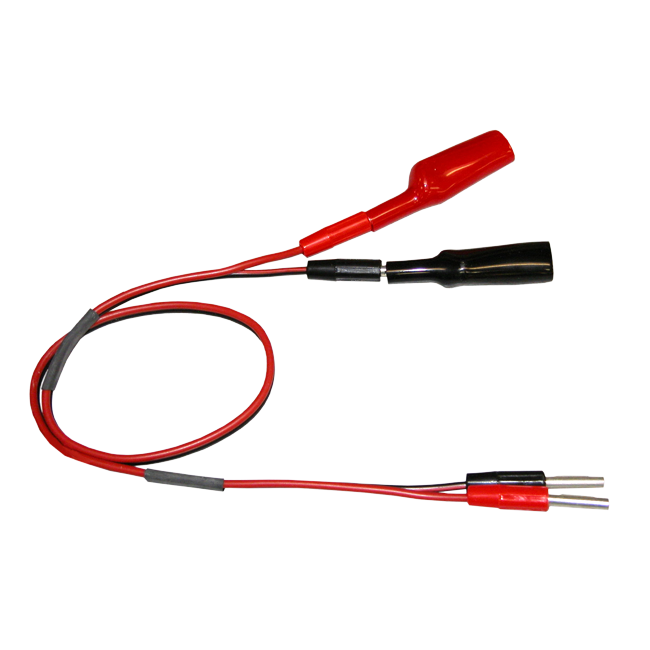

5000.39 Lead - replacement 2mm color-coded banana plugs w/clips for model CA7027 $27.25
2127.76 DISCONTINUED

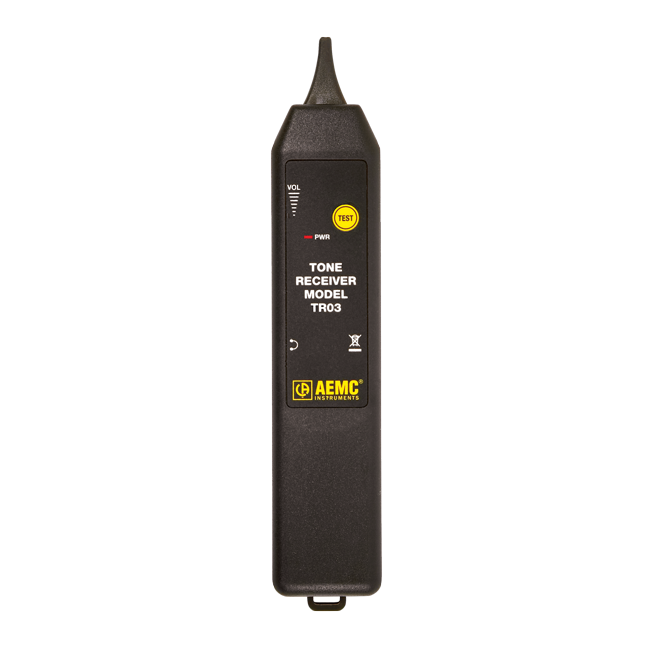

Tone Receiver/Cable Tracer Model TR03 		$0.00 Discontinued
