NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|

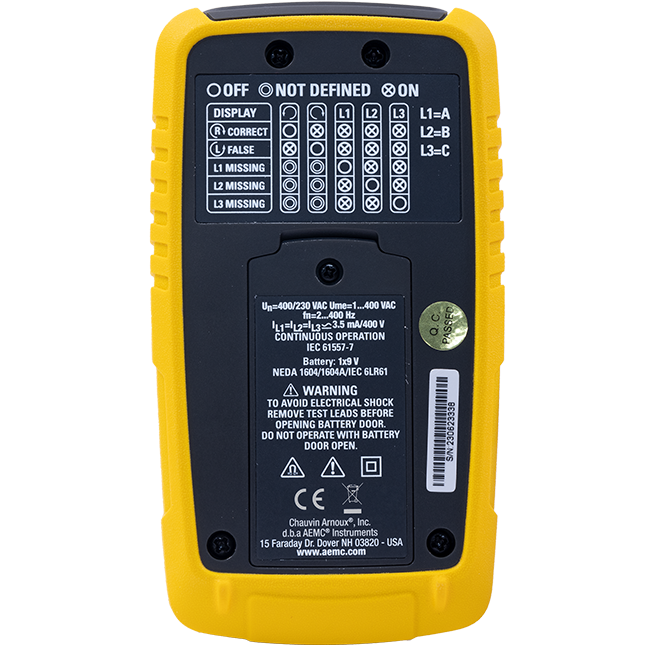

| 6611 | 2121.90 | Phase & Motor Rotation Meter Model 6611 | $109.00 |
|
|
|
||||||||||

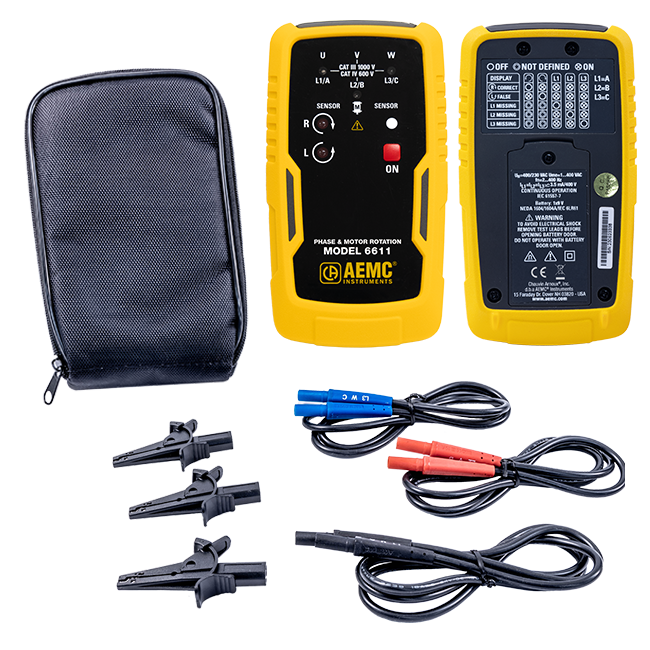

Model 6611 - Cat. #2121.90: Includes a Soft carrying case, (3) 4ft color-coded test leads (red/black/blue), (3) alligator clips (black) and a user manual.
| Phase Rotation Connection Method | Direct Connection with Color-coded Leads |
| Rotating Field Connection Method | Non-Contact Static Induction |
| Operating Voltage | (1 to 440) VAC between phases Leads Connected: (40 to 600) VAC between phases |
| Voltage Indication (L1, L2, and L3 indicator lights) |
(120-440) VAC between phases |
| Operating Frequency | (2 to 400) Hz |
| Test Current (per phase) | < 3.5 mA |
| Phase Rotation Indicator (L1, L2, and L3 indicator lights) |
LEDs for Left or Right Rotation light up from 100 V (phase0neutral voltage) |
| Power Supply | (1) 9 V Alkaline Battery (Included) |
| Dimensions | (5.1 x 2.7 x 1.3) in (130 x 69 x 32) mm |
| Weight | 6 oz (170 g) |
| Operating Temperature | (32 to 104) °F (0 to 40) °C |
| Storage Temperature | (-4° to 122) °F (-20 to 50) °C |
| Relative Humidity | < 80 % |
| Safety Compliance | IEC 61010-1; 600V CAT III |
| Ingress Protection | IP 40 |
| CE Approved | Yes |
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
|
2117.73 | Pouch - Replacement or use with Models (1026, 505, 566, 5212-5217, 5231, 5233, 6608, 6609, 6610, 6611, 6612, L261, 6527, 1510, 400D-10, 4000D-14, L452) Dimensions: (7 x 8.5 x 2) in |
$24.00 |
|
|
|

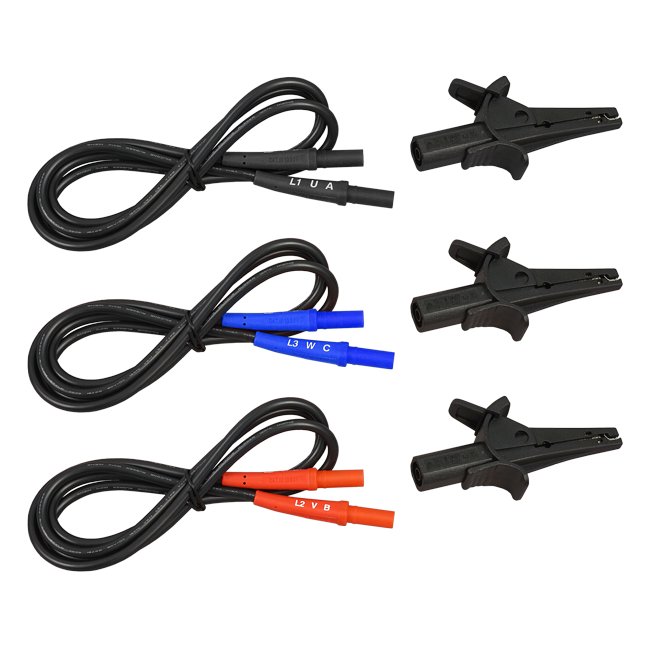

2121.55 | Set or 3 replacement leads, color-coded (1000V CAT III 10A) with clips for the Models 6608 & 6609 (may be used with PMR-1) | $50.00 |
|
|
|
||||||||||
|
||||||||||
