NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
| 1510 | 2138.08 | Air Quality Logger Model 1510 (Gray) | $600.00 | In stock at factory. Find a Distributor |
|
| 1510 | 2138.09 | Air Quality Logger Model 1510 (White) | $600.00 | In stock at factory. Find a Distributor |
|
|
||||||||||
|
||||||||||
Model 1510 - Cat. #2138.08 & Cat. #2138.09: Includes soft carrying pouch, adapter - US wall plug to USB, (1) 6 ft USB cable, (2) 1.5V AA batteries, printed Quick Start Guide, and a USB thumb drive with DataView® software and a user manual.
| CO2 Measurement | |
| Measuring Principle | Non-dispersive infrared (NDIR) technology |
| Type of Sensor | Double-beam infrared cell sensor |
| Range | 0 to 5000 ppm |
| Accuracy | ±50 ppm ± 3% of value measured |
| Response Time, 63% | <200 seconds |
| Resolution | 1 ppm |
| Alarm Alerts (Audible and/or visual) | S1: Low Threshold = 1000 ppm S2: High Threshold = 1700 ppm |
| Temperature Measurement | |
| Type of Sensor | CMOS |
| Units | °C or °F |
| Range | 14° to 140°F (-10° to +60°C) |
| Accuracy | ±1°F (±0.5°C) |
| Resolution | 0.1°F (0.1°C) |
| Humidity Measurement | |
| Type of sensor | Capacitive |
| Range | 5 to 95% RH |
| Accuracy | ±2% RH |
| Resolution | 0.1% RH |
| Recording Interval | Programmable 1 minute to 2 hours |
| Storage | More than 1 million measurements |
| Alarm | Yes |
| Backlighting Display, Hold Function, Min& Max | Yes |
| Auto Power OFF | Yes (in portable mode only) |
| Dimensions | 4.92 x 2.58 x 1.26” (125 x 65.5 x 32mm) |
| Weight | 6.7oz (190g) with batteries |
| Power Supply | Alkaline 2 x 1.5V AA LR6 or rechargeable battery, Connection to 120V 60Hz line/ micro USB to wall adapter |
| Communication | Bluetooth (Class I)/USB link |
| Software | AQR (Air Quality Report) software included, free Android app available. |
| Mounting | Optional padlockable wall mount (padlock not included), optional desktop stand and tear drop wall hook |
| Temperature | Operation: 14° to 140°F (-10° to 60°C) at 5 to 95% RH Storage: -4° to 140°F (-20° to 60°C) without battery |
| Protection | IP40 |
| Compliance | IEC 61010-1, 50V CAT II, IEC 61326-1 |
| CE Approved | Yes |
User Manuals
Quick Start Guides
Datasheets
Brochures
Environmental Data Loggers
Test Indoor Air Quality with AEMC® Model 1510
Comprobación de la Calidad del Aire
AEMC® Instruments Product Line Brochure
AEMC® Instruments Product Line Brochure (FR CAN)
Application Notes
Technical Bulletins
Videos
Indoor Air Quality
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
|
2126.45 | Adapter, Bluetooth USB for Simple Logger II 4-Channel Models, Models 6417, CA1510 & L452 | $36.25 |
|
|
|
2138.61 | Wall Mount for Model CA1510 & L452 (black) | $64.00 |
|
|
|
2138.66 | Cable – 6 ft USB Type A – Type B Micro (Replacement for Models L452, 1110, 1227, 1246, 1510, 1821, 1822, 1823) and may be used with MR415 to MR527 series. | $17.00 |
|
|
|

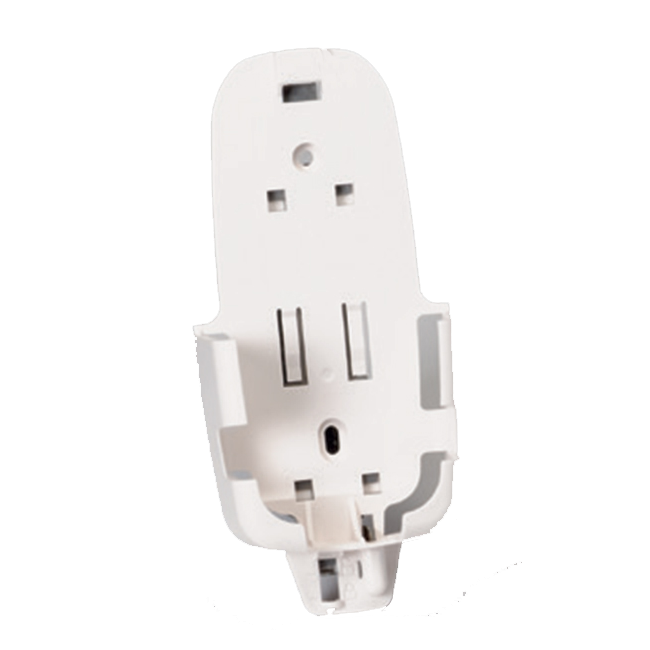

2138.67 | Wall Mount for Model CA1510 & L452 | $64.00 Sale: $32.00 |
Consult Factory for Availability |
|
|
2153.78 | Adapter – US Wall plug to USB (Replacement for Models L452, 1510, MH60) and may be used with Models 1110, 1227, 1246, 1821, 1822, 1823 & MR415 to MR527 series. | $21.00 |
|
|
|

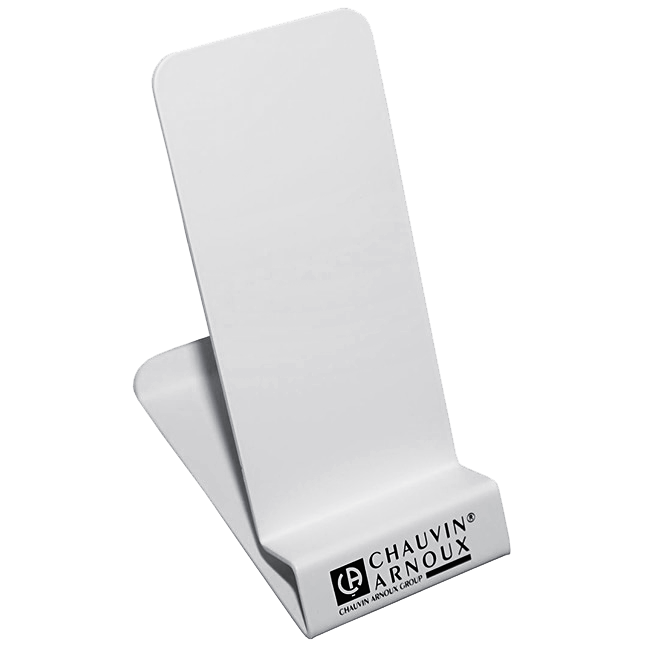

2138.62 | Stand for Model CA1510 | $0.00 Sale: $0.00 |
Discontinued |
|
|

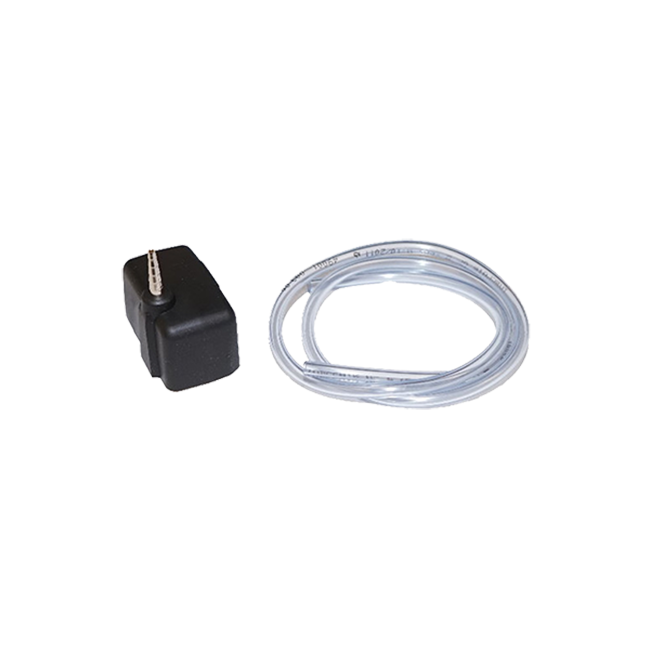

2138.63 | Calibration Kit for Model CA1510 Includes calibration software CD |
$0.00 | Discontinued |
|
|
2138.65 | Case - Replacement Carrying Case for Model CA1510 | $0.00 | Discontinued |
|
|
2154.71 | Pouch - Replacement Carrying Pouch for Models 5212, 5215, 5217, C.A 1510 & L452 | $0.00 | Discontinued |
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
