NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|

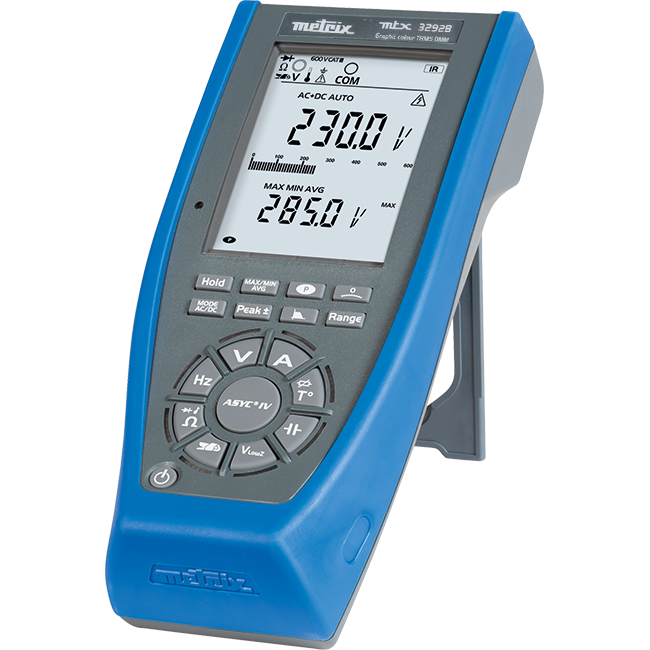

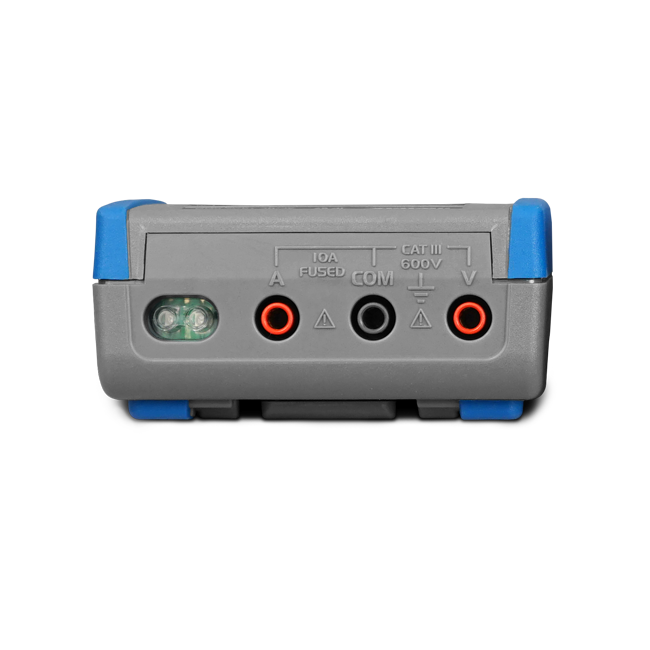

| MTX 3290 | 2154.01 | Digital Multimeter Model MTX 3290 | $525.00 |
|
|
|
||||||||||
Model MTX 3290 - Cat. #2154.01: Includes set of (2) color-coded safety leads (red/black), set of (2) color-coded test probes (red/black), (4) 1.5V AA batteries (installed), a printed Quick Start Guide and USB thumb drive with a user manual.
| Counts | 6000 |
| Voltage AC/DC/AC+DC | 1000VAC/DC/AC+DC |
| Current AC/DC/AC+DC | 10AAC/DC/AC+DC (15A for 30s max) |
| Bandwidth AC/AC+DC | 20kHz |
| Resistance | 60MΩ |
| Frequency | 60Hz to 600kHz |
| Capacitance | 60mF |
| Continuity | <30Ω±5Ω |
| Temperature (PT100/1000) | -328° to 1472°F (164° to 800°C) |
| Diode Test | Yes |
| VLowZ | Yes |
| ∆REL | Yes |
| MIN/MAX/AVG/PEAK | Yes all functions |
| Clamp Function | Current measurement with pre-set ratios |
| Display | Digital LCD |
| Dimensions (HxWxD) | 7.72 x 3.54 x 1.85" (196 x 90 x 47.1mm) |
| Weight | 1.26 lbs (570g) |
| Power Source | 4 x AA Batteries or NiMH batteries (included) |
| Battery Life | AA:100 hrs, NiMH:80 hrs |
| Operating Temperature | -4° to 158°F (-20° to 70°C) |
| Storage Temperature | -32° to 104°F (-35° to 40°C) |
| Pollution degree | 2 |
| Ingress Protection (IP) | IP67 |
| EMC | NF EN 61326-1 |
| Safety Compliance | NF EN 61010-1, NF EN 61010-2-30 600V CAT III, 300V CAT IV |
User Manuals
Datasheets
Brochures
MTX32xx Digital Multimeters
AEMC® Instruments Product Line Brochure
AEMC® Instruments Product Line Brochure (FR CAN)
Comparison Charts
Application Notes
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
|

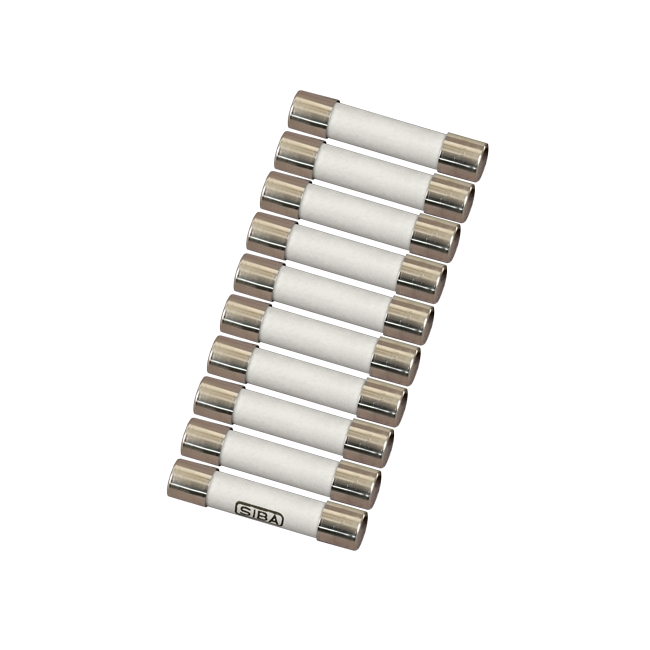

2118.62 | Fuse - Set of 10, 10A, 600V, 6 x 32mm (0.25 x 1.25") for MX Series | $19.75 |
|
|
|
2135.41 | Optical USB Cable – Replacement for Models 6240, 6470/6470-B, 6471, 6472, 6550 ,6555, 8220, 8230 & MTX 328x Series | $69.25 |
|
|
|
2139.71 | Thermocouple – K-thermocouple w/4mm Integrated Adapter (Replacement for Models 1821,1822, 5233, 5217, MTX 3292B/92B-BT/93B/93B-BT, 203, 401, 403, 601, 603, 607, 675 & 5217) | $14.00 |
|
|
|
2139.74 | Lead - Set of 2, 6.5ft Color-coded Red/Black Fused Leads (.63A) w/ 4mm Plug | $114.00 |
|
|
|
2152.28 | Lead - Set of 2, 6.5 ft. Color-coded (Red/Black) Fused Leads (0.63A); Two Screw-on Alligator Clips, Two Screw-on Test Probes, Set of 5, 0.63A Fuses (UL) | $189.00 |
|
|
|
5000.30 | Probe - black test probe {Rated 1000V CAT IV, 15A, UL} replacement for Megohmmeter lead sets | $6.00 |
|
|
|
5000.44 | MultiFix (universal mounting system) for use with models 5231, 5233, 400D, and 4000D | $17.75 |
|
|
|
5000.94 | Lead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL) | $26.50 |
|
|
|
5000.99 | Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) | $11.50 |
|
|
|
5100.00 | Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2) | $11.50 |
|
|
|
5100.04 | Clip - Safety Alligator - Blue (1000V CAT IV, 15A, UL V2) | $11.50 |
|
|
|
5100.05 | Clip - Safety Alligator - White (1000V CAT IV, 15A, UL) | $11.50 |
|
|
|
5100.06 | Clip - Safety Alligator - Green (1000V CAT IV, 15A, UL) | $11.50 |
|
|
|
5100.07 | Lead - set of 2, 5 ft color-coded (red/black) PVC w/ 4mm ST/ST plugs | $25.00 |
|
|
MN251
|
2115.77 | AC Current Probe Model MN251 (200A, 1mV/A, Lead) |
$0.00 | Discontinued |
|
MN03
|
2129.18 | AC Current Probe Model MN03 (Discontinued replaced by Cat.#2129.19) | $0.00 | Discontinued |
|
|
2152.05 | Cat.# 2152.05 is DISCONTINUED. Click on replacement items: Cat. #5000.94: Lead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL). Cat. #5000.99: Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) . Cat. #5100.00:Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2). Cat #5000.30: Probe - black test probe (Rated 1000V CAT IV, 15A, UL). Cat #5000.98: Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}. | $0.00 | Discontinued | |
|
5000.31 | Cat.# 5000.31 is DISCONTINUED. Click on replacement item: Cat. #5000.98: Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}. | $0.00 | Discontinued |
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
