Digital Multimeter Model 5231

The Model 5231 is a rugged, economical TRMS digital multimeter with a non-electrical contact testing (NCV) function for detecting live electrical circuits. This multimeter is designed for safety: IEC61010 600V CAT IV. The Multimeter Model 5231 provides a Volt, Ohm, Continuity, Diode function, as well as an AC voltmeter function with low input impedance that is capable of finding ghost voltages by adding a burden to the circuit. It performs AC/DC direct reading current measurements up to 600A with a current clamp accessory plugged in.

The rotary function switch provides two OFF positions (OFF and OFF NCV). While in the OFF NCV position, the display will turn red if placed close to a live cable, providing a safe and easy way to detect hot wires. This meter has a high sensitivity with a resolution of 0.01mV and can withstand overloads up to 8000V.

The Model 5231 is ideal for electrical installers, electricians and heating or air-conditioning specialists.

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.

Model	Cat. #	Description	List Price	Quantity/Status	Distributor Stock Check
5231	2125.64	DMM Model 5231 NIST Calibration ($68.00 each)	$89.00

Model	5231
Cat. #	2125.64
Description	DMM Model 5231
List Price	$89.00
NIST Calibration ($68.00 each)

Model 5231 - Cat. #2125.64: Includes soft carrying case, set of (2) 5ft color-coded leads (red/black) with needle tip and a user manual.

Counts	6000
Voltage AC/DC	1000VAC/600VDC
Current AC/DC	600AAC/DC (with 1mV/A clamp)
Bandwidth AC	1kHz
Resistance	60MΩ
Continuity	<20Ω+3Ω
Non-Contact Voltage	>90V
Diode Test	Yes
VLowZ	Yes
Display	Digital with 61-segment analog bargraph and backlighting
Dimensions (HxWxD)	6.1 x 2.95 x 2.17" (155 x 75 x 55mm)
Weight	11oz (320g)
Power Source	9V alkaline battery
Battery Life	>100 hours
Operating Temperature	-4° to 158°F (-20° to 70°C)
Storage Temperature	-32° to 122°F (-35° to 50°C)
Pollution Degree	2
Ingress Protection (IP)	IP54
EMC	EN 61326/A2:2001
Safety Compliance	IEC/EN 61010-1,1000V CAT III, 600V CAT IV

User Manuals

Model 5231

Datasheets

Model 5231 - English

Modelo 5231 - Español

Brochures

AEMC^® Instruments Product Line Brochure

AEMC^® Instruments Product Line Brochure (FR CAN)

Comparison Charts

Digital Multimeters Comparison Chart - English

Digital Multimeters Comparison Chart - Español

Application Notes

Reducing Noise Voltage in Shielded Cable

Understanding Uncertainty Specifications

Model	Cat. #	Description	List Price	Quantity/Status
	2121.54	Pouch - Replacement for Models 6608, 6609, 5231, 5233 & Digital Flexprobe Series	$9.95
	2139.74	Lead - Set of 2, 6.5ft Color-coded Red/Black Fused Leads (.63A) w/ 4mm Plug	$114.00
	2152.28	Lead - Set of 2, 6.5 ft. Color-coded (Red/Black) Fused Leads (0.63A); Two Screw-on Alligator Clips, Two Screw-on Test Probes, Set of 5, 0.63A Fuses (UL)	$189.00	Consult Factory for Availability
	5000.44	MultiFix (universal mounting system) for use with models 5231, 5233, 400D, and 4000D	$17.75
	5100.04	Clip - Safety Alligator - Blue (1000V CAT IV, 15A, UL V2)	$11.50
	5100.05	Clip - Safety Alligator - White (1000V CAT IV, 15A, UL)	$11.50
	5100.06	Clip - Safety Alligator - Green (1000V CAT IV, 15A, UL)	$11.50
	5100.07	Lead - set of 2, 5 ft color-coded (red/black) PVC w/ 4mm ST/ST plugs	$25.00
MN251	2115.77	AC Current Probe Model MN251 (200A, 1mV/A, Lead)	$0.00	Discontinued
	2125.92	Case - Replacement Carrying Case for MTX 3283B-BTCOMCM	$0.00	Discontinued
MN03	2129.18	AC Current Probe Model MN03 (Discontinued replaced by Cat.#2129.19) NIST Calibration ($68.00 each)	$0.00	Discontinued

Model
Cat. #	2121.54
Description	Pouch - Replacement for Models 6608, 6609, 5231, 5233 & Digital Flexprobe Series
List Price	$9.95

Model
Cat. #	2139.74
Description	Lead - Set of 2, 6.5ft Color-coded Red/Black Fused Leads (.63A) w/ 4mm Plug
List Price	$114.00

Model
Cat. #	2152.28
Description	Lead - Set of 2, 6.5 ft. Color-coded (Red/Black) Fused Leads (0.63A); Two Screw-on Alligator Clips, Two Screw-on Test Probes, Set of 5, 0.63A Fuses (UL)
List Price	$189.00
Consult Factory for Availability

Model
Cat. #	5000.44
Description	MultiFix (universal mounting system) for use with models 5231, 5233, 400D, and 4000D
List Price	$17.75

Model
Cat. #	5100.04
Description	Clip - Safety Alligator - Blue (1000V CAT IV, 15A, UL V2)
List Price	$11.50

Model
Cat. #	5100.05
Description	Clip - Safety Alligator - White (1000V CAT IV, 15A, UL)
List Price	$11.50

Model
Cat. #	5100.06
Description	Clip - Safety Alligator - Green (1000V CAT IV, 15A, UL)
List Price	$11.50

Model
Cat. #	5100.07
Description	Lead - set of 2, 5 ft color-coded (red/black) PVC w/ 4mm ST/ST plugs
List Price	$25.00

Model	MN251
Cat. #	2115.77
Description	AC Current Probe Model MN251 (200A, 1mV/A, Lead)
List Price	$0.00
Discontinued

Model

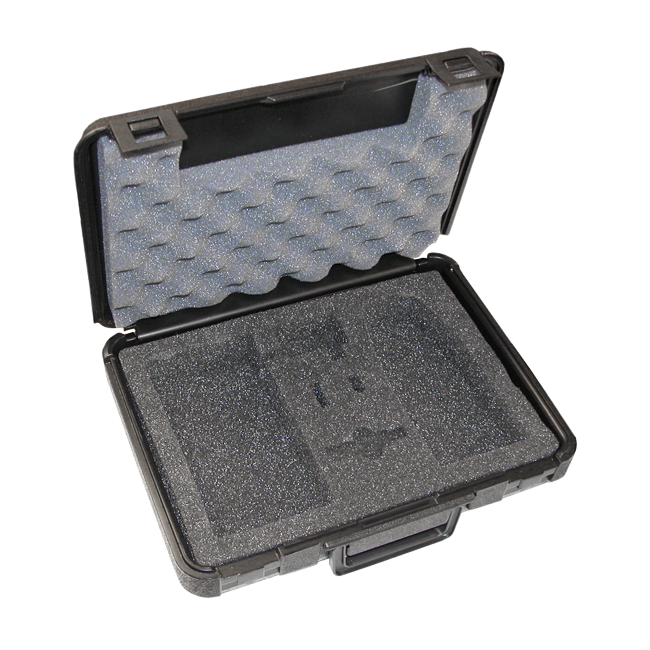

Cat. #	2125.92
Description	Case - Replacement Carrying Case for MTX 3283B-BTCOMCM
List Price	$0.00
Discontinued

Model	MN03
Cat. #	2129.18
Description	AC Current Probe Model MN03 (Discontinued replaced by Cat.#2129.19)
List Price	$0.00
Discontinued
