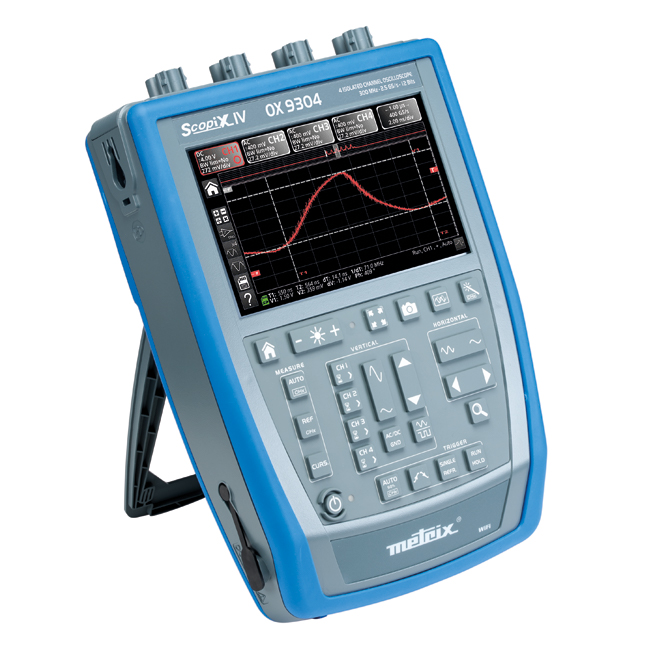

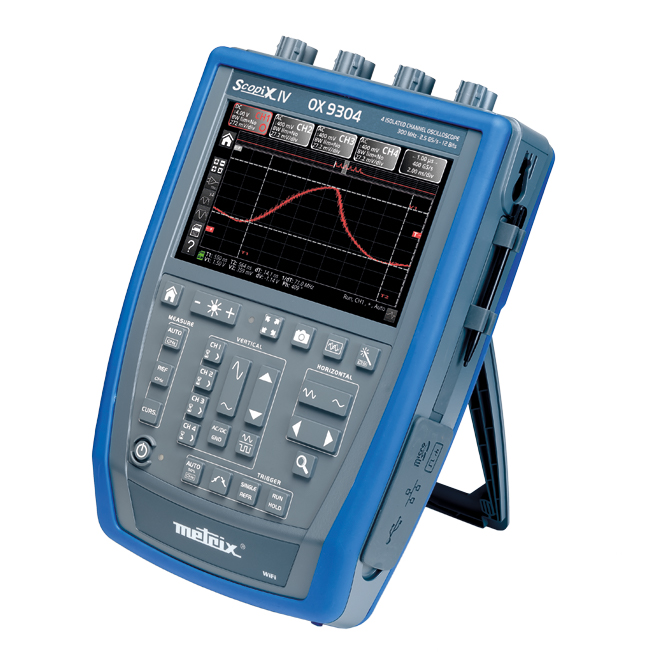

Hand-held Oscilloscope Model OX 9304 IV

The Model OX 9304 Oscilloscope is a rugged, ergonomic, self-contained, hand-held, four-channel oscilloscope with 300MHz bandwidth, 4 channel DMM 8000 cts, FFT function and recording mode, and power measurement.

Large touch screen 7” color LCD display

Ideal for both laboratory and field use, the Model OX 9304 utilizes the patented system of “plug-and-play” accessories, individual isolation of each of the measurement channels, and a range of remote management capabilities. The Ethernet link and Wi-Fi lets you remotely control the oscilloscope without loading any software to your PC. Android App available to download from Google play store.

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
OX 9304 IV 2150.34 Hand-held Portable Oscilloscope Model OX 9304 IV 300MHz $4,995.00 Consult Factory for Availability
ModelOX 9304 IV
Cat. #2150.34
DescriptionHand-held Portable Oscilloscope Model OX 9304 IV 300MHz
List Price$4,995.00
Consult Factory for Availability

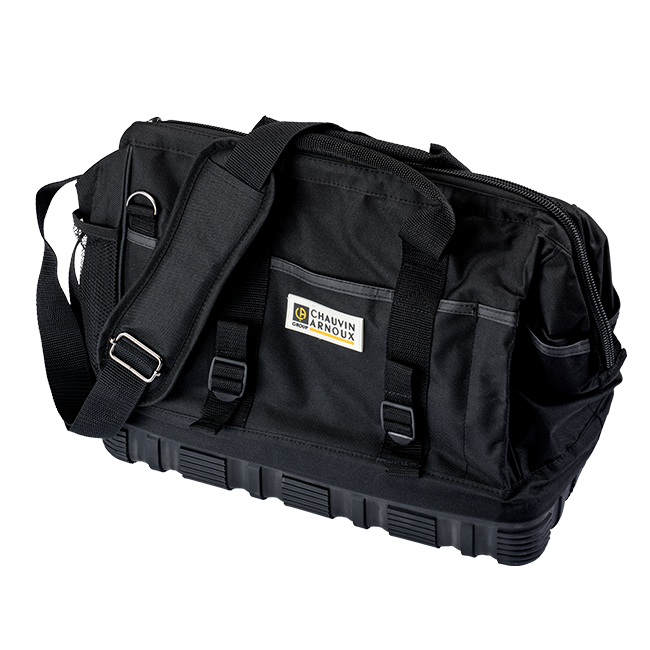

Model OX 9304 IV - Cat. #2150.34: Includes carrying case with shoulder strap, set of (2) 5 ft color-coded leads, alligator clips and test probes (4mm diameter), 10 ft USB cable, µSD memory card, 1-PROBIX Banana Plug (4mm) Adapter, set of (5) stylus pens, LI-ION 5.8Ah battery pack, PA40W-2 power adapter with 110V power cord.

Print
CHANNELS
Inputs / Bandwidth Isolated channels
Input Impedance 1MΩ ± 0.5%, approx. 12pF
INTERFACE
Screen Specifications Color 7" WVGA TFT LCD touch screen, 800 x 480
Display Mode Vectors with interpolation - 2500 real acquisition points on screen
Traces On Screen 4 Traces + 4 References (split screen and full screen modes)
Front Panel Control 32 keys
Screen Control Touch screen - ANDROID type icons and graphical commands
VERTICAL
Vertical Sensitivity 16 ranges from 2.5mV - 200V/div and up to 156µV/div om vertical zoom mode (12-bit converter) - Accuracy ±2%
Max Input Voltage 600V/CAT III (1000V per Probix) – from 50 to 400 Hz - Probix connectors
Vertical Zoom "One click Winzoom" system (direct graphical zoom onscreen) x 16 max
HORIZONTAL
Time Base Speed 35 ranges from 1ns/div. to 200s/div. - accuracy ±[50 ppm + 500 ps] - Roll mode from 100 ms to 200 s/div
Horizontal Zoom "One click Winzoom" system (direct graphical zoom onscreen) x 100 max
TRIGGER
Mode Auto, Triggered, One-shot, Auto-level 50% on all channels
Type Edge, Pulse width (16ns - 20s), delay (48ns - 20s), counting (3 to 16,384 events)
Continuous adjustment of Trigger position
Coupling AC, DC GND, HFR, LFR, noise - Level and Hold-Off adjustable from 64ns to 15s
Autoset Complete <5s with recognition of channels - Frequency >30Hz
Cursors Two or three cursors: V and T with auto measurement: T1, T2, Dt, 1/Dt, dBV, Ph
DIGITAL MEMORY
Max. Sampling Rate 2.5GS/s in one-shot mode on each channel (100GS/s max. in ETS mode) 12 bits resolution
Memory Depth 100kpts per channel and file viewer in the manager
Memory Capacity Internal = 1GB to store the files: trace, text, configuration, math functions, System memory: .pdf print files, .png image files
+ high-capacity removable microSD-Card: SD 2GB, SDHC 4-32GB and SDXC >32GB
GLITCH Mode Duration ≤ 2ns – 500,000 Min/Max pairs
Display Modes Envelope, vector, accumulation -, averaging (factors 2 to 64) - XY (vector) and Y(f)=FFT
OTHER FUNCTIONS
FFT Analyzer & Math Functions FFT (Lin or Log) with measurement cursors - Functions, +, - x, / and mathematical function editor
Automatic Measurement Simultaneously with waveform, 20 automatic measurements per channel and on the 4 channels simultaneously with scroll
Multimeter Mode 4 channels, 8000 counts + Min/Max/Frequency/relative – TRMS – Time stamp graphic recording in logger mode
AC, DC, AC+DC Voltages 600mV to 600VRMS, 800mV to 800VDC: accuracy 0.5% Bandwidth 200kHz
Power and PF Active, Reactive, and Apparent power values plus Power Factor simultaneously with the U & I measurements
Resistance, Temperature, Capacitance, Frequency,  and Diode Test on channel 1 only
Acquisition Duration: 20,000s - Interval: 0.2s - Files: 100,000 measurements
Harmonic Analyzer Mode
Multi-Channel Analysis 2, up to 61st, fundamental from 40 to 450Hz in auto or manual mode
Simultaneous measurement Total Vrms, THD and selected order (% fundamental, phase, frequency, Vrms)
GENERAL FEATURES
Interface Isolated USB, WiFi, and Ethernet, SD micro card for direct transfer to PC. Web server/client with cursor and automatic measurements
Batteries Rechargeable Li-Ion 6,900mAh 40W battery pack, External charger
Charging Time 98 to 264VAC (50/60Hz) 2 hours when OFF
Battery life Approx. 8 hours
Dimensions (L x W x H) 11.5 x 8.29 x 2.6” (292.5 x 210.6 x 66.2mm)
Weight 4.7 lbs. (2.1kg)
Altitude Operating 2000m (6560ft)
Operating Temperature 32° to 104°F (0 to 40°C) ≤80% RH
Storage Temperature -4° to 140°F (-20 to 60°C)
IP Rating IP54 per IEC 60529
Safety IEC/EN 61010-2-30 (1000V CAT II; 600V CAT III), IEC 1326-1

User Manual

Datasheet

Brochure

Software

OX Oscilloscope Software & Firmware



Updates Available



FIRMWARE
 v1.11 - For use with SCOPIX IV, Oscilloscope Models - OX 9062, OX 9102, OX 9104 and OX 9304




  146 MB

To upgrade your Firmware, install SCOPIX IV v1.11:
Install SCOPIX IV v1.11 Download

HOW TO INSTALL SCOPIX IV FIRMWARE

08/30/21


FIRMWARE
 v2.23 - For use with all OX I Series Oscilloscopes
 v3.23 - For use with OX II Series Oscilloscopes
 v4.23 - For use with all OX III Series Oscilloscopes




  51 MB

To upgrade your Firmware, install Loader v2.8:
Install Loader v2.8 Download

HOW TO INSTALL FIRMWARE

11/12/15

  SOFTWARE v6.2


244 MB

195 MB

Executable: SX-METRO Self-extracting v6.2.exe

Zipped File: SX-METRO Software Download v6.2.zip

This software, designed for AEMC OX Oscilloscopes, provides the following functions:

  • Acquisition, recording and processing of curves from the oscilloscope
  • Importing of screenshots
  • Back-up or recovery of configurations
  • Display of curves in real time
  • Communication with the oscilloscope via TCP/IP network connection
  • Transfer of data to Excel or Text files
  • Mathematical processing, such as FFT of displayed signal
08/30/21

  USB DRIVER
  7 MB OX USB Driver Download

LabView Drivers

Procedures for installing the LabView drivers.   LabView Installation PDF


  Megohmmeters
Ver. 1.0 Model 1060 Overview PDF
Ver. 1.1 Models 5060 & 5070 Overview PDF
Ver. 1.0 Models 6550 & 6555 Overview PDF

  Power Quality & Energy
Ver. 1.0 Models 8333, 8435, 8335, & 8336 Overview PDF
Ver. 1.0 Models PEL 102 & 103 Overview PDF

  Simple Logger II Series

Ver. 1.0

Simple Logger II

Overview PDF
  SCOPIX IV – OX9000 Series

Ver. 1.0

Ver. 1.0

LabView Drivers

LabWindows/CVI drivers:

LabWindowsCVI_SCOPIX_IV_ox9000.zip

LabWindowsCVI_SCOPIX_IV_ox9000.zip





Application Notes

Technical Bulletins

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
2124.75 PROBIX PRHX5, 50 Ohm Adapter (HX0032) $139.00 Consult Factory for Availability
2124.76 PROBIX Banana Plug (4mm) Adapter (HX0033) $78.00 Consult Factory for Availability
2136.80 Cable – 10 ft USB Cable for use with Models 8333, 8835, 8336, 8435, 8436, PEL 102, PEL 103, PEL 105, {Replacement for Models DTR® 8510 & C.A 6116} $19.00
2157.01 PROBIX 4mm Banana Plug Adapter for use up to 300Hz $125.00
2157.02

PROBIX PRHX1, 1/10 Probe, 500MHz for use with OX Series (300V CAT III)

Special Order Requests Only (Not Stocked)
Contact Customer Service customerservice@aemc.com

$342.00 Consult Factory for Availability
2157.03 PROBIX PRHX1, 1/10 Probe, 250MHz for use with OX Series (600V CAT III) $342.00 Consult Factory for Availability
2960.47 5.8AH 64Wh Li-Ion Battery Pack for Models C.A 6116N & C.A 6117 $324.00 Consult Factory for Availability
5000.17 Set of 5 replacement stylus pens for Oscilloscopes $6.95
5000.30 Probe - black test probe {Rated 1000V CAT IV, 15A, UL} replacement for Megohmmeter lead sets $6.00
5000.94 Lead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL) $25.00
5000.99 Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) $11.50
5100.00 Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2) $11.50
2124.77 PROBIX Current Probe, 20mA-20A, 100kHz for use with OX Oscilloscope Series $0.00 Discontinued
2124.78 PROBIX PRHX7, K Thermocouple Adapter (HX0035) $0.00 Discontinued
2124.91 AmpFlex® 0.5A to 3000A, 200kHz (HX0072) for use with Oscilloscope OX series
User Manual
$0.00 Discontinued
2124.92 MiniFlex® 0.5A to 300A, 3MHz (HX0073) for use with Oscilloscope OX series
User Manual
$0.00 Discontinued
5000.22 Razor plug 110V - replacement for OXIII & IV series Oscilloscopes $0.00 Discontinued
5000.31 Cat.# 5000.31 is DISCONTINUED. Click on replacement item: Cat. #5000.98: Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}. $0.00 Discontinued
Model
Cat. #2124.75
DescriptionPROBIX PRHX5, 50 Ohm Adapter (HX0032)
List Price$139.00
Consult Factory for Availability
Model
Cat. #2124.76
DescriptionPROBIX Banana Plug (4mm) Adapter (HX0033)
List Price$78.00
Consult Factory for Availability
Model
Cat. #2136.80
DescriptionCable – 10 ft USB Cable for use with Models 8333, 8835, 8336, 8435, 8436, PEL 102, PEL 103, PEL 105, {Replacement for Models DTR® 8510 & C.A 6116}
List Price$19.00
Model
Cat. #2157.01
DescriptionPROBIX 4mm Banana Plug Adapter for use up to 300Hz
List Price$125.00
Model
Cat. #2157.02
Description

PROBIX PRHX1, 1/10 Probe, 500MHz for use with OX Series (300V CAT III)

Special Order Requests Only (Not Stocked)
Contact Customer Service customerservice@aemc.com

List Price$342.00
Consult Factory for Availability
Model
Cat. #2157.03
DescriptionPROBIX PRHX1, 1/10 Probe, 250MHz for use with OX Series (600V CAT III)
List Price$342.00
Consult Factory for Availability
Model
Cat. #2960.47
Description5.8AH 64Wh Li-Ion Battery Pack for Models C.A 6116N & C.A 6117
List Price$324.00
Consult Factory for Availability
Model
Cat. #5000.17
DescriptionSet of 5 replacement stylus pens for Oscilloscopes
List Price$6.95
Model
Cat. #5000.30
DescriptionProbe - black test probe {Rated 1000V CAT IV, 15A, UL} replacement for Megohmmeter lead sets
List Price$6.00
Model
Cat. #5000.94
DescriptionLead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL)
List Price$25.00
Model
Cat. #5000.99
DescriptionClip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #5100.00
DescriptionClip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #2124.77
DescriptionPROBIX Current Probe, 20mA-20A, 100kHz for use with OX Oscilloscope Series
List Price$0.00
Discontinued
Model
Cat. #2124.78
DescriptionPROBIX PRHX7, K Thermocouple Adapter (HX0035)
List Price$0.00
Discontinued
Model
Cat. #2124.91
DescriptionAmpFlex® 0.5A to 3000A, 200kHz (HX0072) for use with Oscilloscope OX series
User Manual
List Price$0.00
Discontinued
Model
Cat. #2124.92
DescriptionMiniFlex® 0.5A to 300A, 3MHz (HX0073) for use with Oscilloscope OX series
User Manual
List Price$0.00
Discontinued
Model
Cat. #5000.22
DescriptionRazor plug 110V - replacement for OXIII & IV series Oscilloscopes
List Price$0.00
Discontinued
Model
Cat. #5000.31
DescriptionCat.# 5000.31 is DISCONTINUED. Click on replacement item: Cat. #5000.98: Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}.
List Price$0.00
Discontinued
