| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
| 205 | 2139.40 | Clamp-on Meter Model 205 | $409.00 |
|
|
|
||||||||||
| Voltage Range: | 1000Vrms AC/DC/AC+DC Auto-ranging |
| Resolution Max: | 0.01V |
| Current Range: | 600Arms AC, 900ADC |
| Resolution Max: | 0.01A |
| Accuracy V Typical: | 1% ± 3cts |
| Accuracy A Typical: | 1% ± 3cts |
| InRush: | 6 to 600AAC, 6 to 900ADC |
| Power Measurement Max: | 600kW AC, 900kW DC |
| THD: | Yes, %f and %r |
| Continuity: | Selectable from 0 to 599.9Ω |
| Resistance: | 60kΩ |
| Diode Test: | 0 to 3.2VDC |
| Frequency: | 20kHz in V, 3kHz in A |
| Power Factor: | Yes |
| Phase Order: | Yes |
| MIN/MAX/PEAK-/PEAK+ | Yes |
| ∆REL: | Yes |
| Power Source: | 1 x 9V, IEC LF22 |
| Battery Life: | >120 hours |
| Dimensions: | 8.7 x 3.0 x 1.65" (222 x 78 x 42mm) |
| Weight: | 12.0 oz. (340g) with battery |
| Jaw Opening: | 1.34" (34mm) |
| Operating Temperature: | -4° to +131°F (-20 to +55°C) |
| Storage Temperature: | -40° to +158°F (-40 to +70°C) |
| Operating Humidity: | 90% up to 131°F (55°C) |
| Pollution Degree: | 2 |
| Ingress Protection: | IP40 |
| EMC: | EN61326-1 |
| Safety Compliance: | EN/IEC 61010-1: 1000V CAT III, 600V CAT IV EN/IEC 61010-2-030:2010 EN/IEC 61010-032:2002 |
User Manuals
Datasheets
Brochures
Comparison Charts
Application Notes
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
|
2121.05 | AC Line Splitter Model ALS-1 | $18.00 |
|
|
|

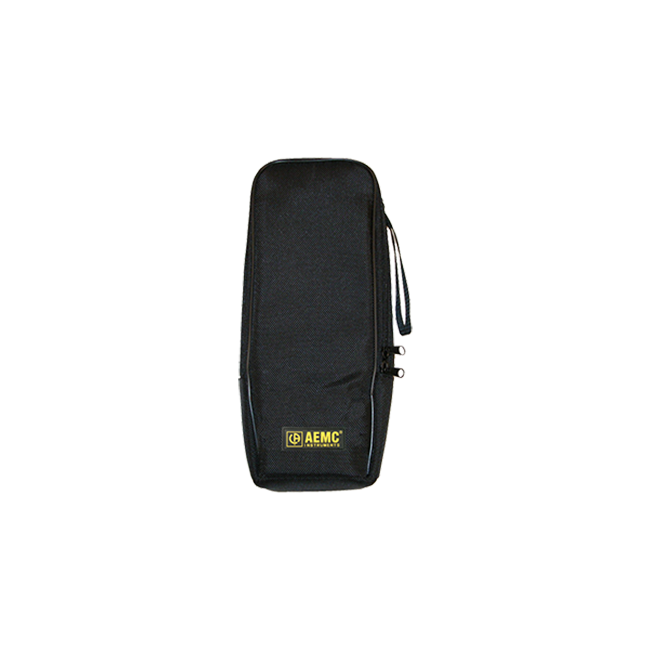

2139.72 | Replacement Pouch for Clamp-on Meter Models 401, 403, 405, 601, 603 & 605 and Megohmmeter Models 6528 & 6529. Dimensions: 13.54 x 4.75 x 2.75” | $18.95 |
|
|
|
2152.05 | Cat.# 2152.05 is DISCONTINUED. Click on replacement items: Cat. #5000.94: Lead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL). Cat. #5000.99: Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) . Cat. #5100.00:Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2). Cat #5000.30: Probe - black test probe (Rated 1000V CAT IV, 15A, UL). Cat #5000.98: Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}. | $0.00 | Discontinued |
|
||||||||||
|
||||||||||
|
||||||||||
