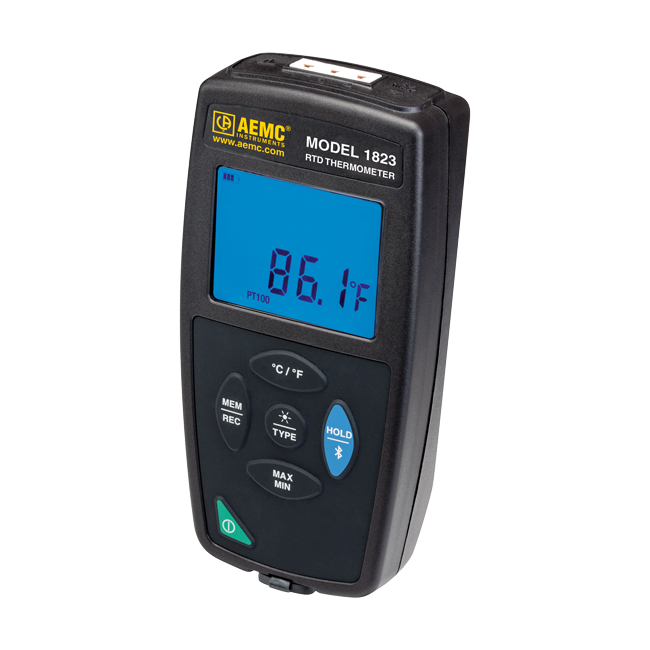

RTD Thermometer Data Logger 1823 (Discontinued)

The RTD 100 and RTD 1000 Thermometer Data Logger Model 1823 is a portable, compact digital meter designed for simplicity and one-hand operation. The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using supplied DataView® software. RTD sensor not supplied.
NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
1823 2121.76 RTD Thermometer Data Logger Model 1823 (Discontinued. No Replacement) $0.00 Discontinued
Model1823
Cat. #2121.76
DescriptionRTD Thermometer Data Logger Model 1823 (Discontinued. No Replacement)
List Price$0.00
Discontinued
Print
Channels One with LCD display and backlit
Input Connection One standard 3 prong RTD connector
Sensor Type RTD100 or RTD1000
Measurement Range -148 to +752°F (-100 to 400°C)
Accuracy ± (0.4% of R + 0.6°F/0.3°C)
Resolution 0.1°F or °C
Other Functions MIN-MAX, Alarms
Sampling Rate Programmable for 1s, 2s, 5s, 10s, 20s, 30s, 2min, 5min, 10min, 15min, 30min, and 1hr
Recording Manual start/stop on the product
Short press for MEM: spot recording/long press for REC at the defined default rate
Programmed recording: start date, recording interval, and end date defined using DataView® software
Memory 1,000,000 measurements on each channel (2MB). Recorded data is stored in non-volatile memory and will be retained even if battery is low or removed.
Alarms Alarms threshold set using the software. Visual alert on the product, recording can be triggered on alarm thresholds.
Communication USB 20 and Bluetooth 4.0 Range 10m typical
Power Source 3x1.5V AA (LR6) alkaline batteries or USB port (micro-USB adaptor offered as an accessory)
Battery Life 1000hrs., 3 years with 15 minute intervals
Dimensions 5.9 x 2.84 x 1.28" (150 x 72 x 32mm)
Weight (with battery) 9.2oz (260g) with batteries
Case Polycarbonate
Operating Temperature 14° to 140°F (-10° to 60°C
Storage Temperature -4° to 140°F (-20° to 60°C)
Relative Humidity Up to 85% at 95°F (35°C)
Ingress Protection (IP) IP50 with the USB cap on
EMC EN 61326-1
Safety Compliance IEC 61010-1
Warranty 2 years
