NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
| 6612 | 2121.91 | Phase Rotation Meter Model 6612 | $99.00 |
|
|
|
||||||||||

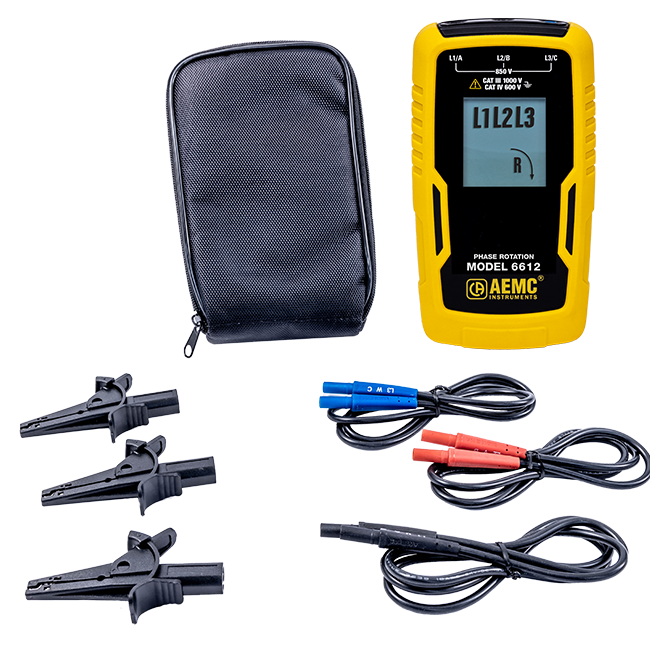

Model 6612 - Cat. #2121.91: Includes a Soft carrying case, (3) 4 ft color-coded test leads (red/black/blue), (3) alligator clips (black) and a user manual.
| Phase Rotation Connection Method | Direct Connection with Color Coded Leads |
| Operating Voltages | (40 to 850) VAC Between Phases |
| Frequency Range | (15 to 400) Hz |
| Test Current | 1 mA |
| Phase Rotation Indicator | LCD Screen with Rotation Arrow |
| Power Supply | Line Powered |
| Dimensions | (5.3 x 2.9 x 1.2) in (135 x 75 x 31) mm |
| Weight | 4.83 oz (137 g) |
| Operating Temperature | (32 to 104) °F (0 to 40) °C |
| Storage Temperature | (-4 to 122) °F (-20 to 50) °C |
| Relative Humidity | (15 to 80) % RH |
| Safety Compliance | IEC 61010-1 and 61557-7; 600 V CAT IV, 1000 V CAT III |
| CE Approved | Yes |
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
|
2117.73 | Pouch - Replacement or use with Models (1026, 505, 566, 5212-5217, 5231, 5233, 6608, 6609, 6610, 6611, 6612, L261, 6527, 1510, 400D-10, 4000D-14, L452) Dimensions: (7 x 8.5 x 2) in |
$24.00 |
|
|
|
2121.55 | Set or 3 replacement leads, color-coded (1000V CAT III 10A) with clips for the Models 6608 & 6609 (may be used with PMR-1) | $48.00 |
|
|
|
||||||||||
|
||||||||||
