NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|

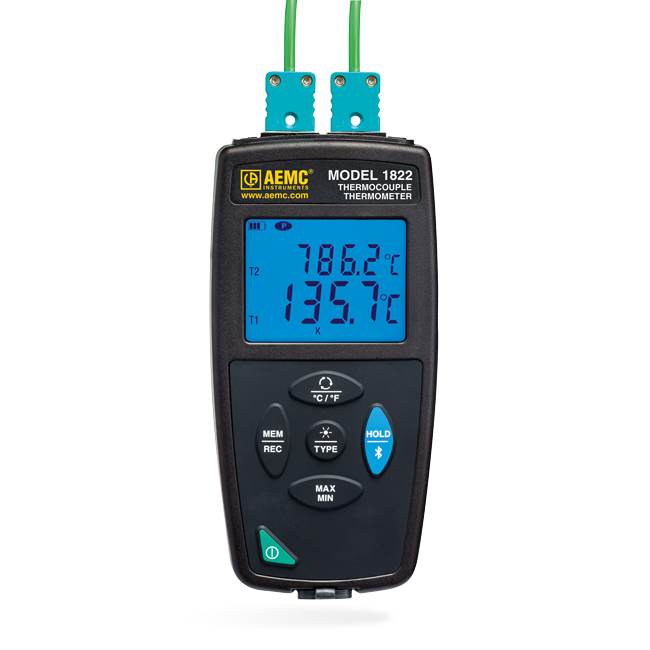

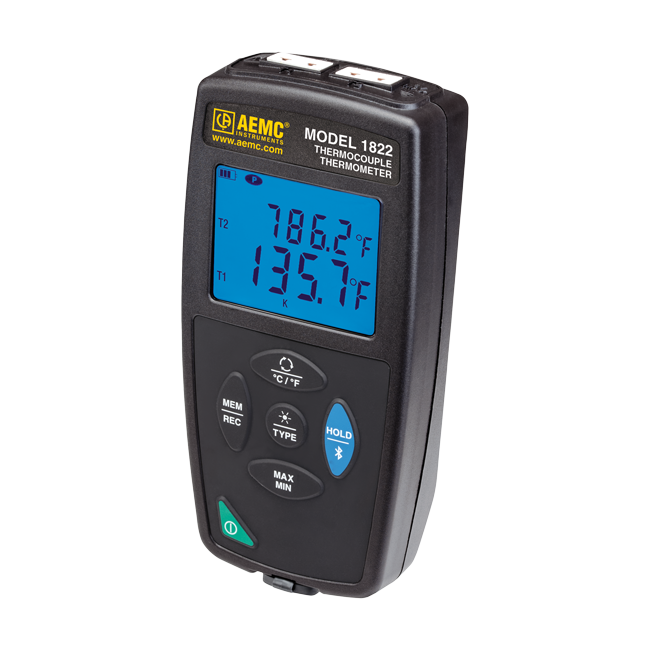

| 1822 (refurbished) | 901.2121.75 | Thermocouple Thermometer Data Logger Model 1822 (refurbished) | $415.00 Sale: $249.00 |
Consult Factory for Availability |
|
|
||||||||||
Model 1822 - Cat. #2121.75: Includes soft carrying case, (3) 1.5 V AA alkaline batteries, 6 ft USB cable, (2) K Thermocouple flexible sensor, printed Quick Start Guide, and a USB thumb drive with DataView® software and a user manual.
| Channel | Two with LCD display and Backlight | ||

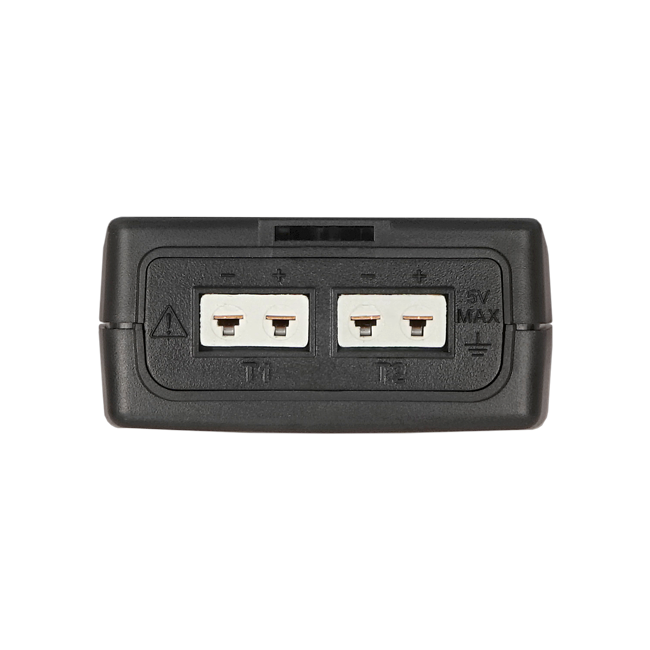

| Input | Two miniature thermocouple connectors | ||
| Connection | °F | °C | |
| Measurement Range (Thermocouple Dependent) |
J K T N E R/S |
-346 to +2192 | -210 to +1200 |
| -328 to +2501 | -200 to +1372 | ||
| -328 to +752 | -200 to +400 | ||
| -328 to +2372 | -200 to +1300 | ||
| -238 to +1742 | -150 to +950 | ||
| 32 to 3212 | 0 to 1767 | ||
| Accuracy J, K, N, T, E | Θ ≤ -148 °F / -100 °C · ± (0.2 % of R + 1.1° F / 0.6 °C) -148 °F / -100 °C < Θ ≤ +212 °F/+100 °C · ± (0.15 % of R + 1.1 °F / 0.6 °C) Θ ≥ +212 °F / +100 °C · ± (0.1 % of R + 1.1 °F / 0.6 °C) |
||
| Accuracy (R, S) | Θ ≤ +212 °F / +100 °C · ± (0.15 % of R + 1.8 °F / 1.0 °C) Θ ≥ +212 °F /+100 °C · ± (0.1 % of R + 1.8 °F / 1.0 °C) |
||
| Resolution | Θ < 1000 ° or °C · 0.1 °F or °C Θ > 1000 ° or °C · 1 °F or °C |
||
| Differential Measurement | Yes, T1 - T2 | ||
| Other Functions | MIN-MAX, Alarms | ||
| Sampling Rate | Programable from 1 s, 2 s, 5 s, 10 s, 20 s, 30 s, 2 min, 5 min, 10 min, 1 5min, 3 0min, and 1 h | ||
| Recording | Manual start/stop on the product Short press for MEM: spot recording/long press for REC at the defined default rate Programmed recording: start date, recording interval, and end date defined using DataView® software |
||
| Memory | 1,000,000 measurements on each channel (4 MB). Recorded data is stored in non-volatile memory and will be retained even if battery is low or removed. | ||
| Alarms | Alarm thresholds set using the software. Visual alert on the product, recording can be triggered on alarm thresholds. | ||
| Communication | USB 2.0 and Bluetooth link | ||
| Power Source | (3) 1.5 V AA (LR6) alkaline batteries or USB port (micro-USB adaptor offered as an accessory) | ||
| Battery Life | 1000 h (w Bluetooth connection deactivated), 3 y with 15 min intervals | ||
| Dimensions | (5.9 x 2.84 x 1.28) in (150 x 72 x 32) mm | ||
| Weight (with battery) | 9.2 oz (260 g) with batteries | ||
| Case | Polycarbonate | ||
| Operating Temperature | (14 to 140) ° F (-10 to 60) °C | ||
| Storage Temperature | (-4 to 140) ° F (-20 to 60) °C | ||
| Relative Humidity | Up to 85 % at 95 °F (35 °C) | ||
| Ingress Protection (IP) | IP50 with USB connector cap on | ||
| EMC |
EN 61326-1 and FCC regulations |
||
| Safety Compliance | IEC 61010-1 | ||
| Warranty | 2 years | ||
