NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.

Model	Cat. #	Description	List Price	Quantity/Status

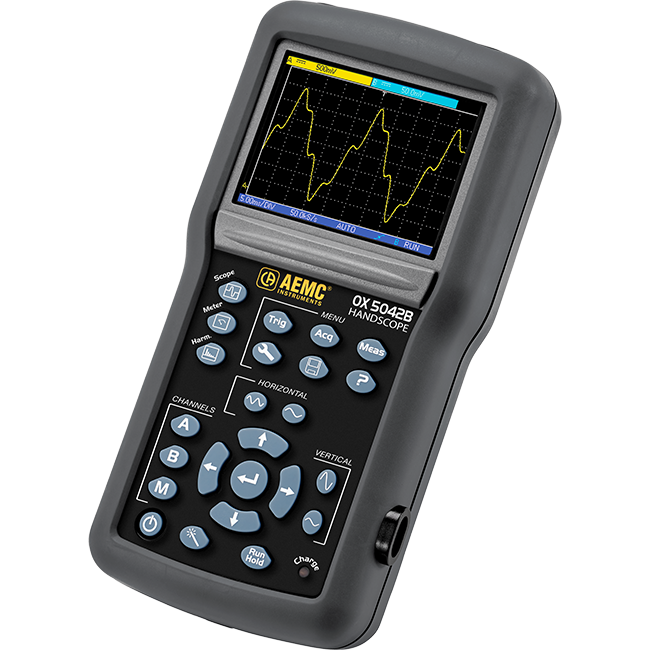

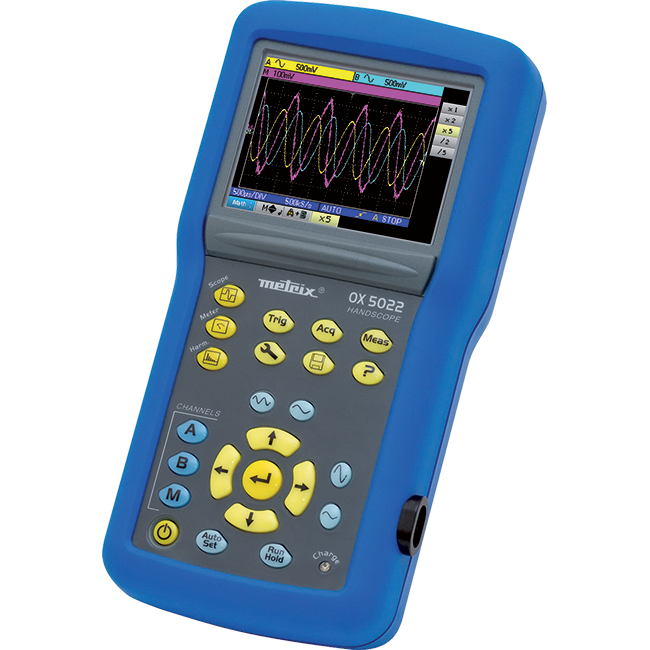

OX 5042B	2150.21	Handscope Portable Oscilloscope Model OX 5042B (2-Channel, 40 MHz) NIST Calibration ($98.00 each)	$2,500.00	In stock at factory. Find a Distributor
OX 5042B w/ MN251T Kit	2150.22	Handscope Portable Oscilloscope Model OX 5042B Kit (2-Channel, 40 MHz, Cat #2132.59 – AC Current Probe Model MN251T (200 A, 1 mV/A 10 ft. BNC connector), a general-purpose probe, MiniFlex^® 3000-24-1-1, BNC Lead) NIST Calibration ($105.00 each)	$3,390.00	In stock at factory. Find a Distributor
OX 5042B w/ MN379T Kit	2150.23	Handscope Portable Oscilloscope Model OX 5042B Kit (2-Channel, 40 MHz, Cat #2153.02 – AC Current Probe Model MN379T (5 A, 200 nV/A & 100 A, 10 mV/A, 10 ft. BNC Lead) designed for measuring the secondary of PTs in the 5 A range. It has an upgraded nickel core for improved accuracy and phase shift critical for power applications, MiniFlex^® 3000-24-1-1, BNC Lead) NIST Calibration ($105.00 each)	$3,460.00	In stock at factory. Find a Distributor

Model	OX 5042B
Cat. #	2150.21
Description	Handscope Portable Oscilloscope Model OX 5042B (2-Channel, 40 MHz)
List Price	$2,500.00
In stock at factory. Find a Distributor

Model	OX 5042B w/ MN251T Kit
Cat. #	2150.22
Description	Handscope Portable Oscilloscope Model OX 5042B Kit (2-Channel, 40 MHz, Cat #2132.59 – AC Current Probe Model MN251T (200 A, 1 mV/A 10 ft. BNC connector), a general-purpose probe, MiniFlex^® 3000-24-1-1, BNC Lead)
List Price	$3,390.00
In stock at factory. Find a Distributor

Model	OX 5042B w/ MN379T Kit
Cat. #	2150.23
Description	Handscope Portable Oscilloscope Model OX 5042B Kit (2-Channel, 40 MHz, Cat #2153.02 – AC Current Probe Model MN379T (5 A, 200 nV/A & 100 A, 10 mV/A, 10 ft. BNC Lead) designed for measuring the secondary of PTs in the 5 A range. It has an upgraded nickel core for improved accuracy and phase shift critical for power applications, MiniFlex^® 3000-24-1-1, BNC Lead)
List Price	$3,460.00
In stock at factory. Find a Distributor

Model OX 5042B - Cat. #2150.21: Includes meter, small classic tool bag, US wall plug, USB cable, set of (2) 10 ft color-coded Leads (red/black), set of (2) color-coded alligator Clips (red/black), set of (2) color-coded probes (red/black), BNC adapter, (2) probe 10:1 600 V BNC male, 1.2 V NiMH rechargeable batteries, Quick Start Guide, and a USB thumb drive with software and a user manual.

Model OX 5042B Kit - MN251T - Cat. #2150.22: Includes meter, field case (IP67), BNC adapter, USB cable and driver, 1 10:1 600 V/BNC-M probe, US wall plug, set of 2 10 ft. color-coded (red/black) leads, alligator clips and test probes, Cat #2132.59 – AC Current Probe Model MN251T (200 A, 1 mV/A 10 ft. BNC connector), Cat #2132.63 – MiniFlex^® 3000-24-1-1 (3000 A, 1 mV/A, 24 in MiniFlex^® sensor, 10 ft. BNC connector), 6 1.2 V NiMH rechargeable batteries, quick start guide, USB drive with software and user manual.

Model OX 5042B Kit - MN379T - Cat. #2150.23: Includes meter, field case (IP67), BNC adapter, USB cable and driver, 1 10:1 600 V/BNC-M probe, US wall plug, set of 2 10 ft. color-coded (Rd/Bk) leads, alligator clips and test probes, Cat #2153.02 – AC Current Probe Model MN379T (5 A, 200 nV/A & 100 A, 10 mV/A, 10 ft. BNC Lead), Cat #2132.63 – MiniFlex^® 3000-24-1-1 (3000 A, 1 mV/A, 24 in MiniFlex^® sensor, 10 ft. BNC connector), 6 1.2 V NiMH rechargeable batteries, quick start guide, USB drive with software and user manual.

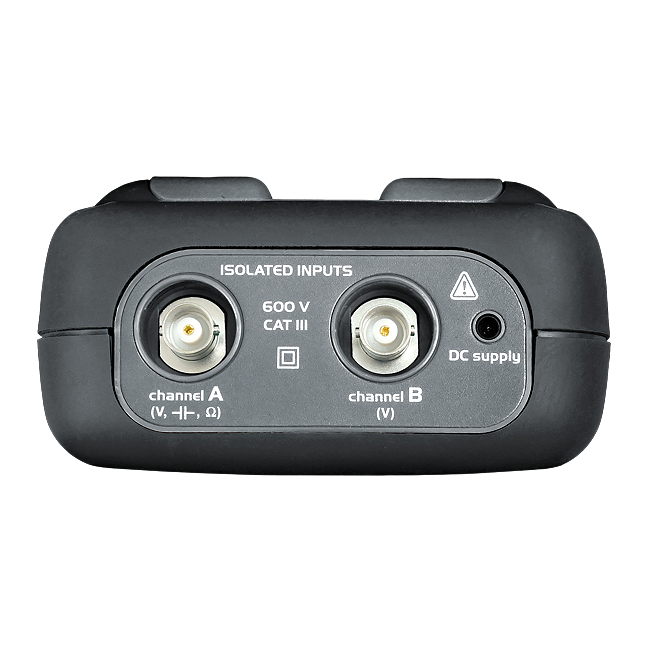

CHANNELS
Inputs / Bandwidth	2 X 600 V Isolated channels / 40 MHz
Input Impedance	1 MΩ ± 0.5 %, 17 pF
INTERFACE
Screen Specifications	Color 3.5 in TFT LCD 320 x 240 – LED Backlighting
Display Mode	2500 real acquisition points on screen
Traces On Screen	2 Traces + 2 References + memory trace or Math calculation
Front Panel Control	24 keys
VERTICAL
Vertical Sensitivity	5 mV to 200 V/div and up to 156 μV/div in vertical zoom mode (12-bit converter) – Accuracy ± 1 %
Max Input Voltage	600 Vrms CAT III – Derating -20 dB per decade from 100 kHz
HORIZONTAL
Time Base Speed	25 ns/div to 200 s/div. – accuracy 0.1-Roll mode from 100 ms to 200 s/div
Horizontal Zoom	Zoom factor : x1, x2, x5
TRIGGER
Mode	On all channels: Auto, Triggered, One-shot & trigger Roll
Type	Edge, Pulse width (20 ns to 20 s)
Coupling	AC or DC (dependent of the coupling of the triggering channel)- HF, LF, or noise rejection
Sensitivity	≤ 1.2 divisions p-p up to 40 MHz
DIGITAL MEMORY
Max. Sampling Rate	2 GS/s in ETS – 50 MS/s in Single Shot Mode on each channel (9 bits)
Memory Depth	2500 points/channel
Memory Capacity	2 MB for storing various types files: trace, text, configuration, image files
GLITCH Mode	Duration ≥ 20 ns – 1,250 MIN Max pairs
Display Modes	Envelope, Averaging (factors 2 to 64) and XY (vector)
OTHER FUNCTIONS
Math Functions	Channel inversion,, +, -, x, / and (adjustable scaling)
Automatic Measurement	18 time, level, phase measurements
Multimeter Mode	2 channels, 8000 counts + Min and Max bargraph – TRMS – graphic recording of 2700 measurements (5 min to 31 days)
AC, DC, AC+DC Voltages	600 mV to 600 VRMS, 800 mV to 800 VDC: accuracy 2% R + 20 cts Bandwidth 50 kHz
Active Power and PF	Single phase-Balanced 3 phase, with or without Neutral, simultaneous display of current
Resistance, Temperature, Capacitance, Frequency, Speed Rotation and Diode Test
Harmonic Analyzer Mode
Multi-Channel Analysis	2 channels, 31 orders, fundamental from 40 to 450 Hz
GENERAL FEATURES
Interface	Isolated USB, SX-Metro software included
Batteries	6 LR6 or 6 AA Rechargeable 9.6 V NiMH battery pack, External charger
Charging Time	External power adapter, (98 to 264) VAC (50/60 Hz) 2 hrs 30 min when OFF
Battery life	Up to 8 hrs 30 min
Dimensions (L x W x H)	(8.43 x 4.33 x 2.24) in (214 x 110 x 57) mm
Weight	2.65 lbs. (1.2 kg)
Altitude Operating	2000 m (6560 ft)
Operating Temperature	(32 to 104) °F (0 to 40) °C ≤80 % RH
Storage Temperature	(-4 to 140) °F (-20 to 60) °C
IP Rating	IP54 per IEC 60529
Safety	IEC/EN 61010-1 (1000 V CAT II; 600 V CAT III), IEC 1326-1

User Manuals

Models OX 5022B & 5042B - English

Modelos OX5022 y OX5042-CK - Español (CA France version)

Models OX 5022B & 5042B - French (CA France version)

Model OX 5042 & OX 5042B Kit

Quick Start Guides

Model OX 5042B Quick Start Guide

Modelo OX 5042B - Guía de Inicio Rápido

Modèle OX 5042B - Français - Guide de Démarrage Rapide

Datasheets

Model OX 5042B w/ MN379T & MF 3000-24-1-1 (BNC Output; Low AC current measurement) - English

Model OX 5042B-CK - English

Model OX 5042B w/MN251T & MF 3000-24-1-1 (BNC Output) - English

MF 3000-14-1-1 - English

Modelo OX 5042-CK - Español

Modelo OX 5042 con MN251T y MF 3000-24-1-1 (salida BNC) - Español

Modelo OX 5042 con MN251T y MF 3000-24-1-1 (salida BNC, medición de baja corriente CA) - Español

MF 3000-14-1-1 - Español

Brochures

Model OX 5022B-OX 5042B - English

AEMC^® Instruments Product Line Brochure

AEMC^® Instruments Product Line Brochure (FR CAN)

Software

OX Oscilloscope Software & Firmware

FIRMWARE - SCOPIX IV

Version: v1.12 | 03/15/22

Manual firmware upgrade for the follwing SCOPIX IV, Oscilloscope Models - OX 9062, OX 9102,OX 9104 and OX 9304

NOTE: Firmware version v1.12 is only compatible with v6.3 of the SX-Metro software.

Follow these instruction to upgrade your Firmware: HOW TO INSTALL SCOPIX IV FIRMWARE INSTRUCTIONS

To upgrade your oscilloscope, download this zipped file: Install SCOPIX IV v1.12 Download (150 MB)

FIRMWARE - Loader v2.8

Version: v4.23 | 11/12/15

v2.23 - For use with all OX I Series Oscilloscopes
v3.23 - For use with OX II Series Oscilloscopes
v4.23 - For use with all OX III Series Oscilloscopes

To upgrade your Firmware, install the Loader v2.8: Loader v2.8 Download (51 MB)

Follow these instruction to install the Loader properly: HOW TO INSTALL FIRMWARE INSTRUCTIONS

SOFTWARE v6.3

Version: 6.3 | 03/15/22

For use with models OX5022, OX5042, OX5022B, OX5042B, and models OX9062, OX9102, OX9104, OX9302, OX9304 (with firmware version v1.10 or higher)

To install the software SX Metro v6.3, you need to download the .zip file, extract all the files and then run the Setup.exe file.

Executable: SX-METRO Self-extracting v6.3.exe (250 MB)

Zipped File: SX-METRO Software Download v6.3.zip (243 MB)

This software, designed for AEMC^® Instruments OX Oscilloscopes, provides the following functions:

Acquisition, recording and processing of curves from the oscilloscope
Importing of screenshots
Back-up or recovery of configurations
Display curves in real time
Communicate with the oscilloscope via TCP/IP network connection
Transfer of data to Excel or Text files
Mathematical processing, such as FFT of displayed signal

Languages

Five languages are supported: German, English, Spanish, French and Italian.

USB DRIVER

Install the USB driver onto a computer to communicate with the device hardware.

OX USB Driver Download (7 MB)

MTX Multimeter Software (Models MTX 3281B, 3282B, 3283B, 3283-BT, 3291, 3292, 3292-BT, 3292B, 3292B-BT, 3293, 3293-BT, 3293B, 3293B-BT)

SX-DMM Version 3.3 | Release Date: September 24, 2021

Intended for the MTX multimeters. The SX-DMM software allows you to: acquire, record and use measurements from four multimeters; XY, derivative, integral, curve smoothing functions; representation in the form of curves and tables.

Configuring Your multimeters:

MTX3281, MTX3282, MTX3283, MTX3291, MTX3292, MTX3293 via optical link or Bluetooth.
OX5022 and OX5042B Handscopes in multimeter mode and USB/Optical link.

System Requirement

Windows 7/8/10 system < br /> PC with 1GHz processor or more, 512MB RAM, 10GB HDD equipped with a serial or USB port.

Supported Languages

Five supported languages: German, English, Spanish, French and Italian.

▶ Download v3.3 - Software
▶ Installation Instructions

Technical Bulletins

Watts Current Issue 17

Model	Cat. #	Description	List Price	Quantity/Status

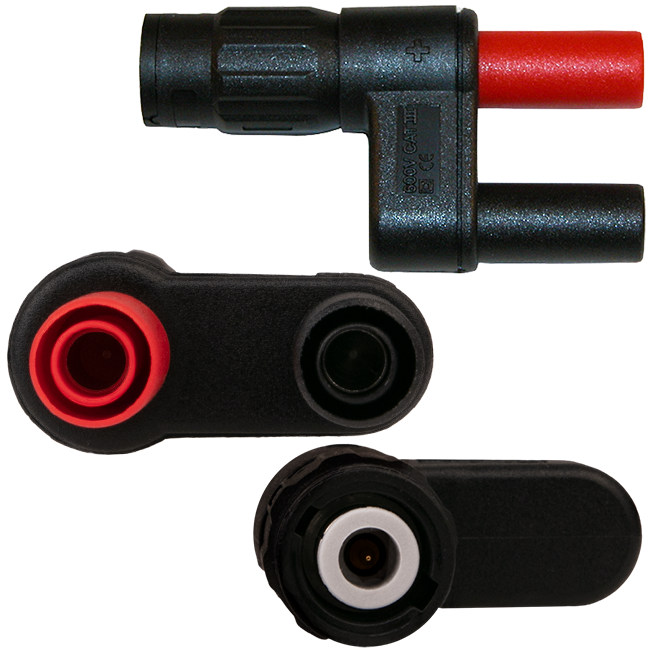

	2118.46	Adapter - Banana (Female) - BNC (Male) (XM-BB) for use with AmpFlex Sensors, Models K100/K110 and SLII Data Loggers (600V CAT III)	$46.25

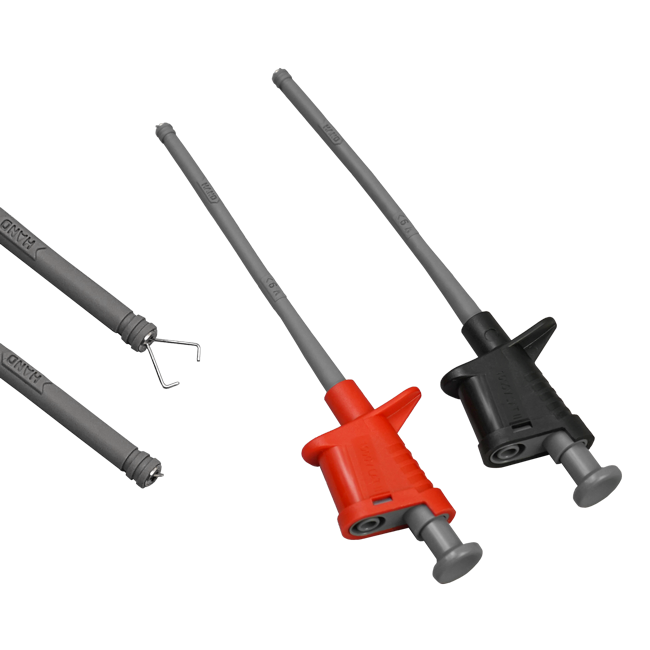

	2124.86	Probe - Set of 2, Color-coded Grip Probes (Red/Black) 1000V CAT II <6A	$48.00
MN251T	2132.59	AC Current Probe Model MN251T (200A, 1mV/A, Lead)	$252.00	Consult Factory for Availability
MF 3000-24-1-1	2132.63	MiniFlex^® 3000A, 24", 1mv/A ,10ft BNC Output NIST Calibration ($68.00 each)	$530.00
	2133.72	Small Classic Tool Bag for field use. 12 Exterior and 14 Interior pockets Dimensions: 13.0 x 9.8 x 9.5"	$36.00
	2135.41	Optical USB Cable – Replacement for Models 6240, 6470/6470-B, 6471, 6472, 6550 ,6555, 8220, 8230 & MTX 328x Series	$69.25

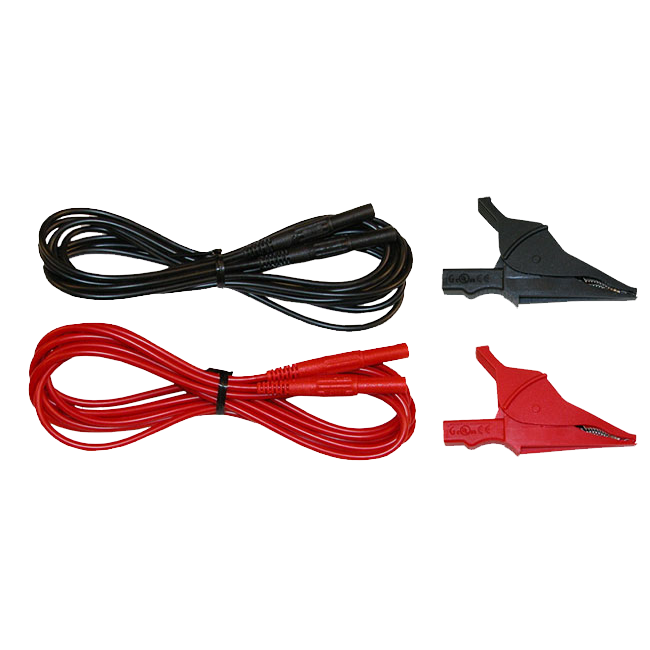

	2140.63	Lead - Set of 2, Color-coded 10 ft (3m) {Rated 600V CAT IV} w/Color-coded alligator clips (Red/Black) {Rated 1000V CAT IV, 15A} Replacement set for Models 8220/8230	$61.50	Consult Factory for Availability
MN379T	2153.02	AC current probe Model MN379T (5A, 200mV/A & 100A, 10mV/A, 10ft. BNC Lead)	$319.00
MH60	2153.03	AC/DC Current Probe Model MH60	$715.00
	2153.78	Adapter – US Wall plug to USB (Replacement for Models L452, 1510, MH60) and may be used with Models 1110, 1227, 1246, 1821, 1822, 1823 & MR415 to MR527 series.	$21.00
	2155.77	Case - Field Case for use with all Hand-Held Meters (IP67) Replacements for Models 6536 ESD Kit & OX5042 Kit Replacement for Cat#2118.98	$275.00
	5000.30	Probe - black test probe {Rated 1000V CAT IV, 15A, UL} replacement for Megohmmeter lead sets	$6.00

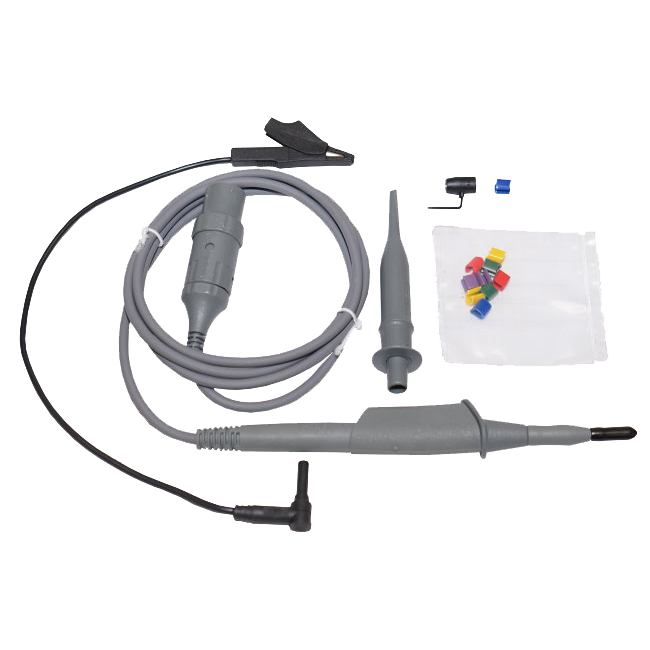

	5000.50	Probe - 10:1 600V BNC male for use with models OX5022, OX5042 & OX5042 kits	$135.00

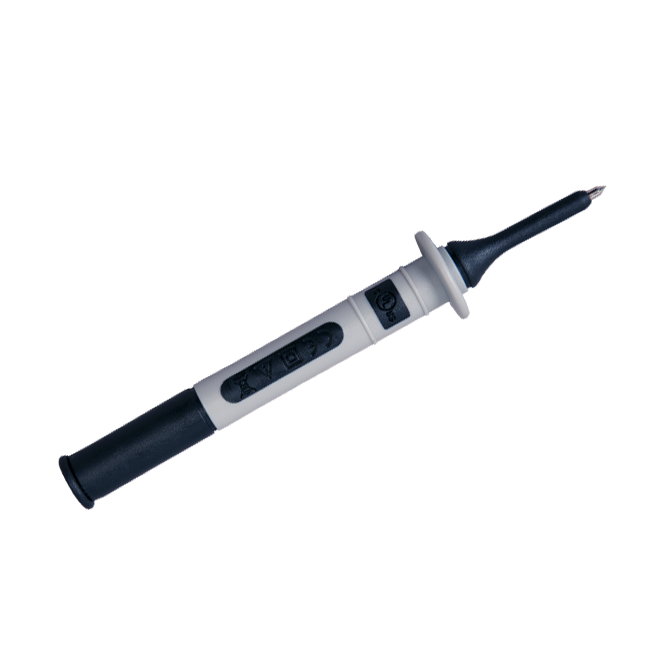

	5000.97	Probe - black test probe {Rated 1000V CAT IV, 15A, UL V2}	$9.00

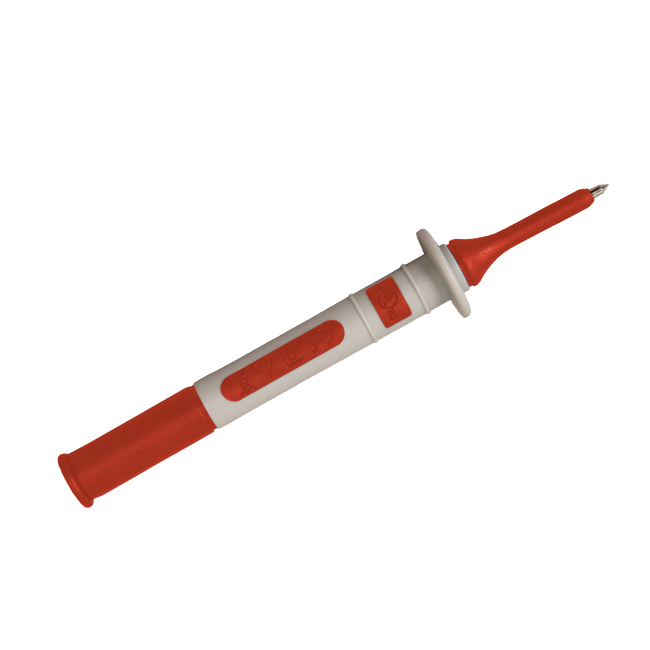

	5000.98	Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}	$9.00
	5100.17	Cable - Replacement USB Cable for use with Models OX 5022B and OX 5042B	$8.95
MF 3000-14-1-1	2132.60	MiniFlex^® 3000A, 14", 1mv/A, 10ft BNC Output NIST Calibration ($68.00 each)	$0.00	Discontinued

Model
Cat. #	2118.46
Description	Adapter - Banana (Female) - BNC (Male) (XM-BB) for use with AmpFlex Sensors, Models K100/K110 and SLII Data Loggers (600V CAT III)
List Price	$46.25

Model
Cat. #	2124.86
Description	Probe - Set of 2, Color-coded Grip Probes (Red/Black) 1000V CAT II <6A
List Price	$48.00

Model	MN251T
Cat. #	2132.59
Description	AC Current Probe Model MN251T (200A, 1mV/A, Lead)
List Price	$252.00
Consult Factory for Availability

Model	MF 3000-24-1-1
Cat. #	2132.63
Description	MiniFlex^® 3000A, 24", 1mv/A ,10ft BNC Output
List Price	$530.00
NIST Calibration ($68.00 each)

Model
Cat. #	2133.72
Description	Small Classic Tool Bag for field use. 12 Exterior and 14 Interior pockets Dimensions: 13.0 x 9.8 x 9.5"
List Price	$36.00

Model
Cat. #	2135.41
Description	Optical USB Cable – Replacement for Models 6240, 6470/6470-B, 6471, 6472, 6550 ,6555, 8220, 8230 & MTX 328x Series
List Price	$69.25

Model
Cat. #	2140.63
Description	Lead - Set of 2, Color-coded 10 ft (3m) {Rated 600V CAT IV} w/Color-coded alligator clips (Red/Black) {Rated 1000V CAT IV, 15A} Replacement set for Models 8220/8230
List Price	$61.50
Consult Factory for Availability

Model	MN379T
Cat. #	2153.02
Description	AC current probe Model MN379T (5A, 200mV/A & 100A, 10mV/A, 10ft. BNC Lead)
List Price	$319.00

Model	MH60
Cat. #	2153.03
Description	AC/DC Current Probe Model MH60
List Price	$715.00

Model
Cat. #	2153.78
Description	Adapter – US Wall plug to USB (Replacement for Models L452, 1510, MH60) and may be used with Models 1110, 1227, 1246, 1821, 1822, 1823 & MR415 to MR527 series.
List Price	$21.00

Model
Cat. #	2155.77
Description	Case - Field Case for use with all Hand-Held Meters (IP67) Replacements for Models 6536 ESD Kit & OX5042 Kit Replacement for Cat#2118.98
List Price	$275.00

Model
Cat. #	5000.30
Description	Probe - black test probe {Rated 1000V CAT IV, 15A, UL} replacement for Megohmmeter lead sets
List Price	$6.00

Model
Cat. #	5000.50
Description	Probe - 10:1 600V BNC male for use with models OX5022, OX5042 & OX5042 kits
List Price	$135.00

Model
Cat. #	5000.97
Description	Probe - black test probe {Rated 1000V CAT IV, 15A, UL V2}
List Price	$9.00

Model
Cat. #	5000.98
Description	Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}
List Price	$9.00

Model
Cat. #	5100.17
Description	Cable - Replacement USB Cable for use with Models OX 5022B and OX 5042B
List Price	$8.95

Model	MF 3000-14-1-1
Cat. #	2132.60
Description	MiniFlex^® 3000A, 14", 1mv/A, 10ft BNC Output
List Price	$0.00
Discontinued
