PowerPad® IV Model 8345

The PowerPad® model 8345 is a portable three-phase, Class A Power Quality Analyzer that enables technicians and engineers to measure and perform diagnostics and power quality work on one, two or three phase networks. This very advanced event recorder meets the highest performance and measurement time accuracy requirements providing a large number of calculated values and processing functions to make installations and maintenance easier.

This power and energy analyzer allows the measurement of voltage, current, frequency, etc. The display of the curves is completely automatic and goes up to 10 complete cycles at 50 Hz, 12 cycles at 60 Hz. All power and energy measurements, and other associated parameters, necessary for a good analysis of an electrical installation in terms of its energy efficiency, are carried out according to the IEC 61000-4-30 and IEEE 1459 standards.

An energy valuation mode is integrated, allowing for the display of dollar value cost of energy.

Harmonics and interharmonics are calculated according to IEC 61000-4-7. It also includes the possibility to detect and measure main signaling (MSV). The flicker measurements comply with IEC61000-4-15. Its Trend mode allows all parameters to be recorded every 200 ms. The Alarm mode adds the ability to monitor the power system and send Emails to the user. The 10-period transient mode, now with the ability to program the number of transients prior to triggering, captures very fast events (up to 2.5 μs). In addition, it incorporates a surge mode that measures 500 ns peaks up to 12 kV. We still have the Inrush mode which captures electrical signals during load start-up.

Communication options are vast through USB link, Wi-Fi mode (direct or via a server), and an Ethernet RJ45 link. A VNC mode has been integrated into the device, which allows any browser (through an IP address) to control the device remotely, whether using a PC, a smartphone, or a tablet (Android or iOS). Its memory card is directly accessible on the front of the device and can be duplicated on a USB key.

Model 8345 is compatible with all the current sensors from the PowerPad® family and comes with a power adapter for its 1000 V AC/DC phase power supply.

Our proprietary DataView® software is included with the meter to download and analyze all measurements. It also allows the unit to be configured for recording to EN50160.

Class A Certificate

The PowerPad® IV Model 8345 is certified to IEC 61000-4-30 ed3 in class A, see the certificate.

New Firmware Available

New firmware (Version 1.12) has been released improving the Class A PowerPad® IV  Model 8345 offering the following New Features. Be sure to Upgrade Today!

  • Harmonics up to order 127 and inter-harmonics up to order 126
  • Automatic pre-trigger to Inrushes
  • Virtual keyboard
  • Setup password
  • A second Wi-Fi Access Point (WAP) connection mode
  • Setup password
  • A new tolerance range function
  • Improved screen capture storage of measurements (power data is slated for a future release)

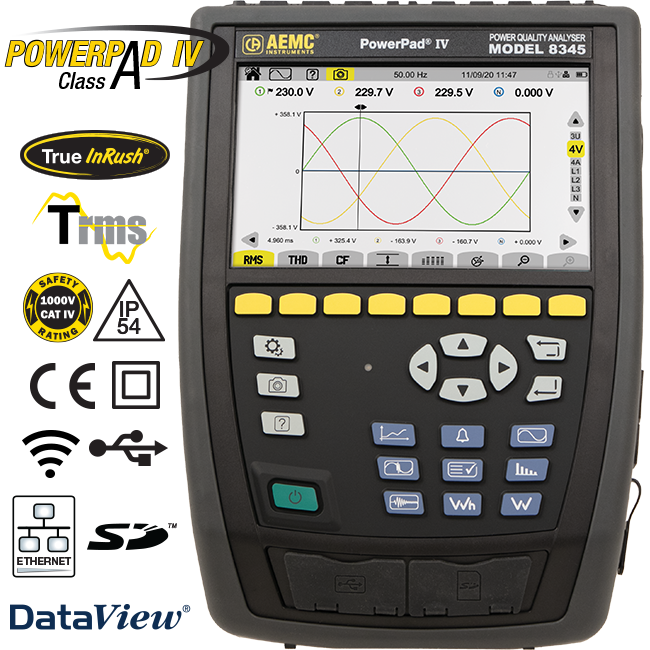

Meet the PowerPad® IV Model 8345


NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
8345 2136.35 PowerPad® IV Model 8345 (No Probes) $9,195.00 In stock at factory. Find a Distributor
8345 2136.36 PowerPad® IV Model 8345 w/ 4 MA194-24-BK Sensors $10,290.00 Consult Factory for Availability
8345 2136.37 PowerPad® IV Model 8345 w/ 4 193-24-BK AmpFlex® Sensors $10,250.00 Consult Factory for Availability
Model8345
Cat. #2136.35
DescriptionPowerPad® IV Model 8345 (No Probes)
List Price$9,195.00
In stock at factory. Find a Distributor
Model8345
Cat. #2136.36

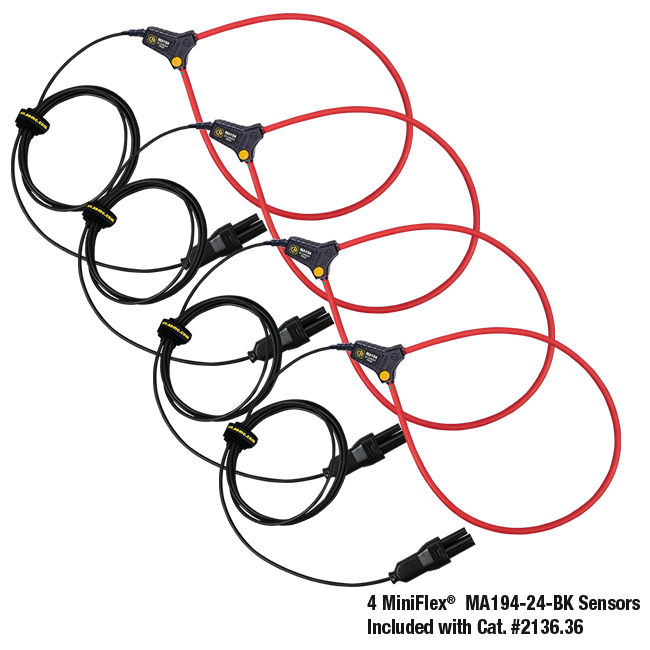

DescriptionPowerPad® IV Model 8345 w/ 4 MA194-24-BK Sensors
List Price$10,290.00
Consult Factory for Availability
Model8345
Cat. #2136.37

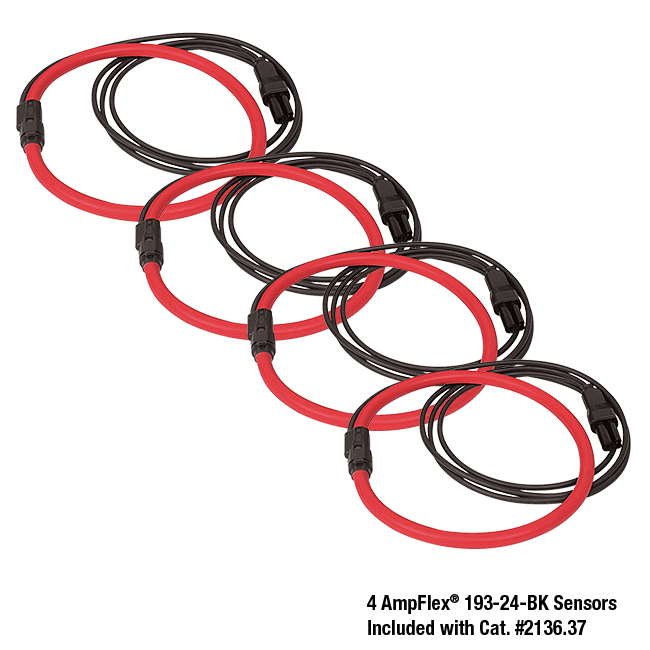

DescriptionPowerPad® IV Model 8345 w/ 4 193-24-BK AmpFlex® Sensors
List Price$10,250.00
Consult Factory for Availability

Model 8345 - Cat. #2136.35: Includes meter, extra-large tool bag, internal carrying pouch, hand strap, USB cable, five 10 ft black voltage leads with alligator clips, twelve color-coded input ID markers, power adapter (PA32ER) with US power cord, two 6 ft stackable leads, two 10 ft black voltage leads with alligator clips for power adapter PA32ER, SD Card, one power plug adaptor for PA32ER, 5.8 A·h Li-ion battery pack, quick start guide, and USB stick with DataView® software and user manual.

Model 8345 (w/4 MA194-24-BK Sensors) - Cat. #2136.36: Includes meter, extra-large tool bag, internal carrying pouch, hand strap, four MA194-24-BK sensors, USB cable, five 10 ft black voltage leads with alligator clips, twelve color-coded input ID markers, power adapter (PA32ER) with US power cord, two 6 ft stackable leads, two 10 ft black voltage leads with alligator clips for power adapter PA32ER, SD Card, one power plug adaptor for PA32ER,5.8 A·h Li-ion battery pack, quick start guide, and USB stick with DataView® software and user manual.

Model 8345 (w/4 193-24-BK Sensors) - Cat. #2136.37: Includes meter, extra-large tool bag, internal carrying pouch, hand strap, four 193-24-BK AmpFlex® sensors, USB cable, five 10 ft black voltage leads with alligator clips, twelve color-coded input ID markers, power adapter (PA32ER) with US power cord, two 6 ft stackable leads, two 10 ft black voltage leads with alligator clips for power adapter PA32ER, SD Card, one power plug adaptor for PA32ER,5.8 A·h Li-ion battery pack, quick start guide, and USB stick with DataView® software and user manual.

Print
ELECTRICAL
Measurement Frequency Measurement Range without Ratio (with unity ratio)
Min Max
42.50 Hz 69.00 Hz

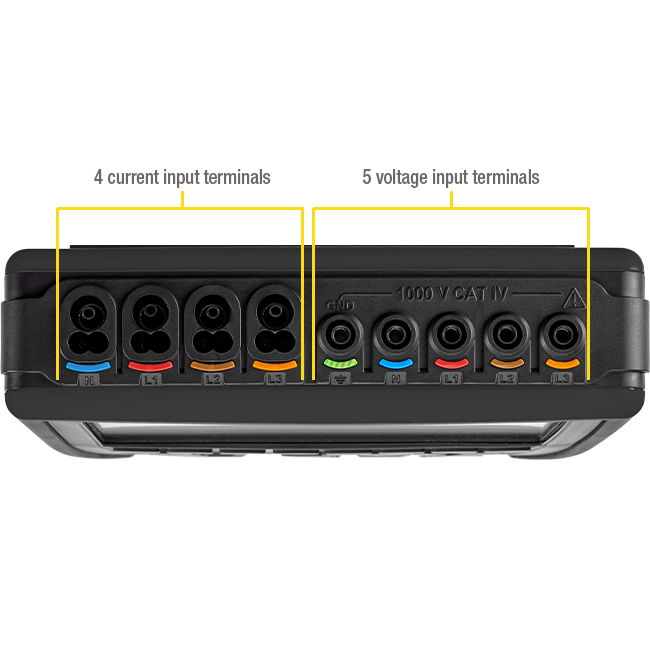

Inputs 5 Voltage / 4 Current, isolated
Voltage 5 V to 1,000 VAC and VDC
Harmonics Mode DC to 127th order; < 3% Udin
Interharmonics Mode 0 to 126th order; < 0.5% Udin
Inrush & Transient Capture (number) No maximum (limited by SD card)
Shockwaves (Fast transient) Up to 12 kV sampled every 500 ns
Flicker (Pst) < 0,1
Voltage Unbalance (u0,u2) 0.5 to 5 % (absolute); ±0.15 % (absolute)
Trend Recording recommended) > 900 parameters
3 days with a sampling period of 200 ms
15 days with a sampling period of 1 s
45 days with a sampling period of 3 s
Sampling Rate Voltage 400 kSps / Current 200 kSps / Surge 2 MSps
Alarm Mode Types / Number 52 / 20,000 with Email notifications
Real-time Mode Yes
Power Mode Yes
Energy Mode Composite
Unbalance Mode Yes
Screenshots No maximum (limited by SD card)
Power Supply Power from phase from 100 to 1000 V AC/DC with external supply block (included)
Carrier Current Detection Yes
Battery 5.8 A•h Li-ion battery pack (included)
≤6 hrs w/ display on; ≤10 hrs w/ display off
MECHANICAL
Data Storage 16 GB SD-Card (included) for snapshot,transients, alarms and trend recording
Display 7 in color LCD touch screen: 800 x 480 (WVGA)
Clock / GPS Yes, built-in
Operating Temperature 32 °F to 104 °F [+0 °C; +40 °C]
Communication USB, Ethernet, Wi-Fi, Web server, DataViewSync™, USB port (type A)
Dimensions (7.87 x 11.22 x 2.17) in (200 x 285 x 55) mm
Weight (meter only) 4.19 lbs (1.9 kg)
COMPLIANCE & STANDARDS
Safety IEC 61010 1000 V CAT IV
Ingress Protection IP54
Environmental IEC 61557-12 & IEC 62586
Measurement Standard IEC 61000-4-30 (Ed 3) Class A (Full)
EN50160 Monitoring Mode Yes, with DataView® software
Warranty *3 years (registration must be done within 30 days of the date of purchase)

User Manuals

Model 8345

Modelo 8345 - ES

Model 8345 - FR

Battery Pack Replacement for PowerPad® IV 8345, Oscilloscope Models OX 9000 Series, and Multi-Function Installation Tester Models CA 6116N & CA6117

Current Probes and Sensors for Power Quality Meters

PA32ER Adapter - EN

PA32ER Adapter - ES

PA32ER Adapter - FR

Quick Start Guides

Model 8345 Quick Start Guide - EN

Modelo 8345 Guía de inicio rápido - ES

Datasheets

Model 8345 - EN

Model 8345 - ES

Brochures

Power Quality Analyzer - Class A - PowerPad® IV Model 8345

Power Quality

Power Quality (FR CAN)

AEMC® Instruments Product Line Brochure

Power Quality Analyzer - Class A - PowerPad® IV Model 8345 - Español

AEMC® Instruments Product Line Brochure (FR CAN)

Rent Now

Premiere Rental Partners

Comparison Charts

Power Analyzer - Current Probe Selection Chart

Power Quality Analyzer Comparison Chart - English

Power Quality Analyzers and Loggers Sensor Compatibility

Software

DataView® Software

Ver. 3.63.0010     |   Models Supported by DataView

Release Date:  November 04, 2024

DataView® Complete

Contains report generation and ALL DataView® control panels. If you don't want to download the entire DataView® package, simple scroll below to locate individual component installers.

Self-extracting Executable: v3.63.0010 .exe — We recommend you use the executable file to simplify the installation process. Click on the link to download it, double-click on the downloaded .exe file to begin the installation process, and follow the installation prompts.

Zipped File: v3.63.0010 (1.8 MB). zip — Alternatively you can manually extract the files from the zipped file. Please note: you should NEVER install these files from within the zipped file. You MUST extract them prior to installing.



IMPORTANT:

  • Back-up all template files before installation to ensure that they do not get overwritten.
  • Uninstall previous version of DataView before installing a new version.
  • PQL Loggers and Sentinel Series are no longer supported by DataView. See bottom of the page for a compatible version

Supported Operating Systems:
Windows 10 (32 & 64 Bit)
Widows 11 Pro

Minimum System Requirements

Click here for the Minimum System Requirements


Below are the individual DataView component installers

This is the DataView core report generation software without any control panels

DataviewCore3630010.exe

DV Release Notes

NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.

This control panel supports models: 1110, 1246, 1227, 1510, 1550, 1821, 1822, 1823, L452, DL913, and DL914

Download v2.02.0303 .exe format

DL Release Notes

This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.

This control panel supports model 8510

Download v1.02.0006 .exe format

This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.

This control panel supports model 6417

Download v1.02.0011 .exe format

GTC Release Notes

This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.

This control panel supports models: 6470, 6470-B, 6471, 6472, and 6474

Download v1.06.0009 .exe format

GTT Release Notes

This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.

This control panel supports models: 6116, 6116N, and 6117

Download v1.07.0022 .exe format

This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.

This control panel supports models: 1060, 5060, 5070, 6550, 6555, 6526, 6532, and 6534

Download v4.02.0086 .exe format

MCP Release Notes

This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.

This control panel supports models: 6240, 6250, 6255, and 6292

Download v1.07.0005 .exe format

This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.

This control panel supports models: 8220, 8230, 3945, 3945-B, 407, 607, and 8335 (if using firmware ≤2.8)

38MB Download v3.08.0019 .zip format

This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.

This control panel supports models: 8333, 8335 (if using firmware >2.8), 8336, 8435, 8436

Download v1.08.16142 .exe format

PowerPad® III Release Notes

This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.

This control panel supports models: 8345

Download v1.4.15803 .exe format

This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.

This control panel supports models: PEL 52, PEL 102, PEL 103, and PEL 105

Download v2.09.16216 .exe format

PEL Release Notes

This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.

This control panel supports models: L261, L264, CL601, L702, L101, L102, L104, L642, L111, L432, AL834, ML912, ML914, L322, L562, L564, L404, and L481

Download v1.05.0014 .exe format

SL II Release Notes

This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.


NOTE: PQL Loggers and Sentinel Series are no longer supported by DataView.

To obtain an older version of DataView that is compatible for these instruments, click the link below:

Download v3.09.0008 - .zip format

Supported Operating Systems:
Windows 8/8.1 (32 & 64 Bit)
Windows 10 (32 & 64 Bit)

PowerPad IV 8345 Control Panel

Version v1.4.15803 | Release Date: April 16, 2024

This control panel supports models: 8345

Download PAT3-1415803 .exe format

Release Notes

This control panel requires Dataview version 3.60.0018 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.

DataView Ver. 3.61.0008 Release Notes   |   Models Supported by DataView

IMPORTANT:

  • Back-up all template files before installation to ensure that they do not get overwritten.
  • Uninstall previous versions of DataView before installing a new version.
  • PQL Loggers and Sentinel Series are no longer supported by DataView. See bottom of the page for a compatible version

Supported Operating Systems:
Windows 10 (32 & 64 Bit)
Widows 11 Pro

Click here for the Minimum System Requirements

Application Notes

Glossary of Power Terms

Harmonics: A Brief Introduction

True RMS, True InRush®, and True Megohmmeter®

Glosario de Términos Eléctricos

White Papers

For Electrical Power, Quality Matters

Forms

High Voltage Warning Sign (color)

High Voltage Warning Sign (black & white)

Firmware

PowerPad® IV Model 8345 - Firmware

Videos

Battery Pack (Cat. #2960.47) Replacement Procedure (PowerPad ® IV 8345, OX 9000 Series, Installation Testers CA 6116N & CA 6117

The New AEMC® Instruments Three-Phase, Class A PowerPad® IV Model 8345

AEMC® Instruments Joins Protec Power Hour LIVE!

Start a Remote Session via Wi-Fi with the PowerPad® IV Model 8345

PowerPad® IV Model 8345 Firmware Upgrade (Version 1.10)

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
2133.76 Extra Large Carrying Bag with Rubber Bottom for Models: 8345, OX 90602 IV, OX 9102 IV, OX 9104 IV, OX 9304 IV,
Dimensions: (22.5 x 12.5 x 7.5) in 		$136.00 Consult Factory for Availability
MR193-BK 2140.28 AC/DC Current Probe Model MR193-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435 & PEL Series $489.00
MN93-BK 2140.32 AC Current Probe Model MN93-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 $240.00
SR193-BK 2140.33 AC Current Probe Model SR193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 $409.00

193-24-BK 		2140.34 AmpFlex® Sensor 24" Model 193-24-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $320.00

193-36-BK 		2140.35 AmpFlex® Sensor 36" Model 193-36-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $370.00
MN193-BK 2140.36 AC Current Probe Model MN193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 $329.00
2140.43 Set of 5, Black 10 ft (3M) with (5) Black Alligator Clips, Replacement for Models 8333, 8335, 8336 & 8345 {Leads rated 1000 V CAT IV 10 A, Clips rated 1000 V CAT IV 15 A, UL} $128.00
2140.44 Lead – One 10 ft (3M) Black Lead w/Black Alligator Clip {Lead rated 1000 V CAT IV 15 A, Clip rated 1000 V CAT IV 15 A, UL} for PowerPad® & PEL series $31.00
2140.45 Replacement - Set of 12, color input ID markers for the PowerPad Series $36.00
MA193-10-BK 2140.48 MiniFlex® Sensor 10" Model MA193-10-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $275.00
2140.50 2140.50 MiniFlex® Sensor 14" Model MA193-14-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $299.00
MA194-24-BK 2140.80 MiniFlex® Sensor Model MA194-24-BK (Replaces Cat. #2140.78) for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $330.00 Consult Factory for Availability
MN94 2140.81 AC Current Probe Model MN94 (200AAC) USED ONLY WITH MODELS 8345 & PEL52 $370.00
E94 2140.82 AC/DC Current Probe Model E94 USED ONLY WITH MODEL 8345 $429.00
2960.47 Battery – Replacement 5.8AH 61.9Wh Li-ion Battery Pack for Models C.A6116N, C.A6117, OX9104-OX9304, & 8345

Instruction Sheet 		$350.00 Consult Factory for Availability
5100.14 5100.14 - Adapter - Replacement power plug for PA32ER power supply $29.50
5100.15 5100.15 - Adapter - Replacement 1000 V PA32ER Power Supply for Model 8345 $650.00 Consult Factory for Availability
5100.16 5100.16 - Magnetic Hook for use with PowerPad® IV Model 8345 $90.00
6000.07 Calibration Interface Adapter for Data Logger Models L104, L564, PowerPad® and PEL Series $265.00
2140.46 Cable - 5 ft USB cable for Model 6290, 6292, 8333, 8335, 8336, 8345, 8435, 8436, C.A 6116, C.A 1727 and PEL Series (DISCONTINUED replaced by 2136.80 ) $0.00 Discontinued
Model
Cat. #2133.76
DescriptionExtra Large Carrying Bag with Rubber Bottom for Models: 8345, OX 90602 IV, OX 9102 IV, OX 9104 IV, OX 9304 IV,
Dimensions: (22.5 x 12.5 x 7.5) in
List Price$136.00
Consult Factory for Availability
Model MR193-BK
Cat. #2140.28
DescriptionAC/DC Current Probe Model MR193-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435 & PEL Series
List Price$489.00
Model MN93-BK
Cat. #2140.32
DescriptionAC Current Probe Model MN93-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564
List Price$240.00
Model SR193-BK
Cat. #2140.33
DescriptionAC Current Probe Model SR193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564
List Price$409.00
Model
193-24-BK
Cat. #2140.34
DescriptionAmpFlex® Sensor 24" Model 193-24-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price$320.00
Model
193-36-BK
Cat. #2140.35
DescriptionAmpFlex® Sensor 36" Model 193-36-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price$370.00
Model MN193-BK
Cat. #2140.36
DescriptionAC Current Probe Model MN193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564
List Price$329.00
Model
Cat. #2140.43
DescriptionSet of 5, Black 10 ft (3M) with (5) Black Alligator Clips, Replacement for Models 8333, 8335, 8336 & 8345 {Leads rated 1000 V CAT IV 10 A, Clips rated 1000 V CAT IV 15 A, UL}
List Price$128.00
Model
Cat. #2140.44
DescriptionLead – One 10 ft (3M) Black Lead w/Black Alligator Clip {Lead rated 1000 V CAT IV 15 A, Clip rated 1000 V CAT IV 15 A, UL} for PowerPad® & PEL series
List Price$31.00
Model
Cat. #2140.45
DescriptionReplacement - Set of 12, color input ID markers for the PowerPad Series
List Price$36.00
Model MA193-10-BK
Cat. #2140.48
DescriptionMiniFlex® Sensor 10" Model MA193-10-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price$275.00
Model 2140.50
Cat. #2140.50
DescriptionMiniFlex® Sensor 14" Model MA193-14-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price$299.00
Model MA194-24-BK
Cat. #2140.80
DescriptionMiniFlex® Sensor Model MA194-24-BK (Replaces Cat. #2140.78) for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price$330.00
Consult Factory for Availability
Model MN94
Cat. #2140.81
DescriptionAC Current Probe Model MN94 (200AAC) USED ONLY WITH MODELS 8345 & PEL52
List Price$370.00
Model E94
Cat. #2140.82
DescriptionAC/DC Current Probe Model E94 USED ONLY WITH MODEL 8345
List Price$429.00
Model
Cat. #2960.47
DescriptionBattery – Replacement 5.8AH 61.9Wh Li-ion Battery Pack for Models C.A6116N, C.A6117, OX9104-OX9304, & 8345

Instruction Sheet
List Price$350.00
Consult Factory for Availability
Model
Cat. #5100.14
Description5100.14 - Adapter - Replacement power plug for PA32ER power supply
List Price$29.50
Model
Cat. #5100.15
Description5100.15 - Adapter - Replacement 1000 V PA32ER Power Supply for Model 8345
List Price$650.00
Consult Factory for Availability
Model
Cat. #5100.16
Description5100.16 - Magnetic Hook for use with PowerPad® IV Model 8345
List Price$90.00
Model
Cat. #6000.07
DescriptionCalibration Interface Adapter for Data Logger Models L104, L564, PowerPad® and PEL Series
List Price$265.00
Model
Cat. #2140.46
DescriptionCable - 5 ft USB cable for Model 6290, 6292, 8333, 8335, 8336, 8345, 8435, 8436, C.A 6116, C.A 1727 and PEL Series (DISCONTINUED replaced by 2136.80 )
List Price$0.00
Discontinued

Related Products

DISCOVER THE CHAUVIN® ARNOUX GROUP
