Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
---|---|---|---|---|---|
8336 | 2136.30 | PowerPad® III Model 8336 (No Probes) | $5,650.00 | In stock at factory. Find a Distributor |
|

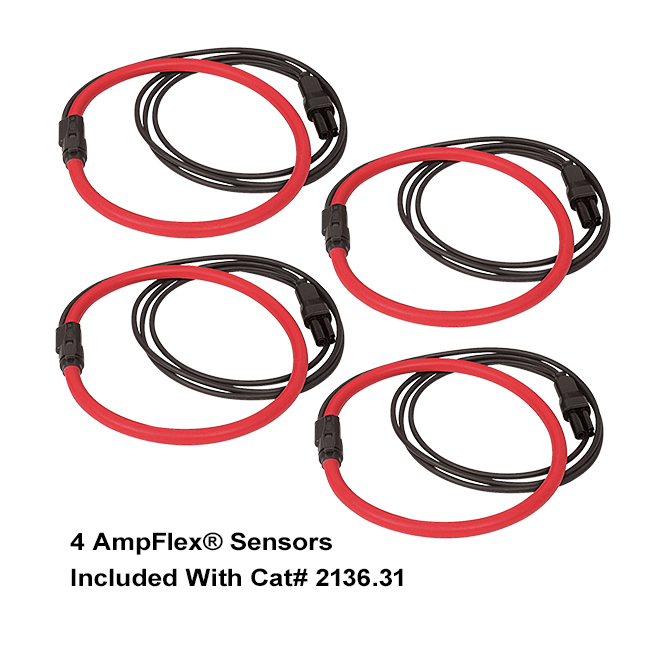

8336 | 2136.31 | PowerPad® III Model 8336 w/4 193-24-BK AmpFlex® Sensors | $6,625.00 | Consult Factory for Availability |
|

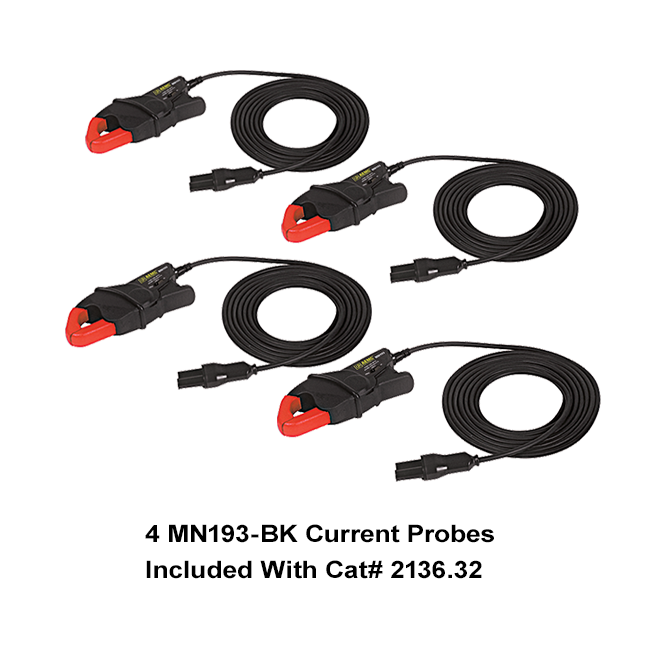

8336 | 2136.32 | PowerPad® III Model 8336 w/4 MN193-BK Probes | $6,695.00 | Consult Factory for Availability |
|
|
||||||||||
|
||||||||||
|
Model 8336 - Cat. #2136.30: Includes extra-large tool bag, soft carrying pouch, (5) black 10 ft voltage leads, (5) black alligator clips, (12) color-coded input ID markers, 5 ft USB cable, 9.6 V NiMH battery, (110/240) V power adapter with US power cord, printed SD-Card Quick Start Guide, and USB stick with DataView® software and a user manual.
Model 8336 Kit - Cat. #2136.31: Includes extra-large tool bag, soft carrying pouch, (4) 193-24-BK AmpFlex® sensors, (5) black 10 ft voltage leads, (5) black alligator clips, (12) color-coded input ID markers, 5 ft USB cable, 9.6 V NiMH battery, (110/240) V power adapter with US power cord, printed SD-Card Quick Start Guide, and USB stick with DataView® software and a user manual..
Model 8336 Kit - Cat. #2136.32: Includes extra-large tool bag, soft carrying pouch, (4) MN193-BK probes, (5) black 10 ft voltage leads, (5) black alligator clips, (12) color-coded input ID markers, 5 ft USB cable, 9.6 V NiMH battery, (110/240) V power adapter with US power cord, printed SD-Card Quick Start Guide, and USB stick with DataView® software and a user manual.

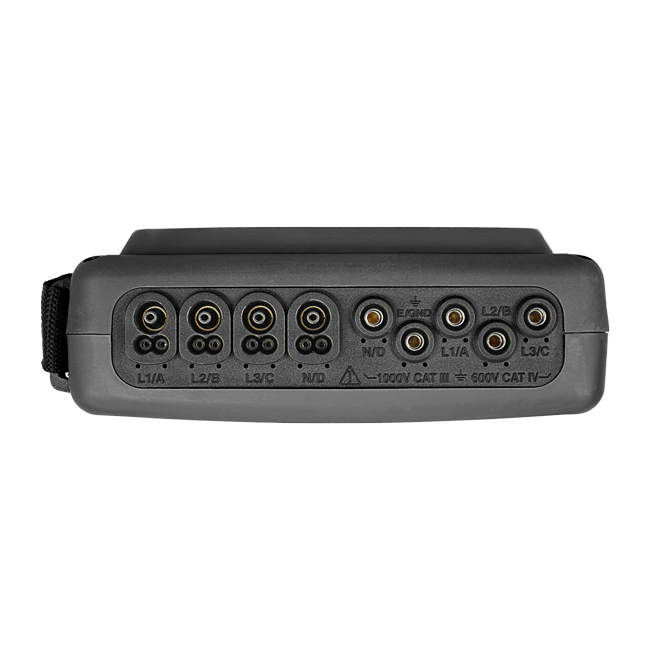

Inputs | 4 Voltage / 4 Current | ||||
Sample Rate | 256 per Cycle | 12.8 kHz at 50 Hz | 15.36 kHz at 60 Hz | ||
Specification | Range | Measurement Range | Resolution | Accuracy (Typical) | |
Volt | |||||
Vrms (AC + DC) | 1000 V P to N 2000 V P to P |
(2 to 1000) V | 0.1 V | ±0.5 % Rdg + 200 mV | |
Vpk | 1414 V | (2 to 1000) V | 0.1 V | ±3 % Rdg + 2 V | |
Vrms Half Cycle | 1000 V P to N 2000 V P to P |
(2 to 1000) V | 0.1 V | ±0.8 % Rdg + 1 V | |
Amps (accuracy excluding clamp accuracy) | |||||
Amps (AC + DC) | SR193 & MR193 MN193 5A MN193 100A |
(1 to 1000) A 5 mA to 5 A 100 mA to 100 A |
0.1 A 1 mA 10 mA |
±0.5 % Rdg + 200 mA ±0.5 % Rdg + 2 mA ±0.5 % Rdg + 20 mA |
|
AmpFlex & MiniFlex | Range 100A Range 6500A Range 10kA |
100 mA to 100 A (10 to 6500) A 10 A to 10 kA |
1 mA 0.1 A & 1 A 1 A |
±0.5 % Rdg + 30 mA ±0.5 % Rdg + 3 A ±0.5 % Rdg + 3 A |
|
Apk | SR193 & MR193 MN193 5A MN193 100A |
(1 to 1,414) A 5 mA to 7.017 A 100 mA to 141.4 A |
0.1 A 1 mA 10 mA |
±1 % Rdg + 2 A ±1 % Rdg + 20 mA ±1 % Rdg + 200 mA |
|
Apk AmpFlex & MiniFlex |
Range 100 A Range 6500 A Range 10 kA |
100 mA to 100 A (10 to 6500) A 10 A to 10 kA |
1 A 0.1 A & 1 A 1 A |
±3 % Rdg + 600 mA ±3 % Rdg + 5 A ±3 % Rdg + 5 A |
|
A Half Cycle | SR193 &MR193 MN193 5A MN193 100A |
(1 to 1200) A 5 mA to 6 A 100 mA to 120 A |
0.1 A 1 mA 10 mA |
±1 % Rdg + 1 A ±1 % Rdg + 10 mA ±1 % Rdg + 100 mA |
|
Frequency | (40 to 70) Hz | 0.01 | ±0.01 Hz | ||
Power | |||||
Watts (VA, var) P-Q-S |
Probes: AmpFlex MiniFlex |
10 mW to 10 MW 10 mW to 10 MW |
4 digits min 4 digits min |
±1 % Rdg ±1.5 % Rdg |
|
Power Factor (Cos Φ/DPF) | -1 to 1 | 0.001 | ±1 ° for Φ, +5 cts for cos Φ |
||
Energy | |||||
kWh (kVAh, kvarh) P-Q-S | (1 to 9,999,999Wh (MVAh, Mvarh) | ±1 % Rdg | |||
Harmonics | DC, 1 to 50 | ||||
Volts & Amp % | f r Absolute V Absolute A THD |
(0.0 to 1500) % (0.0 to 100) % (0.0 to 1000) V (0.0 to 1000) A (0.0 to 999.9) % |
0.1 % 0.1 % 0.1 V 0.1 A 0.1 % |
±2.5 % Rdg + 5 cts ±2.5 % Rdg + 5 cts ±2.5 % Rdg + 1 V ±2 % Rdg + 1 A ±2.5 % Rdg + 5 cts |
|
Phase Angle | (-179 to 180) °) | 1 ° | ±1.5 ° +1 °x (n/12.5) | ||
Also display Energy loss, Flicker, Plt (2H), Pst (10min), Unbalance V% & A% | |||||
General Features | |||||
Programmable Alarm | Up to 40 types: 16,000 recorded max. | ||||
Transient capture | Up to 210 | ||||
Snapshot | Up to 50 (screen BMP + all channels data) | ||||
Interface | Isolated USB, SD card slot accessible under instrument battery for direct transfer to PC, Dataview® software for real time data, configuration and reporting included | ||||
Memory | SD card (SDHC compliant, not formatted) standard, for trend Data, Internal memory for In-Rush, transients and alarms | ||||
Display | Color TFT 320 x 240 (1/4 VGA) with graphic representation of system parameters and measurements | ||||
Real-Time Clock | Time and date stamp for Trend mode, Transient display, System Monitor and event capture | ||||
Power Supply | Rechargeable 9.6 V NiMH battery pack, External charger | ||||
Charging Time | (90 to 264) VAC (50/60) Hz | 6 h approx. | |||
Battery Life | > 13 h when display ON, 25 h when recording with display OFF | ||||
Dimensions (L x W x H) | (9.8 x 7.9 x 2.6) in (250 x 200 x 67) mm | ||||
Weight | 4.3 lbs (1.95 kg) | ||||
Altitude Operating | 2000 m (6560 ft) | ||||
Operating Temperature | (32 to 108.5) °F (0 to 42.5) °C ≤ 85 % RH | ||||
Storage Temperature | (-4 to 158) °F (-20 to 70) °C ≤ 75 % RH without battery | ||||
IP Rating | IP53 per IEC 60529 | ||||
Safety | IEC/EN 61010-1 (1000 V CAT III-600 V CAT IV), IEC 1326-1 |
