Megohmmeters - Insulation Testers

Why Choose AEMC® Instruments Megohmmeters?

Complete Line of Megohmmeters

We know it’s essential for you to have the ability to properly determine the condition of the insulation on wire and motor windings to prevent damage of expensive equipment and unplanned shutdowns as well as ensure personal safety. That’s why we offer a full line of Megohmmeters with test voltages from 10V to 15kV (model dependent), capable of measuring insulation resistances from 1000 to 30TΩ. These rugged, weather resistant meters are accurate, reliable and built to perform. Battery, AC powered, and hand-cranked models are available.

Covering the Spectrum of Insulation Resistance Testing

Routinely using a megohmmeter to check both new installations and as a maintenance program helps to ensure your circuits are safe. Our instruments offer high-resistance testing up to 30TΩ. AEMC megohmmeters perform spot, timed, step voltage, and ramp voltage testing to measure resistance, Dielectric Absorption Ratio (DAR), Polarization Index (PI) and Dielectric discharge (DD).

Key Features

  • Over 130 years experience in the design and manufacture of megohmmeters – ensures you have a professional reliable instrument
  • Designed to the latest safety standards – your protection is top priority
  • Automated test functions and calculations – eliminates errors, saves time and money
  • Offers the widest range of insulation test instruments – allows you to choose the right instrument for your application
  • Simple easy to use, set up and get it right the first time

Powerful and Flexible Data Analysis Software

Our powerful DataView software is included to provide valuable insights about the condition of insulation on wires, cables and motor windings.

Megohmmeter Comparisons

We created the following all-in-one, one page comparison documents to help you select the best Megohmmeter for your specific needs.

Megohmmeter COMPARISON CHART - (Hard-case)
Megohmmeter COMPARISON CHART - (Hand-held)

Expert Tech Support

AEMC® provides complete technical support through our technical hot line 800-945-2362 (ext.351), speak directly to one of our tech support team members. Or e-mail your questions to our tech team. techsupport@aemc.com

Excellent Customer Service

Our knowledgeable and friendly service team provides the best support in the industry. We seek to understand your inquiry or feedback in a respectful and responsive way. Our goal at AEMC® is to surpass your expectations.

Request a Demo

Have questions on how to use AEMC® Megohmmeters? We're happy to provide a demonstration with our technical experts. Contact us at (800) 343-1391 or email us at sales@aemc.com

Megohmmeters - Insulation Testers

  •

    Megohmmeter Model 6529

    Cat. #2126.55
    Megohmmeter Model 6529 (Digital, 50V, 100V, 250V, 500V, 1kV, 420K-Ohm, V, Continuity, Alarm & Timer, PI/DAR)

    Model 6529 is a low cost 1000V hand-held instrument that offers Multimeter functions as well as Megohmmeter functions. It is a portable measuring instrument with a digital display. It is powered by batteries. This instrument can check the safety of electrical insulation. For example, it can be used to test new insulation before it is powered up, check existing insulation in a power-off condition, or troubleshoot potential faulty insulation.

  •

    Multi-Function Installation Tester Model C.A 6116N

    Cat. #2138.06
    Measures voltage, current via clamp, power, waveforms, and harmonics; includes DataView® software
    Multi-function instrument for testing continuity, resistance, insulation, earth and selective earth, loop impedances, type A and AC RCDs, voltage, frequency, current (via a clamp), active power, harmonics, and phase rotation. Stores up to 1,000 tests, which can be downloaded and processed with DataView® (included).

  •

    Electrostatic Discharge (ESD) Floor Test Kit (refurbished)

    Cat. #2155.57
    Electrostatic Discharge (ESD) Floor Test Kit for testing both point-to-ground and point-to-point electrostatic discharge.

  •

    Megohmmeter Model 6528 (Discontinued replaced by Cat.#2126.55)

    Cat. #2126.54
    Megohmmeter Model 6528 (Digital, 250V, 500V, 1kV, 420K-Ohm, V, Continuity, Alarm & Timer)

    Model 6528 is a low cost 1000V hand-held instrument that offers Multimeter functions as well as Megohmmeter functions. It is a portable measuring instrument with a digital display. It is powered by batteries. This instrument can check the safety of electrical insulation. For example, it can be used to test new insulation before it is powered up, check existing insulation in a power-off condition, or troubleshoot potential faulty insulation.

  •

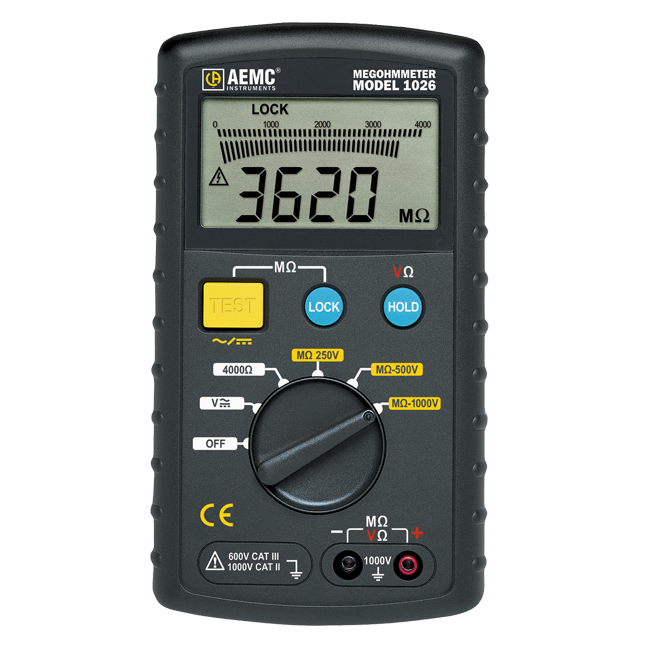

    Megohmmeter Model 1026 Discontinued

    Cat. #2117.72
    Digital 250V, 500V, 1000V, 4000Ω, V
    Hand-held meter for measuring insulation resistance from 1kΩ to 4000MΩ, using test voltages of 250V, 500V and 1000V. Also measures voltage, resistance, and continuity.

  •

    Megohmmeter Model 1039 (Discontinued, Replaced by Model 6526 or 6534)

    Cat. #2116.91

    (Discontinued, Replaced by Model 6526 or 6534)

  •

    Megohmmeter Model 1050 (Discontinued. See replacement: Model 1060 Cat#2130.03)

    Cat. #2130.01
    (Discontinued. See replacement: )
