NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
| Model | Cat. # | Description | List Price | Quantity/Status |
|---|---|---|---|---|

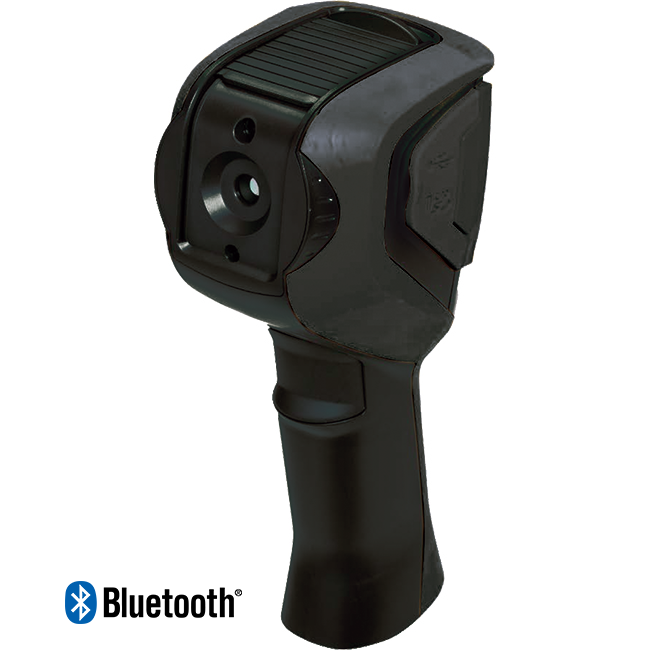

| 1954 (refurbished) | 901.2121.41 | Thermal Imaging IR Camera Model 1954 (Resolution 120 x 160) - (refurbished) | $2,390.00 Sale: $1,434.00 |
|
|
||||||||||
Model 1954 - Cat. #2121.41: Includes carrying case, eUSB cable, external battery charger, (4) 1.2 V AA NiMH rechargeable batteries, micro SD card with adapter, Bluetooth headset, quick start guide and a USB drive with CAmReport software, and user and software manuals (refurbished).
| DETECTOR SPECIFICATIONS | |
| Detector Resolution | 120 x 160 pixels |
| Type | UFPA microbolometer, 8-14 µm |
| Frequency | 9 Hz |
| Thermal Sensitivity (NETD) | 80 mK @ 86 °F (30° C) |
| TEMPERATURE MEASUREMENT | |
| Temperature Range | (-4 to 482) °F (-20 to 250) °C |
| Accuracy | ± 3.6 ° F (±2 °C) or ± 2 % of Reading |
| INFRARED IMAGE | |
| Field of View | (28 x 38) ° |
| IFOV (Spatial Resolution) | 4.1 mrad |
| Minimum Focus Distance | 0.98 ft (0.3 m), fixed focus |
| VISUAL IMAGE | |
| Resolution | 480 x 640 pixels |
| Minimum Focus Distance | 2 in (0.05 m), fixed focus |
| IMAGE PRESENTATION | |
| Images Displayed | Infrared image, visual image with automatic parallax compensation. Merging of both images is possible with included PC software |
| LCD Screen | 2.8 in (7.1 cm) |
| Freezing of Image | Animated or fixed image |
| Adjustment | Automatic or manual adjustment of palette min-max |
| Display Colors | Pseudo-colors, multiple palettes |
| FUNCTIONS FOR ANALYSIS | |
| Measurement Tools | 1 manual cursor + 1 automatic detection + Min-Max on adjustable area + temperature profile + Isotherm |
| Parameter Settings | Emissivity, environmental temperature, distance, relative humidity |
| Voice Recordings | Via Bluetooth headset (included) |

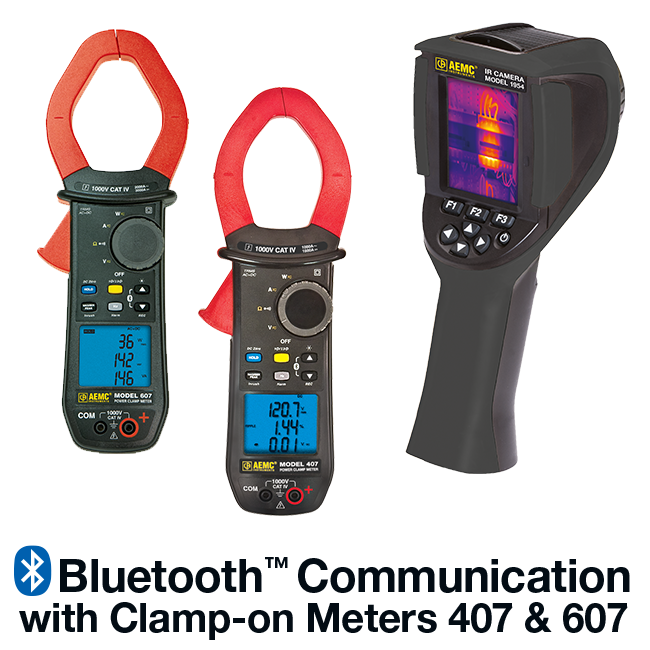

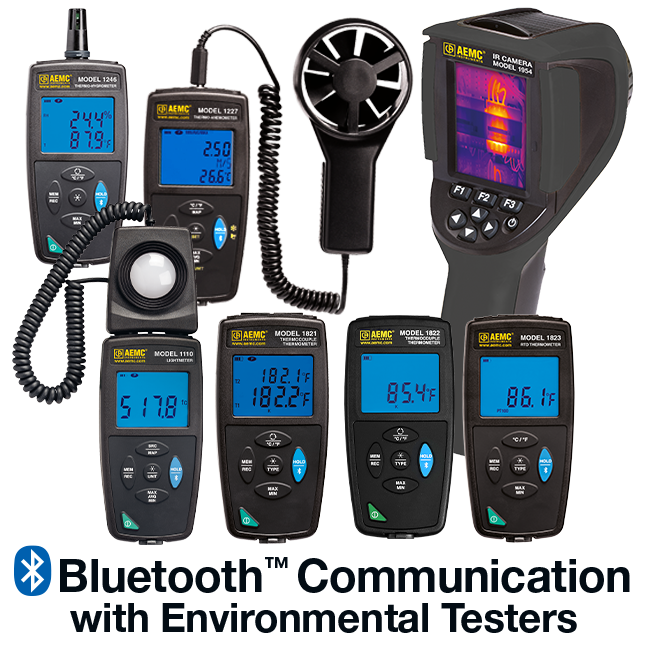

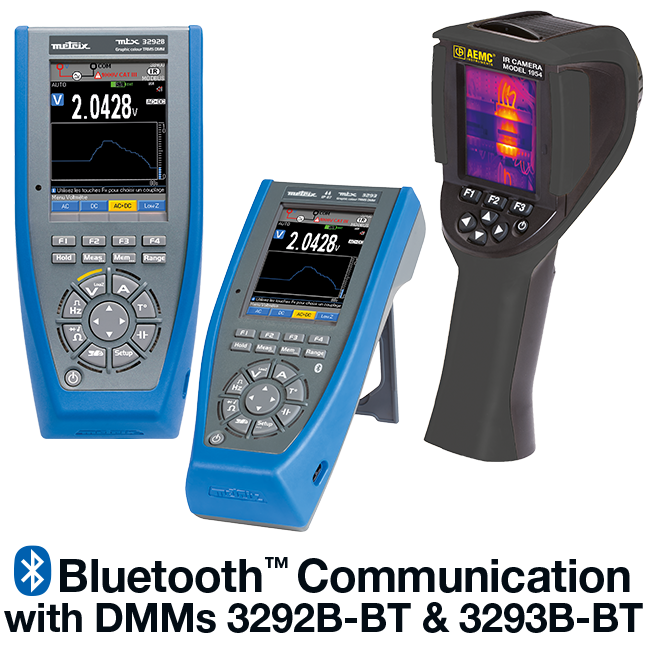

| External Measurements | AEMC current clamps 407, 607 and Multimeters MTX3292 and MTX3293 and logger models 1246 and 1821 |
| LASER POINTER | |
| Type | Class 2 645-655 nm power: 1 mW |
| GENERAL SPECIFICATIONS | |
| Data Storage | 2 GB micro SD card included (approx. 4,000 images) Replaceable with up to 32 GB SD card |
| Communication | USB link and Bluetooth |
| Tripod Mounting | 1/4 in insert on camera (tripod not included) |
| Software | CAmReport software included, for data analysis and report generation |
| Power Supply | (4) 1.2 V AA NiMH rechargeable batteries with charger included |
| Battery Life | 9 h typical (7 h minimum) |
| Operating Temperature | (-4 to 122) °F (-15 to 50) °C; 95 % RH |
| Storage Temperature | (-40 to 158) °F (-40 to 70) °C |
| Dimensions | (8.86 x 4.92 x 3.27) in (225 x 125 x 83) mm |
| Weight | 24.7 oz (700 g) with batteries |
| Ingress Protection | IP 54 |
| EMC | EN61326-1 |
| Safety | IEC 61010-1 Ed. 02 |
