AC/DC Current Probe Model MR526 (Replaces Model MR 521 Cat. #1200.69)

The MR526 is a hall effect current probe with 2 ranges designed for DMM and Data loggers. The probe has a 5 ft (1.5m) lead terminated by 4mm safety banana plug and can measure up to 1000AAC and 1400ADC. The probe is powered by a 9V battery or by a standard 5V external power supply via a micro-USB connector (not supplied).

The instrument's design includes internal temperature compensation.

Model

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.

Model	Cat. #	Description	List Price	Quantity/Status	Distributor Stock Check
MR526	1200.83	AC/DC Current Probe Model MR526 (Replaces Cat # 1200.69 - Model MR521) NIST Calibration ($75.00 each)	$445.00

Model	MR526
Cat. #	1200.83
Description	AC/DC Current Probe Model MR526 (Replaces Cat # 1200.69 - Model MR521)
List Price	$445.00
NIST Calibration ($75.00 each)

Cat. #	Description	List Price
2118.09	Case – General Carrying Case — Dimensions: (13 x 9.5 x 3) in	$73.50
2138.66	Cable – 6 ft USB Type A – Type B Micro (Replacement for Models L452, 1110, 1227, 1246, 1510, 1821, 1822, 1823) and may be used with MR415 to MR527 series.	$19.50
2153.78	Adapter – US Wall plug to USB (Replacement for Models L452, 1510, MH60) and may be used with Models 1110, 1227, 1246, 1821, 1822, 1823 & MR415 to MR527 series.	$21.00

Model
Cat. #	2118.09
Description	Case – General Carrying Case — Dimensions: (13 x 9.5 x 3) in
List Price	$73.50

Model

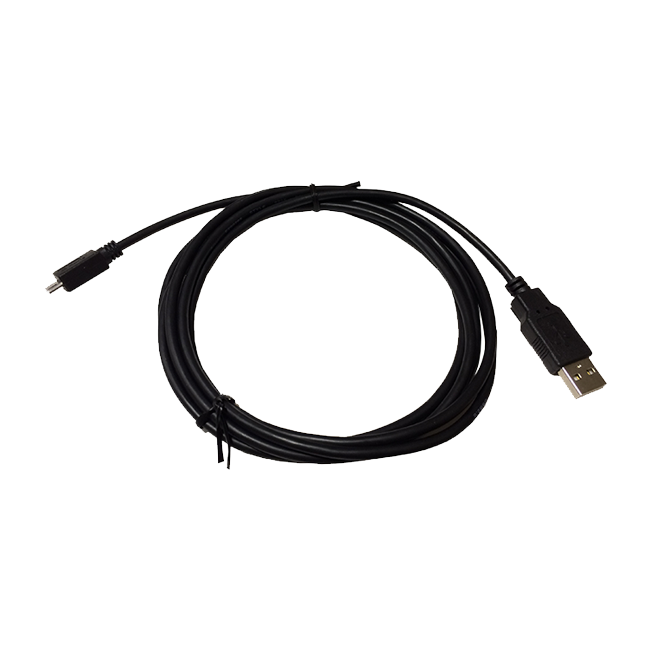

Cat. #	2138.66
Description	Cable – 6 ft USB Type A – Type B Micro (Replacement for Models L452, 1110, 1227, 1246, 1510, 1821, 1822, 1823) and may be used with MR415 to MR527 series.
List Price	$19.50

Model

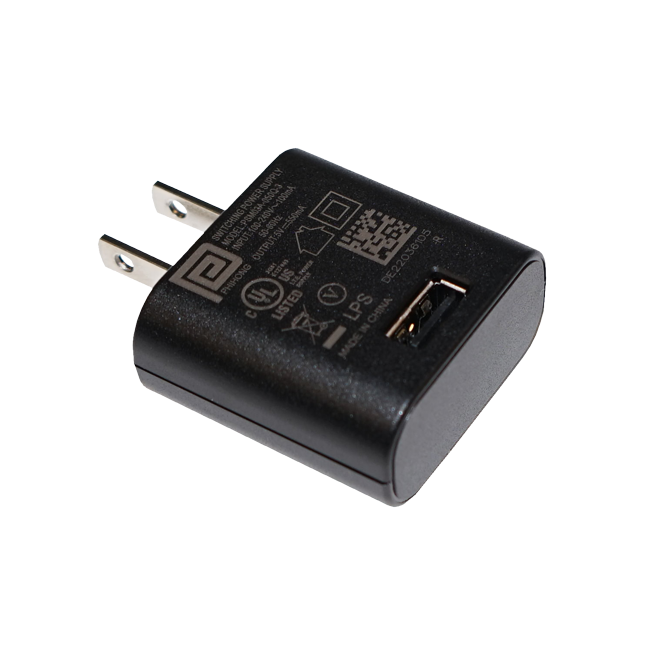

Cat. #	2153.78
Description	Adapter – US Wall plug to USB (Replacement for Models L452, 1510, MH60) and may be used with Models 1110, 1227, 1246, 1821, 1822, 1823 & MR415 to MR527 series.
List Price	$21.00

Maximum Conductor Size	Cables: One 1.5” (39mm) or two 1” (25.4mm) Bus Bar: One 1.97 x .49” (50 x 12.5mm) or two 0.98 x 0.2” (25 x 5mm); 1.24” x .30” (31.5 x 10mm) or three 0.98” x 0.31” (25 x 8mm)
Current Range	0.5 to 100A_AC, 150A_DC & 0.5 to 1000A_AC, 1400A_DC
Output Signal	10mV/A & 1mV/A via a 5ft (1.5m) lead with 4 mm safety banana plug
Accuracy 50/60Hz	≤1.5% @ 100A & ≤2.5% @ 800A
Frequency Range	DC to 30kHz (-3dB) (depending of current value)
Phase Shift At 50Hz	≤2°@ 100A ≤1.5° @ 800A
Load Impedance	>1MΩ and ≤100pF
Overload	3000A_DC or 1000A_AC continuous for < 1kHz
Zero Adjust	Automatic on both ranges
Power Supply	9V alkaline Battery (NEDA 1060A, 6LR61) or 5V DC Micro-USB type B
Battery Life	50H typical
Low Battery Indication	Green LED blinking
Overload Indication	Red LED on when measurement > than selected range
Dimensions (H x W x D)	9.31 x 3.82 x 1.73” (236.5 x 97 x 44mm)
Weight (with Battery)	1.15lbs (520g)
Operating Temperature	14° to +131°F (-10 to +55°C)
Storage Temperature	-40° to +176°F (-40 to +80°C)
Relative Humidity	Up to 85% @ 35°C
Ingress Protection (Ip)	IP 40
EMC	EN 61326-1
Safety Compliance	IEC 61010-1, EN 61010-2-32, Pollution Degree 2, 600V CAT III
