| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
| 6526 | 2155.53 | Megohmmeter Model 6526 | $945.00 | In stock at factory. Find a Distributor |
|
|
||||||||||

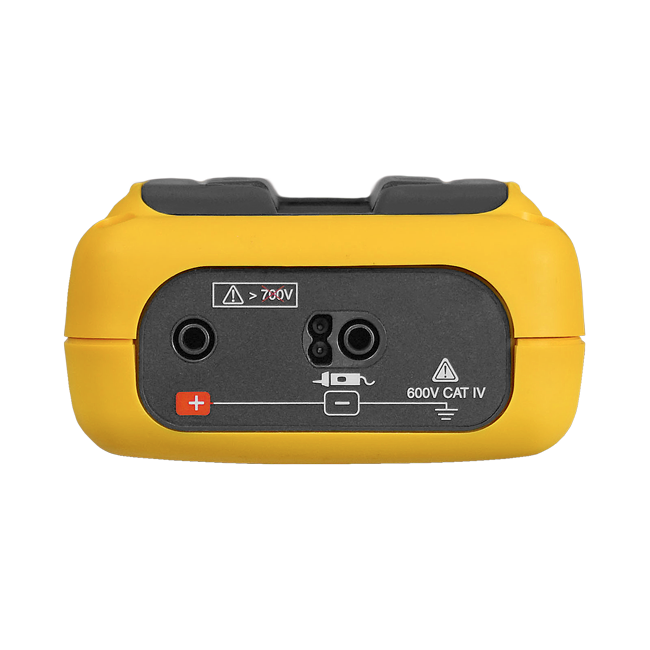

Model 6526 - Cat. #2155.53: Includes a soft carrying case, (2) 5 ft color-coded leads (red/black), (2) color-coded alligator clips (red/black), (1) black test probe, (6) AA batteries and a user manual.
| AC/DC Voltage Measurement | |
| Range | (0.3 to 700) V |
| Accuracy | ±(3 % R + 2 ct) |
| Resolution | (1 to 99.9) V: 0.1 V (100 to 999) V: 1 V (1000 to 4000) V: 2V |
| Frequency Range | DC and (15.3 to 800) Hz |
| Input Impedance | 400 kΩ |
| Insulation Measurement | |
| Test Voltage / Resistance Range | 50 V: 10 kΩ to 10 GΩ 100 V: 20 kΩ to 20 GΩ 250 V: 50 kΩ to 50 GΩ 500 V: 100 kΩ to 100 GΩ 1000 V: 200 kΩ to 200 GΩ |
| Measurement Accuracy | 50 V: ±(3 % R + 2 ct) +2 % / GΩ 100 V: ±(3% R + 2 ct) +1% / GΩ 250 V: ±(3% R + 2 ct) +0.4% / GΩ 500 V: ±(3% R + 2 ct) +0.2% / GΩ 1000 V: ±(3% R + 2 ct) +0.1% / GΩ |
| Auto Discharge | Discharge time < 2s/µF From Vtest to 25 V |
| Live Circuit Indicator | Inhibit test if terminal voltage > 25 V prior to initialization of test |
| Continuity Measurement | |
| Ranges | 0.00 to 10 Ω (200 mA test current) 0.0 to 100 Ω (20 mA test current) |
| Accuracy | ± (2% R + 2 ct) with lead compensation |
| Open Voltage | ≥ 6 V |
| Resistance Measurement | |
| Range | 1 Ω to 1000 kΩ |
| Accuracy | ± (3% R + 2 ct) |
| Open Voltage | Approximately 4.5 V |
| General Features | |
| Programmable Alarm | Yes |
| DAR – PI | Yes |
| Timer | 0:00 to 39:59 min, with 1 s resolution |
| Frequency Measurement | (15.3 to 800) Hz |
| Capacitance Measurement | 0.1 nF to 10 µF |
| Display | Backlit digital with bargraph |
| Memory | 1300 tests |
| Communication | Bluetooth 2.1 Class II |
| Software | DataView (included) |
| Power Supply | (6) AA batteries (NEDA 15 A or IEC LR6) |
| Battery Life | ≥ 1500 IR tests at 1000 V into 1 MΩ with a duty cycle of 5 s on and 1 min off. ≥ 3000 R tests of 1 Ω with a duty cycle of 5 s on and 1 min off. |
| Dimensions | (8.31 x 4.25 x 2.36) in (211 x 108 x 60) mm |
| Weight | 1.87 lb (850 g) |
| Altitude Operating | 2000 m |
| Operating Temperature | (-4 to 131) °F (-20° to +55) °C; (20 to 80) % RH |
| Storage Temperature | (-22 to 176) °F (-30 to 80) °C; (10 to 90) % RH, without batteries |
| IP Rating | IP 54 |
| Safety Compliance | IEC/EN 61010-1, 600 V CAT IV, IEC 61557 |
