| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
| 6417 | 2141.02 | Ground Resistance Tester Model 6417 | $1,990.00 | In stock at factory. Find a Distributor |
|
|
||||||||||
Model 6417 - Cat. #2141.02: Includes hard carrying case, calibration loop, Bluetooth USB adapter,(4) 1.5V AA batteries, printed Quick Start Guide, and a USB thumb drive with DataView® software, Ground Resistance Testing workbook and a user manual.
| Ground Resistance Measurement (Auto-Ranging 1 to 199Ω) | ||
| Measurement Range | Resolution | Accuracy |
| (0.010 to 0.099) Ω | 0.001 Ω | ±(1.5 %Reading +0.01 Ω) |
| (0.10 to 0.99) Ω | 0.01 Ω | ±(1.5 %Reading +0.02 Ω) |
| (1 to 49.9) Ω | 0.1 Ω | ±(1.5 % Reading +0.1 Ω) |
| (50.0 to 99.5) Ω | 0.5 Ω | ±(2 % Reading +0.5 Ω) |
| (100 to 199) Ω | 1 Ω | ±(3 % Reading +1 Ω) |
| ( 200 to 395) Ω | 5 Ω | ±(5 % Reading +5 Ω) |
| (400 to 590) Ω | 10 Ω | ±(10 % Reading +10 Ω) |
| ( 600 to 1150) Ω | 50 Ω | 20 % approx. |
| (1200 to 1500) Ω | 50 Ω | 25 % approx. |
| Alarm | Adjustable from (1 to 199) Ω | |
| Frequency Selection | Choice of (50, 60, 128, or 2083) Hz for impedance calculation | |
| Maximum Overload | Permanent current: 100 max. 50/60 Hz Transient current: (<5 s) 200 A 50/60 Hz |
|
| Current Measurement Range (Auto-Ranging) | ||
| Measurement Range | Resolution | Accuracy |
| (0.200 to 0.999) mA | 1µ A | ±(2 % Reading +50 µA) |
| (1.000 to 2.990) mA | 10 µA | ±(2 % Reading +50 µA) |
| (3.00 to 9.99) mA | 10 µA | ±(2 % Reading +50 µA) |
| (10.00 to 29.99) mA | 100 µA | ±(2 % Reading +100 µA) |
| (30.0 to 99.9) mA | 100 µA | ±(2 % Reading +100 µA) |
| (100 to 299.9) mA | 1 mA | ±(2 % Reading +1 mA) |
| (0.300 to 0.990) A | 1 mA | ±(2 % Reading +1 mA) |
| (1.000 to 2.999) A | 10 mA | ±(2 % Reading +10 mA) |
| (3.00 to 39.99) A | 10 mA | ±(2 % Reading +10 mA) |
| Loop Inductance Measurement | ||
| Measurement range | Resolution | Accuracy |
| (10 to 100) µH | 1 µH | ±(5 % Reading +1 µH) |
| (100 to 500) µH | 1 µH | ±(3 % Reading +1 µH) |
| Contact Voltage (Touch Voltage) Calculated | ||
| Measurement range | Resolution | Accuracy |
| (0.1 to 4.9) V | 0.1 V | ±(5 % Reading +0.1 V) |
| (5.0 to 49.5) V | 0.5 V | ±(5 % Reading +0.5 V) |
| (50 to 75.0) V | 1 V | ±(10 % Reading +1 V) |
| General Features | ||
| Display | OLED, 152 segments (48x39) mm | |
| Memory | 2000 measurements | |
| Communication | Bluetooth, DataView software included | |
| Alarm | 3 separate alarms (Ω, V and A) | |
| Power Source | (4) x1.5 V LR6 (AA) alkaline batteries or 4 NiMH batteries | |
| Battery Life | 12 hours or 1440 30-seconds tests approx. | |
| Jaw Opening | 1.38 in (35mm) max | |
| Dimensions | (2.16 x 3.74 x 10.31) in (55 x 95 x 262) mm | |
| Weight (with Battery) | 2.06 lbs (935 g) | |
| Operating Temperature | (-4° to +131) °F (-20 to +55) °C | |
| Storage Temperature | (-22° to +158) °F (-30 to +70) °C | |
| Relative Humidity | Up to 90 % @ 40 °C | |
| Ingress Protection (IP) | IP 40 | |
| EMC | EN 61326-1 | |
| Safety Compliance | IEC 61010-1, EN 61010-2-30, EN 61010-2-32, Pollution Degree 2, 600 V CAT IV  |
|
User Manuals
Model 6417 - English
Model 6417 - French (CA France version)
Modelos 6416 y 6417 - Español (CA France version)
Quick Start Guides
Datasheets
Brochures
Ground Resistance Testers Brochure
Clamp-on Ground Testers Model 6416 & 6417
AEMC® Instruments Product Line Brochure
AEMC® Instruments Product Line Brochure (FR CAN)
Rent Now
Comparison Charts
Software
Application Notes
App-Touch-Step-Potential
App-Touch-Step-Potential_Español
Megohmmeter Calibration Checker and Ground Resistance Checker
Clamp-on Ground Resistance Testers (6416. 6417, 6418) Usage Guide
Why Measure Soil Resistivity?
Choosing a Ground Tester
Loop Alarm for Clamp-On Ground Testers Models 6416 and 6417
Workbooks
Forms
Stored Measurement Results Form
Fall-of-Potential Field Report - PDF
Fall-of-Potential Report - Excel
Soil Resistivity Made Easy - PDF
Ground Testing Nomograph - PDF
Ground Testing Nomograph Example
Slope Method Calculation - Automated way of calculating the S electrode placement when using the slope method.
Calculators
Slope Method Calculation - Automated way of calculating the S electrode placement when using the slope method
Three Measurement Method
Grounding Calculations and Charts - Excel
Grounding Electrode Resistance Calculator
Technical Bulletins
Watts Current Issue 21
Watts Current Issue 08
Watts Current Issue 04
Watts Current Issue 03
Watts Current Issue 02
Applications - Graphic Illustrations
Videos
Model 6416 & 6417 Clamp-On Ground Testers - Introduction
Ground Testers 6416 & 6417 OLED Display
Ground Tester 6417 App For Android
Choosing the Right Ground Resistance Tester
6416-6417 Clamp On - Loop Alarm
Understanding Ground Resistance Testing
What's New in DataView 3.50
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
|
2117.76 | Bag - Small Flat Black Canvas Bag for Ground/Accessories Dimensions: 17 x 6.5 x 2.75" |
$41.00 |
|
|
|
2119.48 | Multi-purpose Canvas Pouch for Ground Testers Models (6416-17), Clamp-on Meters Models (203, 401, 403-404, 601, 603), Power Meters Models (205, 405, 407, 605, 606-7), and Discontinued Models (3710-3731, 8220-30) Dimensions: (11 x 5 x 2.25) in |
$40.00 |
|
|
|
2119.82 | Multi-purpose Large Canvas Bag Dimensions: 22 x 10.5 x 12" |
$166.00 | Consult Factory for Availability |
|
|

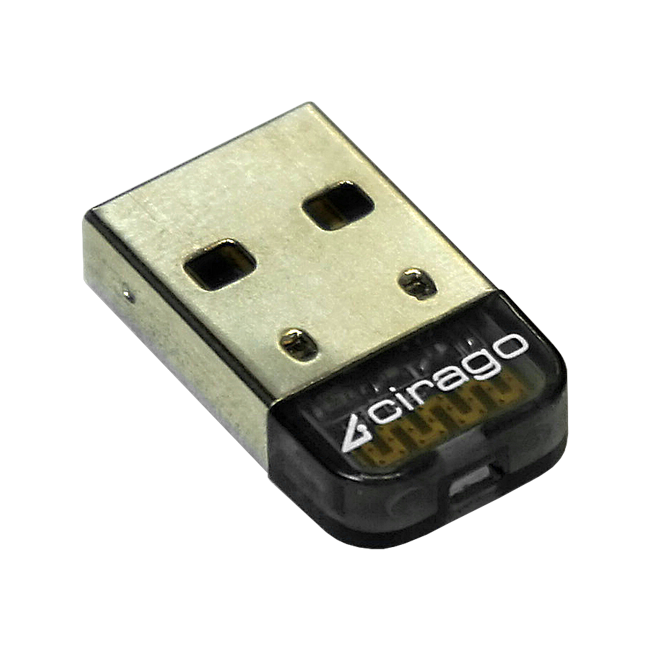

2126.45 | Adapter, Bluetooth USB for Simple Logger II 4-Channel Models, Models 6417, CA1510 & L452 | $37.50 |
|
|
|
