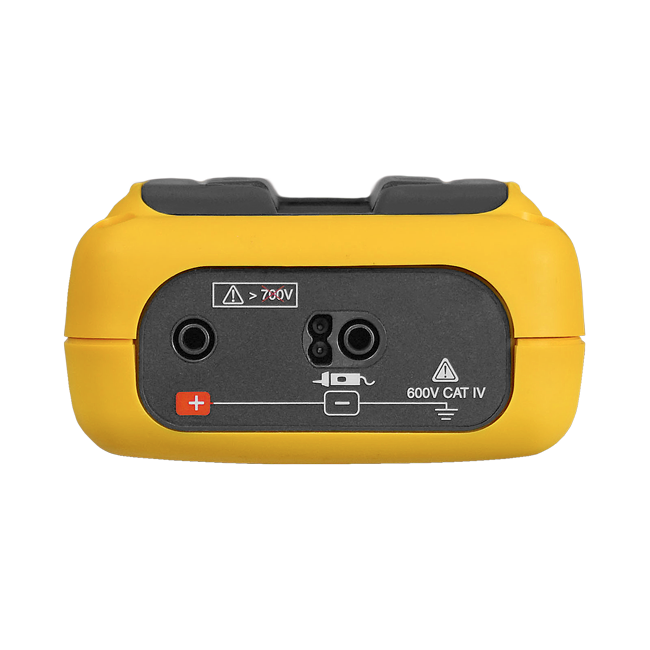

| 6534 | 2155.55 | Megohmmeter Model 6534 | $1,025.00 | In stock at factory. Find a Distributor |
|
|
||||||||||
Model 6534 - Cat. #2155.55: Includes a soft carrying case, (2) 5 ft color-coded (red/black) leads, (2) color-coded (red/black) alligator clips, (1) black test probe, (2) color-coded (red/black) grip probes, (6) AA batteries, Quick Start guide, USB stick with DataView® software and a user manual.
| AC/DC Voltage Measurement | |
| Range | 0.3 to 700V |
| Accuracy | ±(3% R + 2ct) |
| Resolution | 1 to 99.9V: 0.1V 100 to 999V: 1V 1000 to 4000V: 2V |
| Frequency Range | DC & 15.3 to 800Hz |
| Input Impedance | 400kΩ |
| Insulation Measurement | |
| Test Voltage / Resistance Range | 10V: 2kΩ to 1GΩ 25V: 5kΩ to 2GΩ 100V: 20kΩ to 10GΩ 250V: 50kΩ to 25GΩ 500V: 100kΩ to 50GΩ |
| Measurement Accuracy | 10V: ≤999kΩ: ± (4% R + 20 ct); ≥1.000MΩ± (3% R + 2 ct + 1%/100MΩ) 25V: ±(3% R + 2ct)+0.4%/100MΩ 100V: ±(3% R + 2ct)+1%/GΩ 250V: ±(3% R + 2ct)+0.4%/GΩ 500V: ±(3% R + 2ct)+0.2%/GΩ |
| Auto Discharge | Discharge time < 2s/µF From Vtest to 25V |
| Live Circuit Indicator | Inhibit test if terminal voltage > 25V prior to initialization of test |
| Continuity Measurement | |
| Ranges | 0.00 to 10Ω (200mA test current) 0.0 to 100Ω (20mA test current) |
| Accuracy | ± (2% R + 2ct) with lead compensation |
| Open Voltage | ≥ 6V |
| Resistance Measurement | |
| Range | 1Ω to 1000kΩ |
| Accuracy | ± (3% R + 2ct) |
| Open Voltage | Approximately 4.5V |
| General Features | |
| Programmable Alarm | Yes |
| Timer | 0:00 to 39:59mn, with 1s resolution |
| Display | Backlit digital with bargraph |
| Memory | 1300 tests |
| Communication | Bluetooth 2.1 Class II |
| Software | DataView (included) |
| Power Supply | Six AA batteries (NEDA 15A or IEC LR6) |
| Battery Life | ≥ 2500 IR tests at 500V into 500kΩ with a duty cycle of 5 seconds on and 1 min off. ≥ 3000 R tests of 1Ω with a duty cycle of 5 seconds on and 1min off. |
| Dimensions | 8.31 x 4.25 x 2.36” (211 x 108 x 60mm) |
| Weight | 1.87 lb (850g) |
| Altitude Operating | 2000m |
| Operating Temperature | -4° to +131°F (-20° to +55°C) & 20 to 80% RH |
| Storage Temperature | -22° to +176°F (-30° to +80°C) & 10 to 90% RH, without batteries |
| IP Rating | IP 54 |
| Safety Compliance | IEC/EN 61010-1, 600V CAT IV, IEC 61557 |
User Manuals
Quick Start Guides
Datasheets
Brochures
6500 Series
Megohmmeter Brochure
Electric Vehicle Maintenance - English
Electric Vehicle Maintenance - Español
AEMC® Instruments Product Line Brochure
AEMC® Instruments Product Line Brochure (FR CAN)
Comparison Charts
Software
Application Notes
An Introduction to Insulation Resistance Testing
True RMS, True InRush, and True Megohmmeter
Megohmmeter Calibration Checker and Ground Resistance Checker
Megohmmeter Insulation Testing After Flood Damage
Forms
Technical Bulletins
Videos
Understanding Insulation Resistance Testing
Hand-Held Megohmmeters
What's New in DataView 3.50
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
|
2119.02 | Carrying Pouch for Cable Tester, Megohmmeters, Multimeters, etc. Dimensions: 7.75 x 9.25 x 2.75" |
$49.00 |
|
|
|
2138.54 | Continuity Probe for use with Megohmmeters and Installation Testers | $121.00 |
|
|
|
2139.74 | Lead - Set of 2, 6.5ft Color-coded Red/Black Fused Leads (.63A) w/ 4mm Plug | $114.00 |
|
|
|

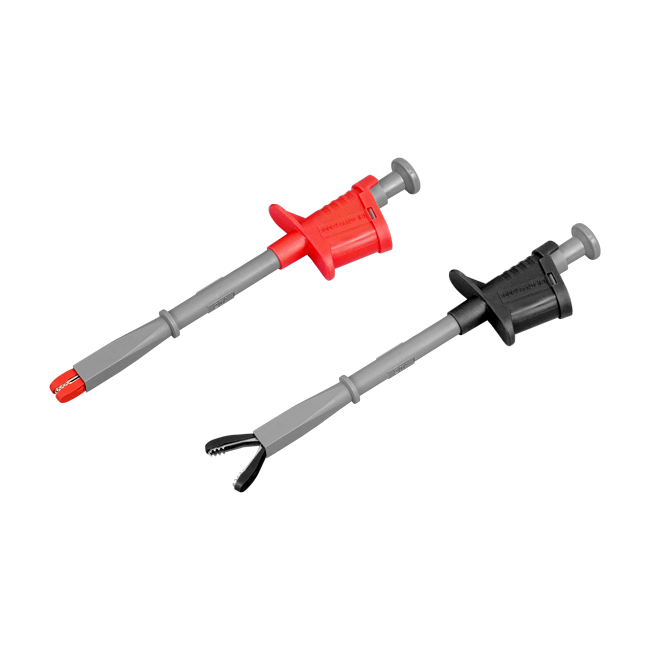

2152.26 | Probe-Set of 2, color-coded Grip Probes (Red/Black) 1000V CAT III 20A for use with Models 6532, 6534 & 6536 | $59.00 |
|
|
|
2152.28 | Lead - Set of 2, 6.5 ft. Color-coded (Red/Black) Fused Leads (0.63A); Two Screw-on Alligator Clips, Two Screw-on Test Probes, Set of 5, 0.63A Fuses (UL) | $189.00 | Consult Factory for Availability | |
|
2155.75 | Megohmmeter Test Probe (600V CAT IV) for Models 6522-6536, 6116N & 6117 | $255.00 |
|
|
|

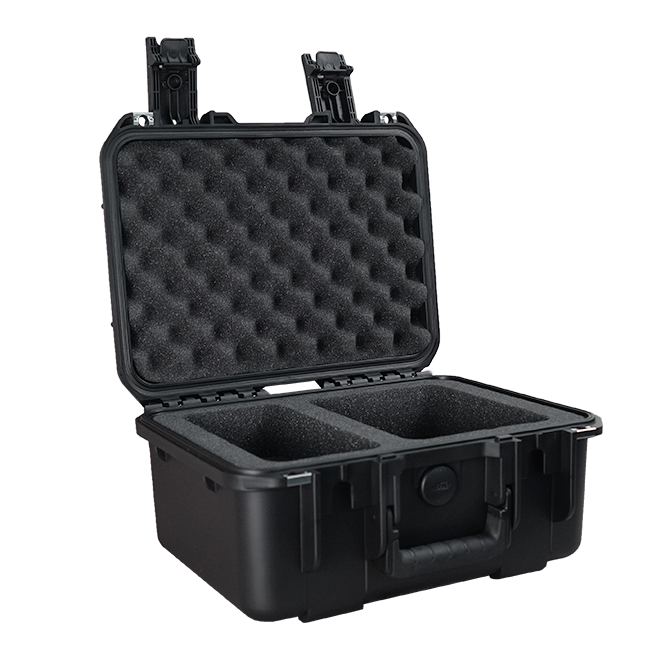

2155.77 | Case - Field Case for use with all Hand-Held Meters (IP67)
Replacements for Models 6536 ESD Kit & OX5042 Kit
Replacement for Cat#2118.98 |
$275.00 |
|
|
|

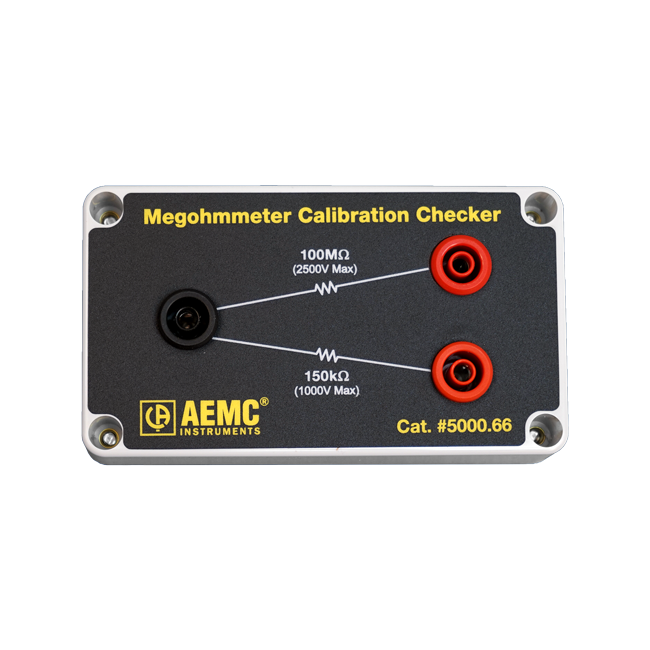

5000.66 | Megohmmeter calibration checker - provides two test resistances of 150kO and 100MO.
