| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
| 6416 | 2141.01 | Ground Resistance Tester Model 6416 | $1,695.00 | In stock at factory. Find a Distributor |
|
|
||||||||||
Model 6416 - Cat. #2141.01: Includes hard carrying case, calibration loop, (4) 1.5V AA batteries and a user manual.
| Ground Resistance Measurement (Auto-Ranging 1 to 199Ω) | ||
| Measurement Range | Resolution | Accuracy |
| 0.010 to 0.099Ω | 0.001Ω | ±(1.5%Reading +0.01Ω) |
| 0.10 to 0.99Ω | 0.01Ω | ±(1.5%Reading +0.02Ω) |
| 1 to 49.9Ω | 0.1Ω | ±(1.5% Reading +0.1Ω) |
| 50.0 to 99.5Ω | 0.5Ω | ±(2% Reading +0.5Ω) |
| 100 to 199Ω | 1Ω | ±(3% Reading +1Ω) |
| 200 to 395Ω | 5Ω | ±(5% Reading +5Ω) |
| 400 to 590Ω | 10Ω | ±(10% Reading +10Ω) |
| 600 to 1150Ω | 50Ω | 20% approx |
| 1200 to 1500Ω | 50Ω | 25% approx |
| Alarm | Adjustable from 1 to 199Ω | |
| Frequency Selection | Choice of 50, 60, 128, or 2083Hz for impedance calculation | |
| Maximum Overload | Permanent current: 100 max. 50/60Hz Transient current: (<5s) 200A 50/60Hz |
|
| Current Measurement Range (Auto-Ranging) | ||
| Measurement Range | Resolution | Accuracy |
| 0.200 to 0.999mA | 1µA | ±(2% Reading +50µA) |
| 1.000 to 2.990mA | 10µA | ±(2% Reading +50µA) |
| 3.00 to 9.99mA | 10µA | ±(2% Reading +50µA) |
| 10.00 to 29.99mA | 100µA | ±(2% Reading +100µA) |
| 30.0 to 99.9mA | 100µA | ±(2% Reading +100µA) |
| 100 to 299.9mA | 1mA | ±(2% Reading +1mA) |
| 0.300 to 0.990A | 1mA | ±(2% Reading +1mA) |
| 1.000 to 2.999A | 10mA | ±(2% Reading +10mA) |
| 3.00 to 39.99A | 10mA | ±(2% Reading +10mA) |
| Loop Inductance Measurement | ||
| Measurement range | Resolution | Accuracy |
| 10 to 100µH | 1µH | ±(5% Reading +1µH) |
| 100 to 500µH | 1µH | ±(3% Reading +1µH) |
| Contact Voltage (Touch Voltage) Calculated | ||
| Measurement range | Resolution | Accuracy |
| 0.1 to 4.9V | 0.1V | ±(5% Reading +0.1V) |
| 5.0 to 49.5V | 0.5V | ±(5% Reading +0.5V) |
| 50 to 75.0V | 1V | ±(10% Reading +1V) |
| General Features | ||
| Display | OLED, 152 segments 48x39mm | |
| Memory | 300 measurements | |
| Alarm | 3 separate alarms (Ω, V and A) | |
| Power Source | 4x1.5V LR6 (AA) alkaline batteries or 4 NiMH batteries | |
| Battery Life | 12 hours or 1440 30-seconds tests approx | |
| Jaw Opening | 1.38” (35mm) max | |
| Dimensions | 2.16 x 3.74 x 10.31” (55 x 95 x 262mm) | |
| Weight (with Battery) | 2.06 lbs (935g) | |
| Operating Temperature | -4° to +131°F (-20 to +55°C) | |
| Storage Temperature | -22° to +158°F (-30 to +70°C) | |
| Relative Humidity | Up to 90% @ 40°C | |
| Ingress Protection (IP) | IP 40 | |
| EMC | EN 61326-1 | |
| Safety Compliance | IEC 61010-1, EN 61010-2-30, EN 61010-2-32, Pollution Degree 2, 600V CAT IV |
|
User Manuals
Model 6416 - English
Modelos 6416 y 6417 - Español (CA France version)
Model 6416 - French (CA France version)
Datasheets
Brochures
Ground Resistance Testers Brochure
Clamp-on Ground Testers Model 6416 & 6417
Lightning Protection
AEMC® Instruments Product Line Brochure
AEMC® Instruments Product Line Brochure (FR CAN)
Rent Now
Comparison Charts
Application Notes
App-Touch-Step-Potential
App-Touch-Step-Potential_Español
Why Measure Soil Resistivity?
Choosing a Ground Tester
Megohmmeter Calibration Checker and Ground Resistance Checker
Loop Alarm for Clamp-On Ground Testers Models 6416 and 6417
Clamp-on Ground Resistance Testers (6416. 6417, 6418) Usage Guide
Workbooks
Forms
Fall-of-Potential Field Report - PDF
Fall-of-Potential Report - Excel
Soil Resistivity Made Easy - PDF
Ground Testing Nomograph - PDF
Ground Testing Nomograph Example
Stored Measurement Results Form
Slope Method Calculation - Automated way of calculating the S electrode placement when using the slope method.
Calculators
Grounding Electrode Resistance Calculator
Grounding Calculations and Charts - Excel
Slope Method Calculation - Automated way of calculating the S electrode placement when using the slope method
Three Measurement Method
Technical Bulletins
Videos
Model 6416 & 6417 Clamp-On Ground Testers - Introduction
Ground Testers 6416 & 6417 OLED Display
Choosing the Right Ground Resistance Tester
6416-6417 Clamp On - Loop Alarm
Understanding Ground Resistance Testing
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
|
2117.76 | Bag - Small Flat Black Canvas Bag for Ground/Accessories Dimensions: 17 x 6.5 x 2.75" |
$41.00 |
|
|
|
2119.48 | Multi-purpose Canvas Pouch for Ground Testers Models (6416-17), Clamp-on Meters Models (203, 401, 403-404, 601, 603), Power Meters Models (205, 405, 407, 605, 606-7), and Discontinued Models (3710-3731, 8220-30) Dimensions: (11 x 5 x 2.25) in |
$40.00 |
|
|
|
2135.47 | Replacement wrist strap for Ground Tester Models 3710-3731, 6416-6418 | $11.00 |
|
|
|

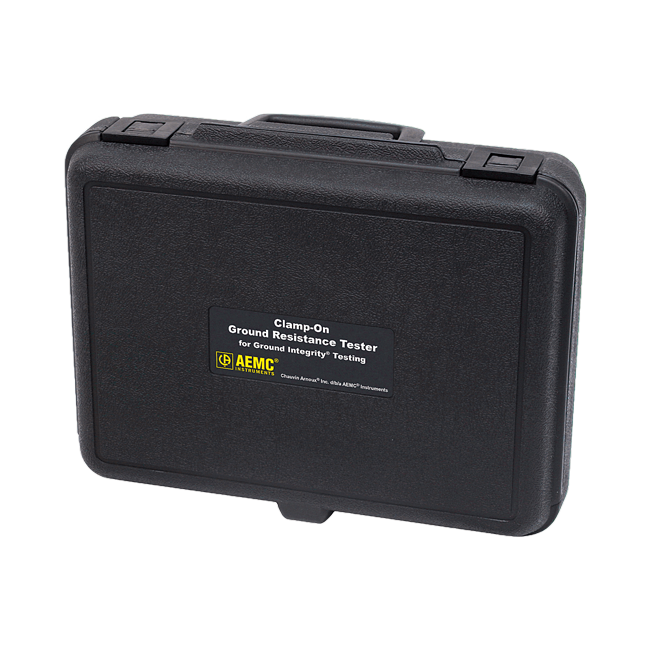

2141.50 | Case - Replacement, ABS w/slot for Models 3710-3731, 6416 & 6417
