Power & Energy Logger Model PEL 102

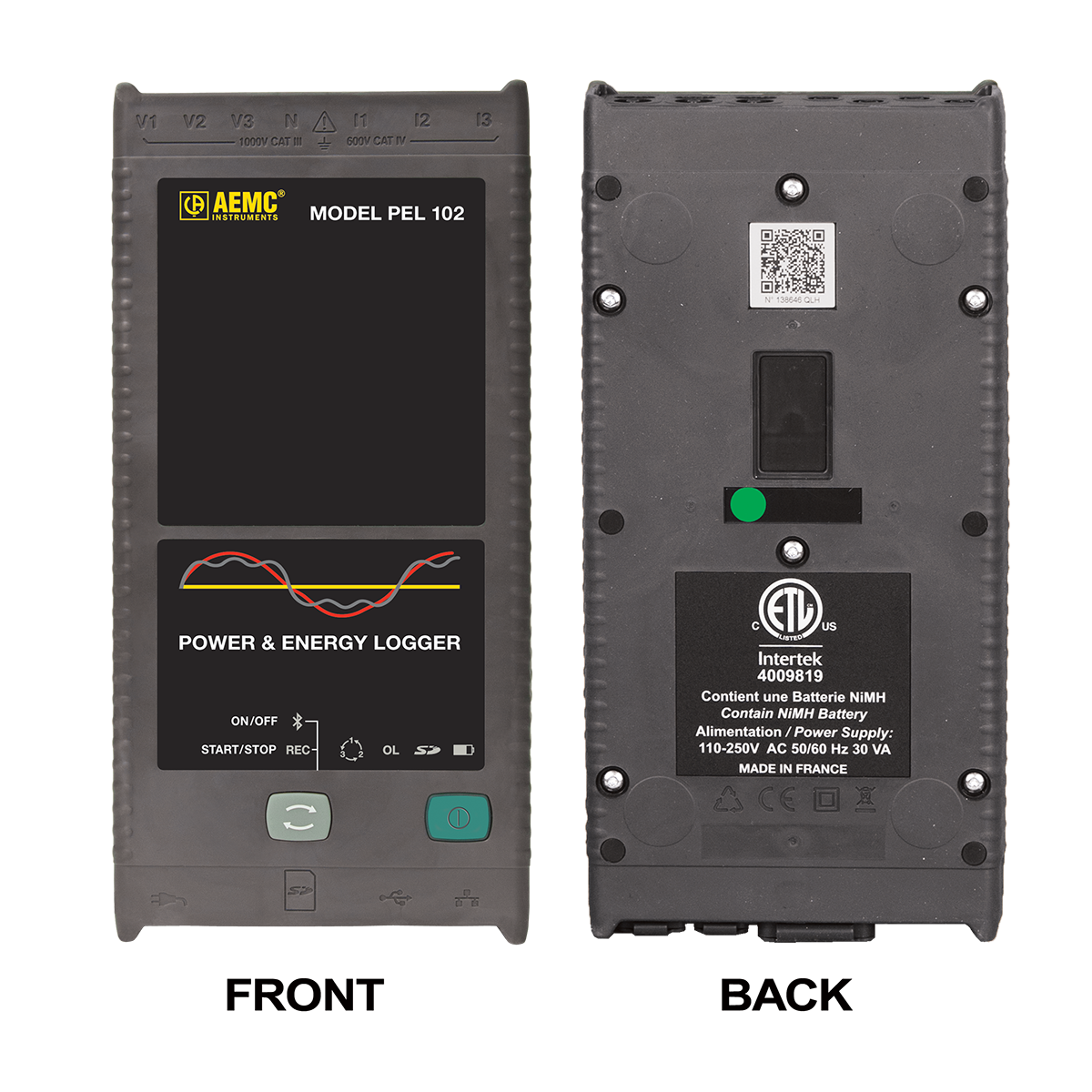

The PEL 102 is a low cost, simple to use, one, two (split phase) and three phase (Y, Δ) power/energy data logger. This product is ideal for electricians, engineers and contractors doing work in the area of building and system monitoring and upgrades, as well as residential and overall energy audits. All vital energy data is easily measured, recorded, and analyzed. Reports can be generated with confidence with minimal configuration time and effort (Standard and Customizable Reports supplied).

The instrument’s design enables it to be installed inside a load center panel (including the current sensors) allowing the door to close on most panels. The PEL 100 series offers all the essential functions for logging power/energy data from most electrical power networks in use today across the world (17 network set-ups provided). The PEL 100 series energy loggers measure and record three True RMS voltage inputs and current inputs, Watts, VARS, VA and Energy (kWh and kVA). Power Factor (PF), Displacement Power Factor (DPF), Crest Factor, Frequency and THD are calculated and recorded as well. Individual harmonic % information from 1 to the 50th harmonic are recorded at the operator’s choice. All variables are recorded and stored at a one second interval and on user selectable demand intervals from 1 to 60 minutes.

The PEL Family of Loggers Android Application

Download the Chauvin Arnoux® PEL Android application to remotely configure and see measurements of your PEL instruments in real time on an Android device.


NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
PEL 102 2137.51 Power & Energy Logger Model PEL 102 (No LCD, w/3 MA193-10-BK Sensors) $2,265.00 In stock at factory. Find a Distributor
PEL 102 2137.61 Power & Energy Logger Model PEL 102 (No LCD, No Sensors) $1,740.00 Consult Factory for Availability
ModelPEL 102
Cat. #2137.51
DescriptionPower & Energy Logger Model PEL 102 (No LCD, w/3 MA193-10-BK Sensors)
List Price$2,265.00
In stock at factory. Find a Distributor
ModelPEL 102
Cat. #2137.61
DescriptionPower & Energy Logger Model PEL 102 (No LCD, No Sensors)
List Price$1,740.00
Consult Factory for Availability

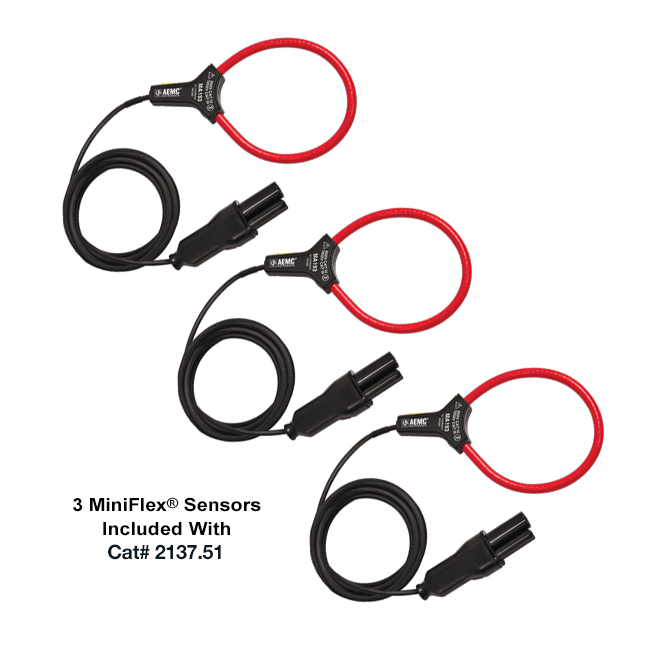

Model PEL 102 - Cat. #2137.51 (LCD, with sensors): Includes small classic tool bag, (3) MiniFlex® MA193-10-BK sensors, 5 ft USB cable, (4) black test leads and alligator clips, 5 ft 115V power cord, (12) color-coded ID markers, safety and compliance sheets, 8 GB SD-Card with USB-SD-Card reader, printed Quick Start Guide, and USB drive with DataView® software and a user manual.

Model PEL 102 - Cat. #2137.61 (LCD, without sensors): Includes small classic tool bag, no, 5 ft USB cable, (4) black test leads and alligator clips, 5 ft 115V power cord, (12) color-coded ID markers, safety and compliance sheets, 8 GB SD-Card with USB-SD-Card reader, printed Quick Start Guide, and USB drive with DataView® software and a user manual.

Print
Inputs  3 Voltage / 3 Current: calculation of neutral current
Sample Rate 128 per Cycle 6.4kHz at 50Hz 7.68kHz at 60Hz
Specification Range Measurement Range Resolution Accuracy (Typical)
Volt
Vrms 1000V P to N 10  to 1000V 0.1V ±0.2% Rdg + 0.2V
Urms 1000V P to P 17 to 1700V 0.1V ±0.2% Rdg + 0.4V
Amps @ 50 and 60Hz
Amps (1V nominal)
(excluding clamp accuracy
Probe dependent 0.2%< I < 120% Inom Probe dependent ±0.2% Rdg + 0.02% Inom
AmpFlex & MiniFlex
(including sensor accuracy)
Range 100A
Range 400A
Range 2kA
Range 10kA
200mA to 120A
5 to 440A
50 to 2400A
400A to 12kA
1mA
0.1A
0.1A & 1A
1A
±1.2% Rdg + 50mA
±1.2% Rdg + 0.2A
±1.2% Rdg + 1A
±1.2% Rdg + 5A
Frequency   42.5 to 69Hz 0.01Hz ±0.1Hz
Power
Watts (VA, var) P-Q-S 10W to 10GW / 10var to 10Gvar / 10VA to 10GVA 4 digits min ±0.5% Rdg + 0.005% Pnom
Power Factor (Cos Φ/DPF) -1  to 1 0.001 ±0.05
Energy
kWh (kVAh, kvarh) P-Q-S Up to 4EWh / 4Evarh / 4 EVAh (E = 1018 ) ±0.5% Rdg
Harmonics DC, 1 to 50
Volts & Amp %   0.01 to 655.0% 0.01% ±1% Rdg from 1 to 25
THD   0.00 to 655.0% 0.01% ±1% Rdg
General Features
Case Design Rugged, shock proof with integrated protective holster, IP54 not included terminals. Shock and vibration IEC61010

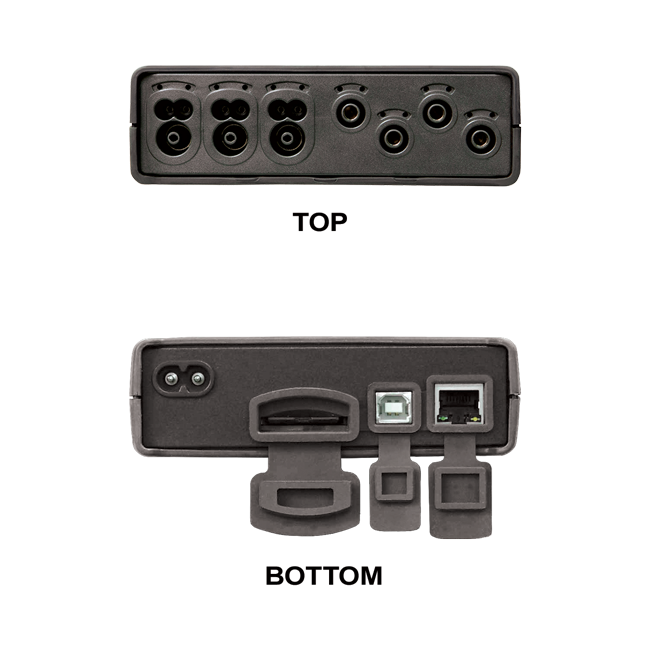

Interface Isolated USB, Bluetooth, and Ethernet, SD card for direct transfer to PC. Dataview software for real time data, configuration and reporting included
Memory 8GB SD card (SDHC compliant, FAT32 formatted)  32GB max
Display None
Real-Time Clock Time and date stamp for Trend mode
Power AC 110V/230V 50/60Hz 15VA; Battery backup when power OFF, 60 minutes typical
Dimensions
(L x W x H)
10.08 x 4.92 x 1.46” (256 x 125 x 37mm)
Weight 2.2 lbs (1kg)
Altitude Operating 2000m (6560ft)
Operating Temperature 32° to 108.5°F; (0° to +42.5°C) from 10 to 85% RH
Storage Temperature -4° to 122°F; (-20° to +50°C) from 0 to 75% RH with battery pack
Electro-Magnetic-Compatibility (EMC) EN 61326-1 for emission and immunity
IP Rating IP54 per IEC 60529
Safety IEC/EN 61010-1 (1000V CAT III-600V CAT IV), IEC 1326-1

User Manuals

Quick Start Guides

Datasheets

Brochures

Comparison Charts
